Transmission Identification

Transmission identification
The 5-speed manual transmission 02J is installed in the New Beetle from 1998 in conjunction with 4-cylinder engines.





Location on transmission

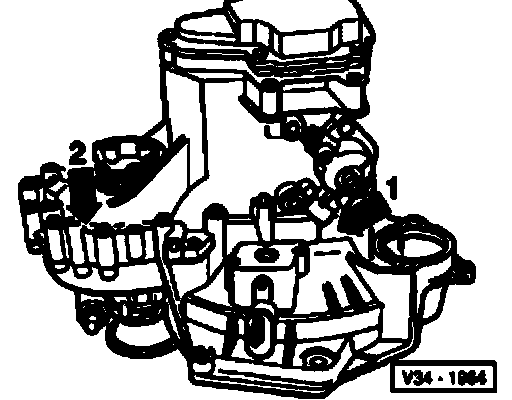

Code letters and date of manufacture (arrow 1) manual transmission 02J (arrow 2)

Manual transmission 02J (arrow-2-)

Part 1:

Part 2:

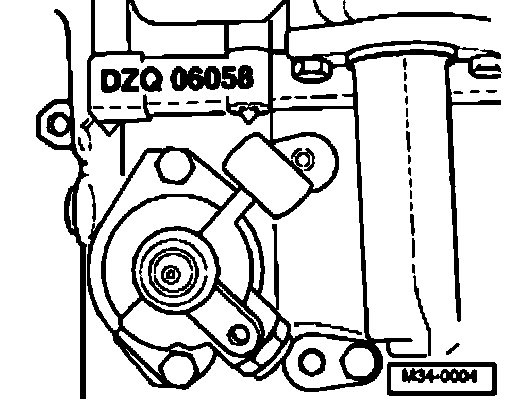

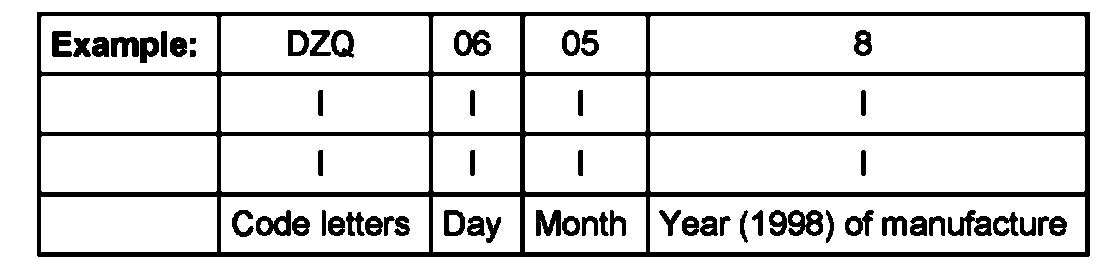

Code letters and date of manufacture of transmission

Additional data depends on manufacture.

Note: The transmission code letters are also shown on the vehicle identification plates.
