Code Letters, Transmission Application, Ratios, Capacities

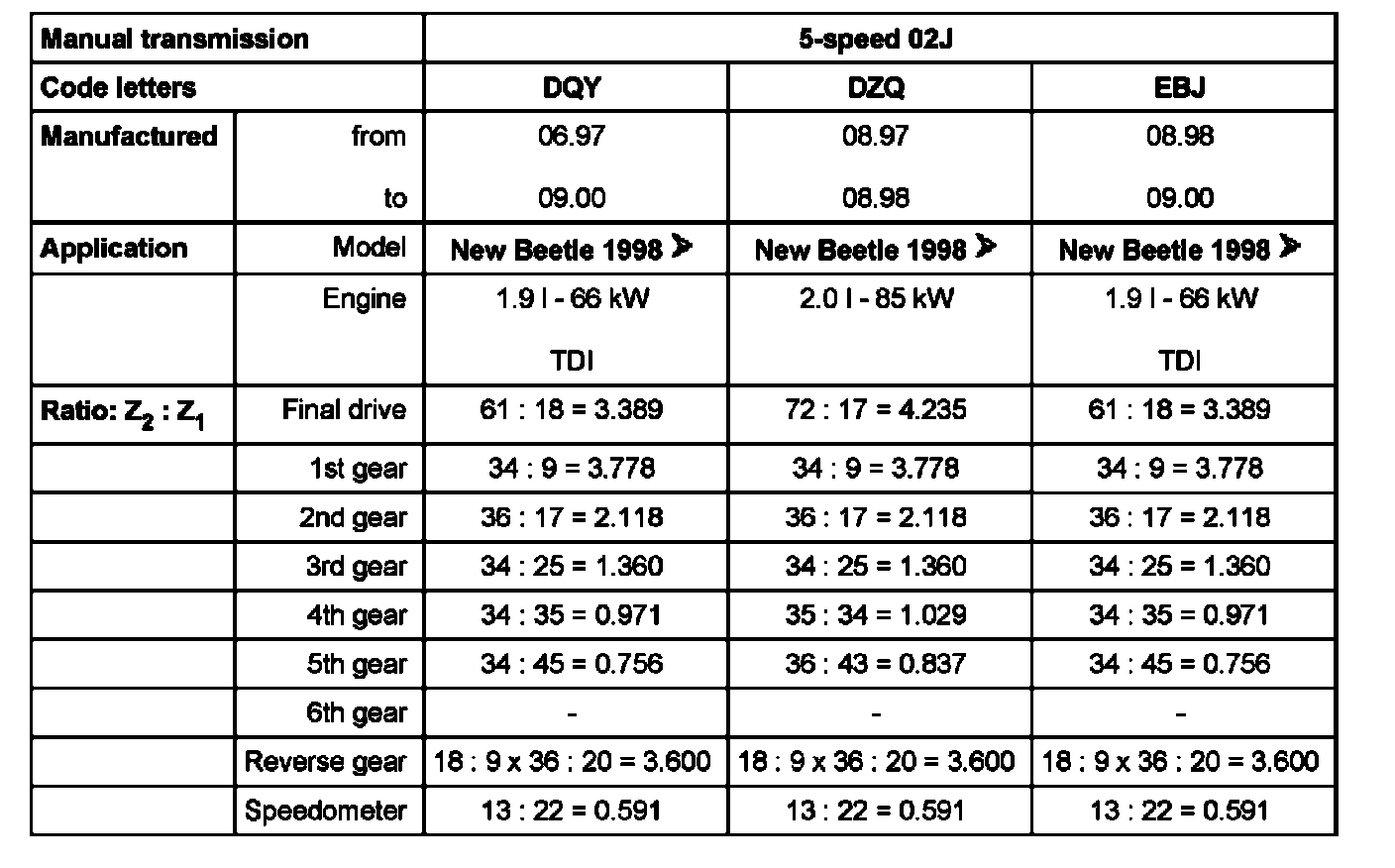

Code letters, transmission application, ratios, capacities

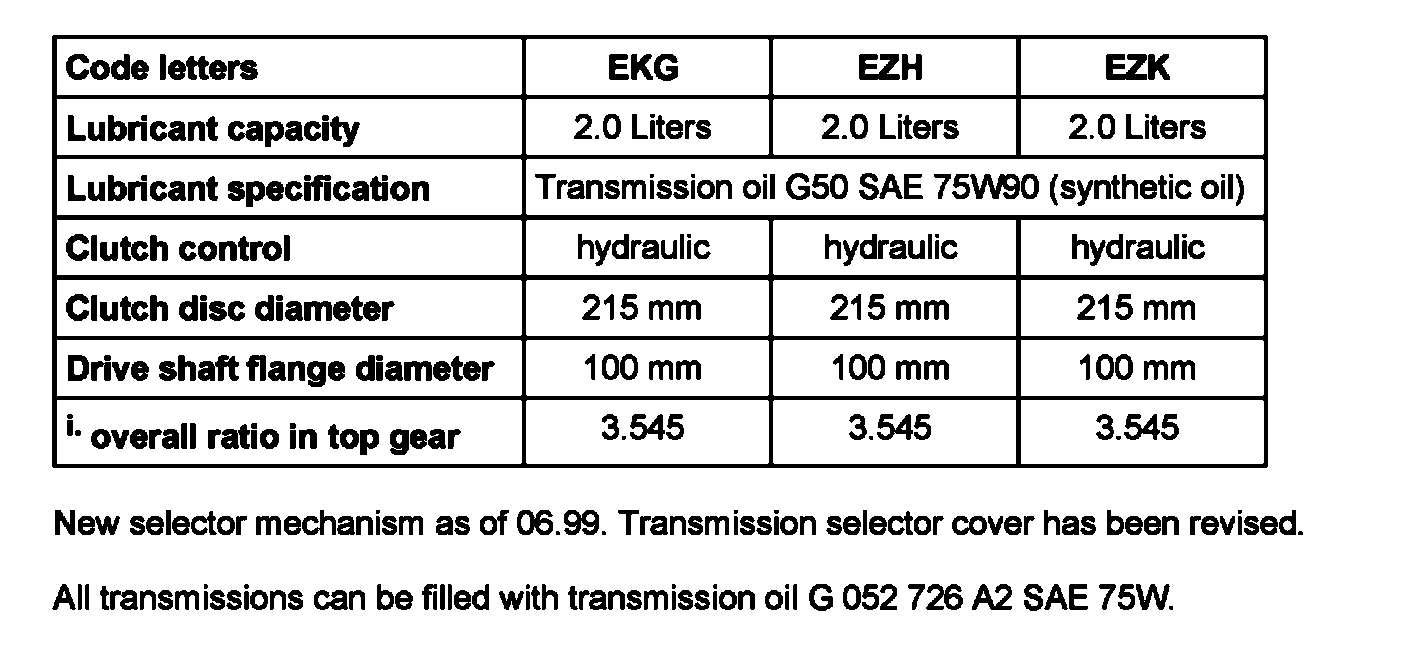

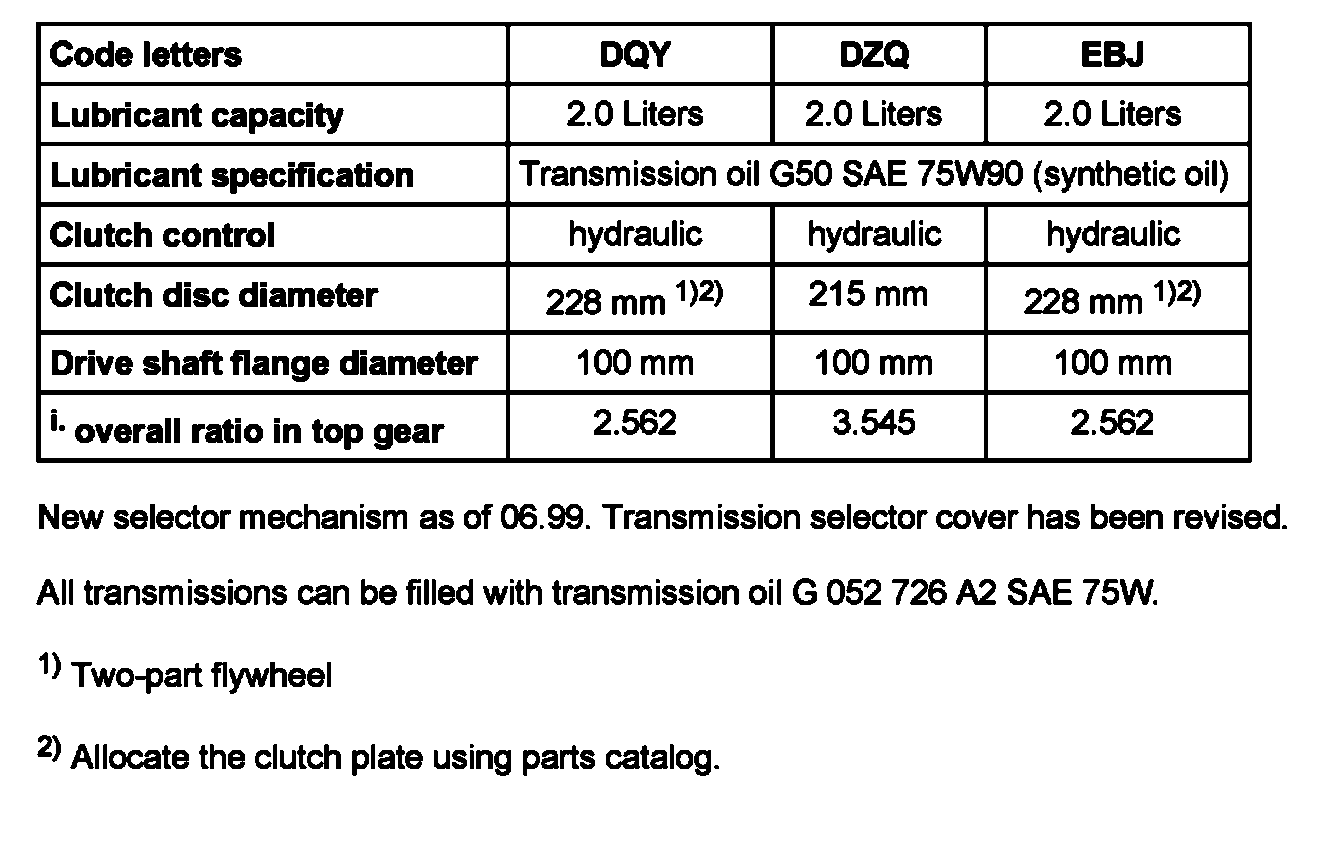

New selector mechanism as of 06.99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.
1) Two-part flywheel
2) Allocate the clutch plate using parts catalog.

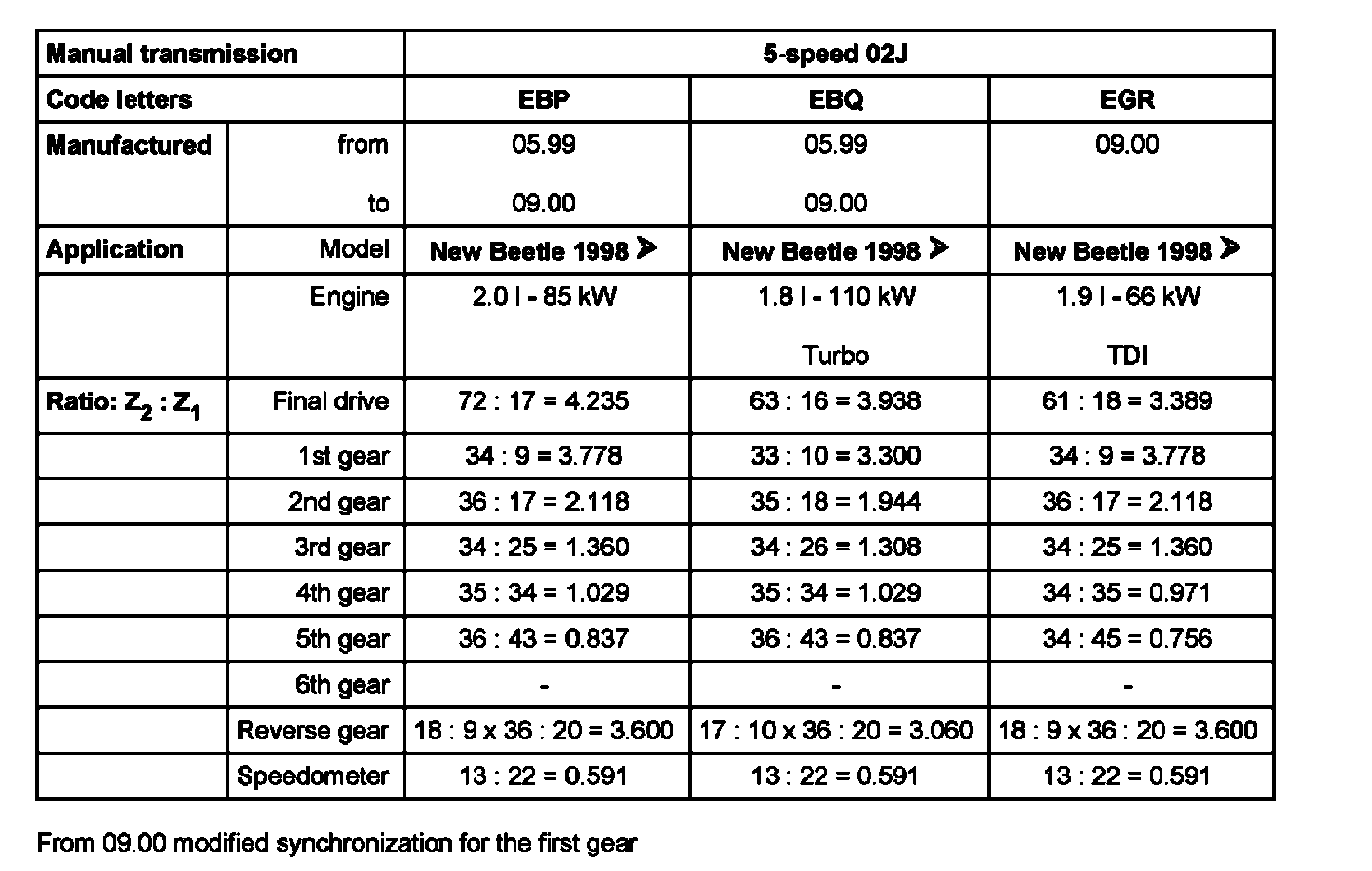

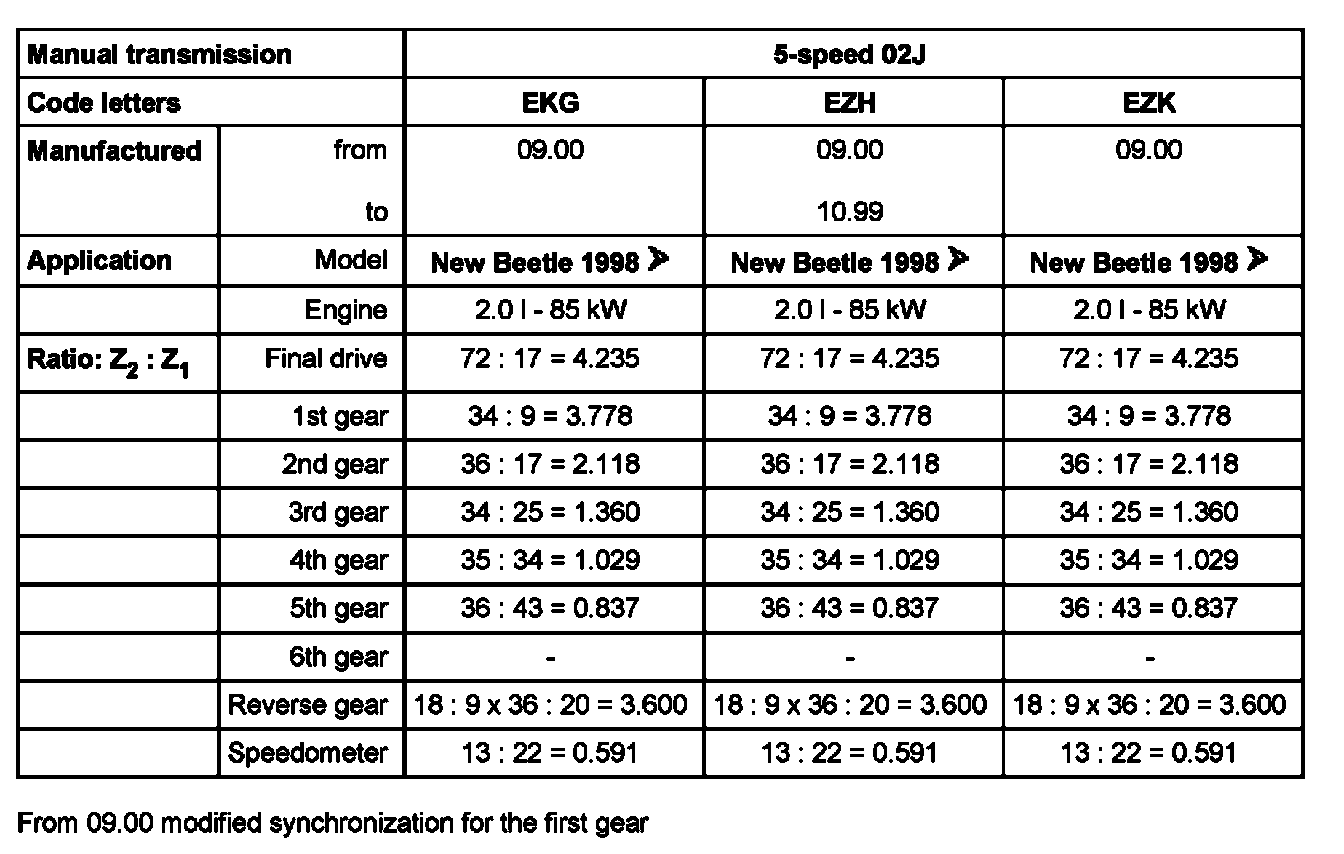

From 09 00 modified synchronization for the first gear

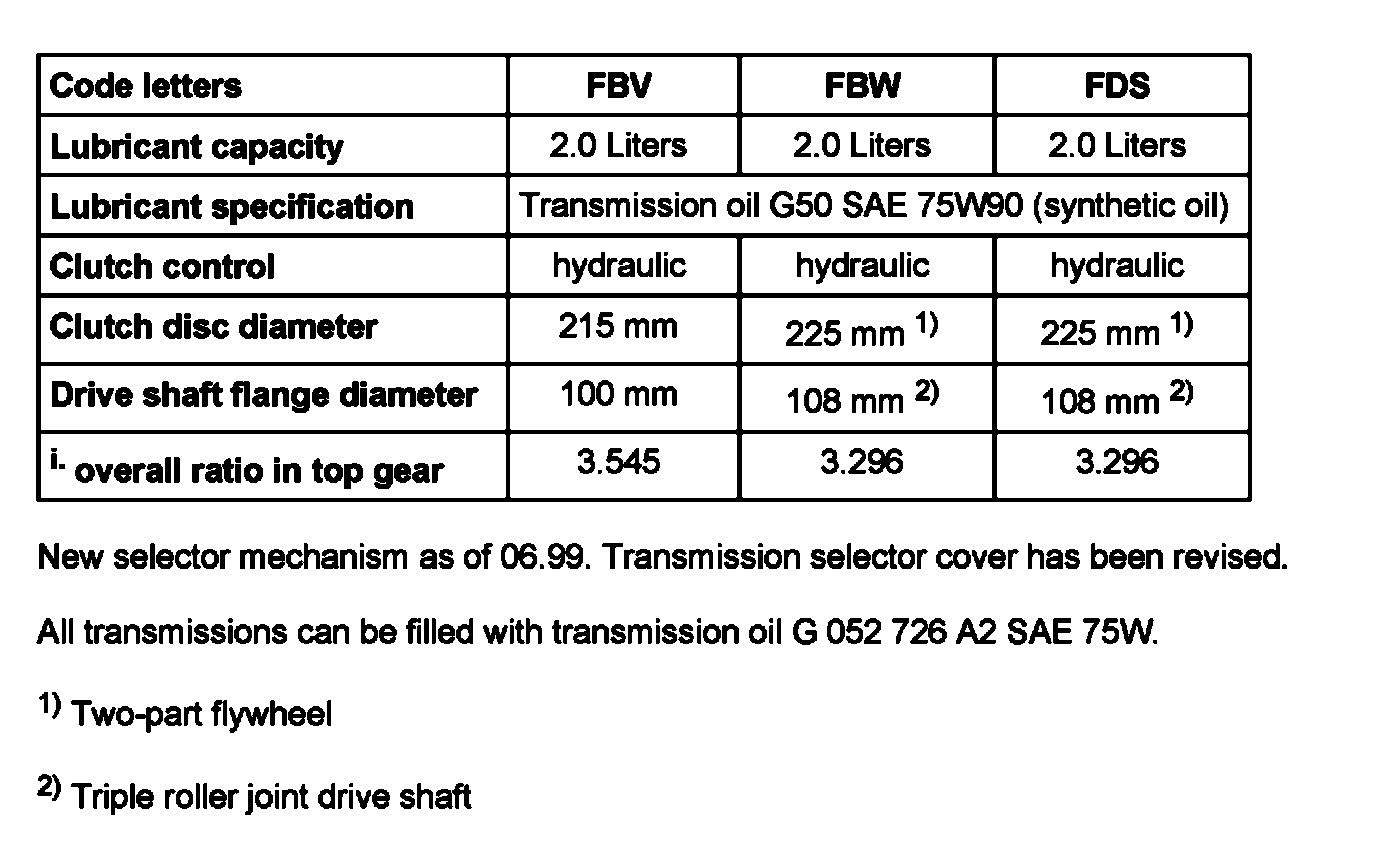

New selector mechanism as of 06.99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.
1) Two-part flywheel
2) Triple roller joint drive shaft

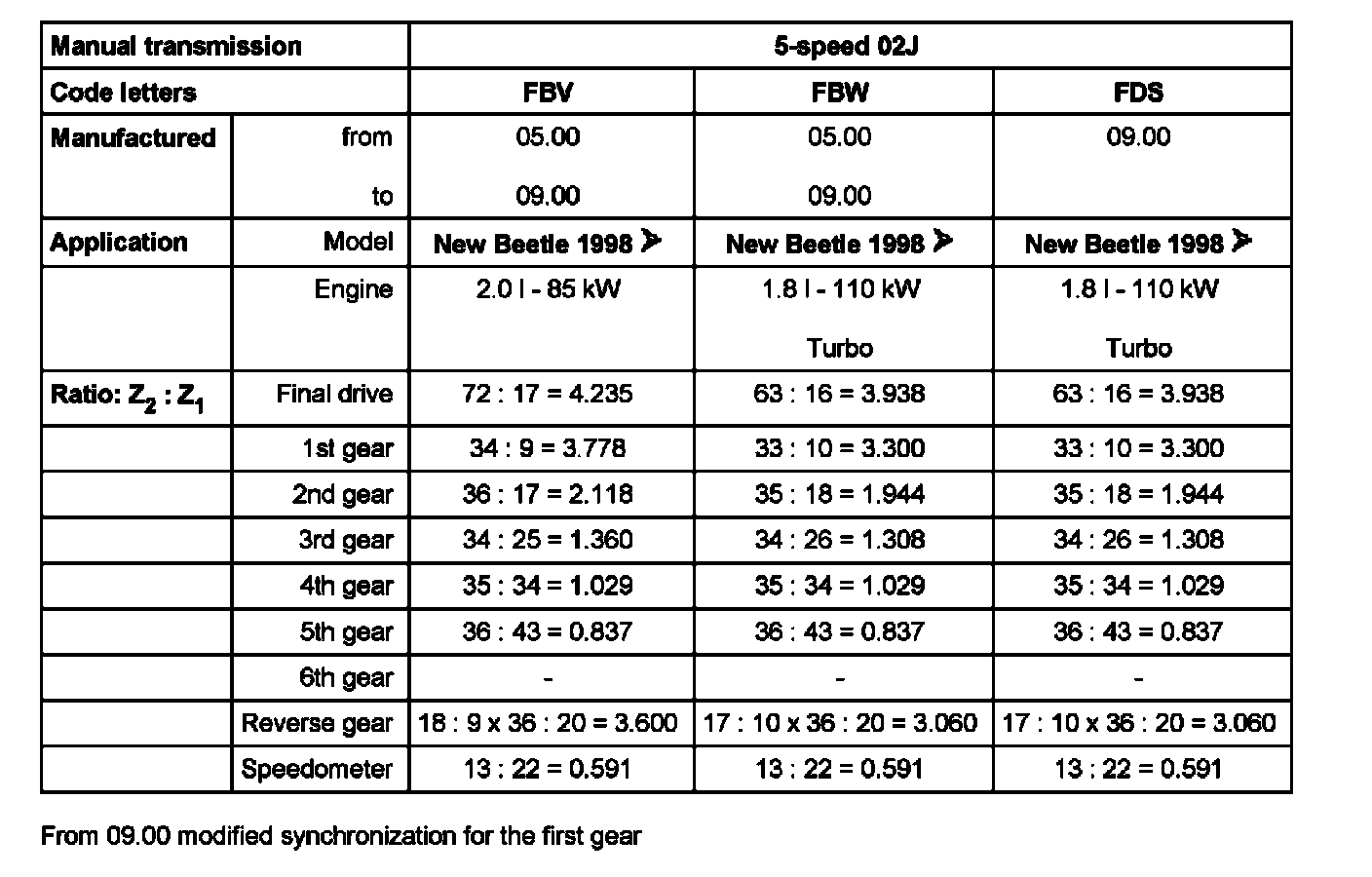

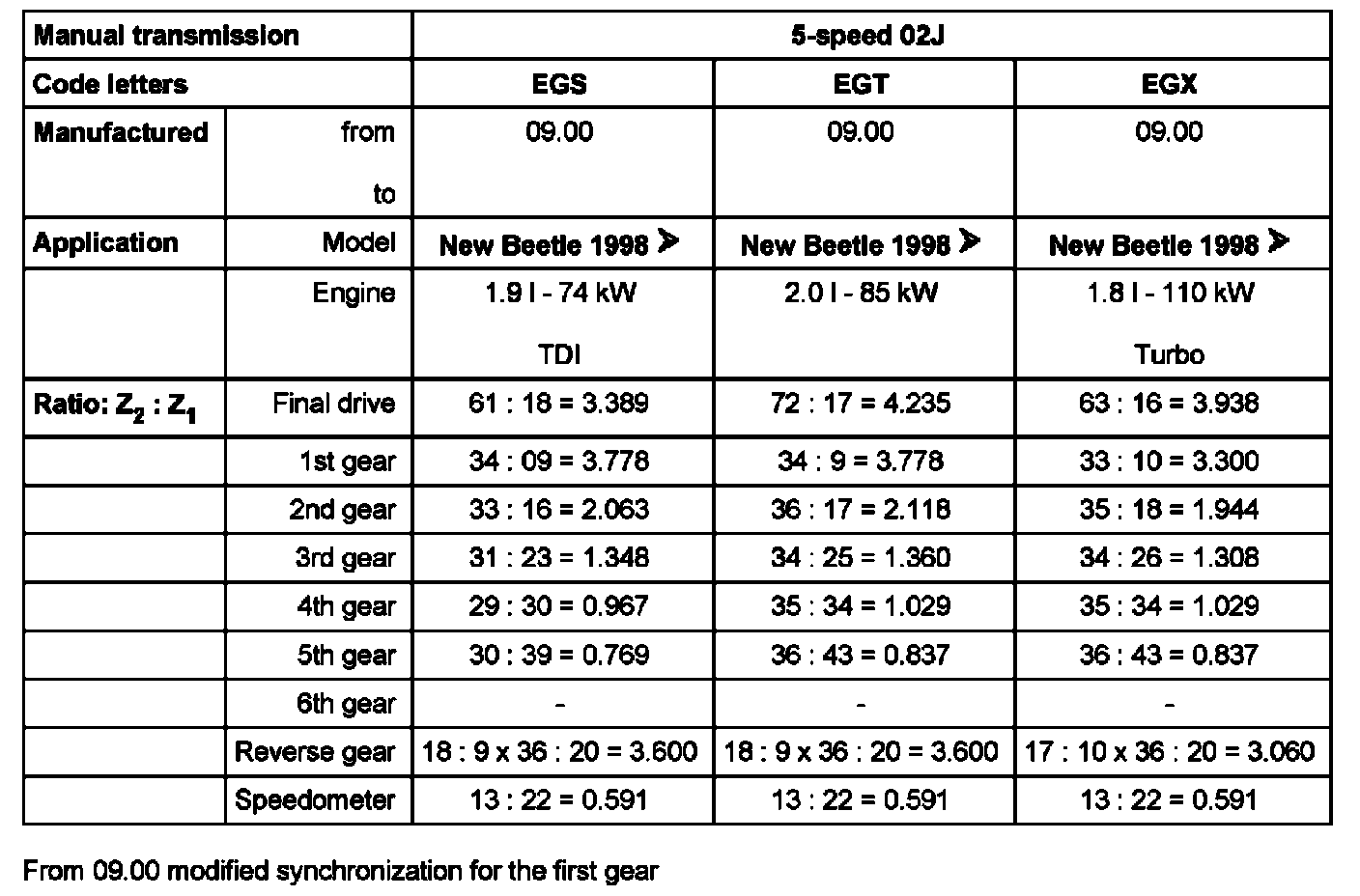

From 09 00 modified synchronization for the first gear

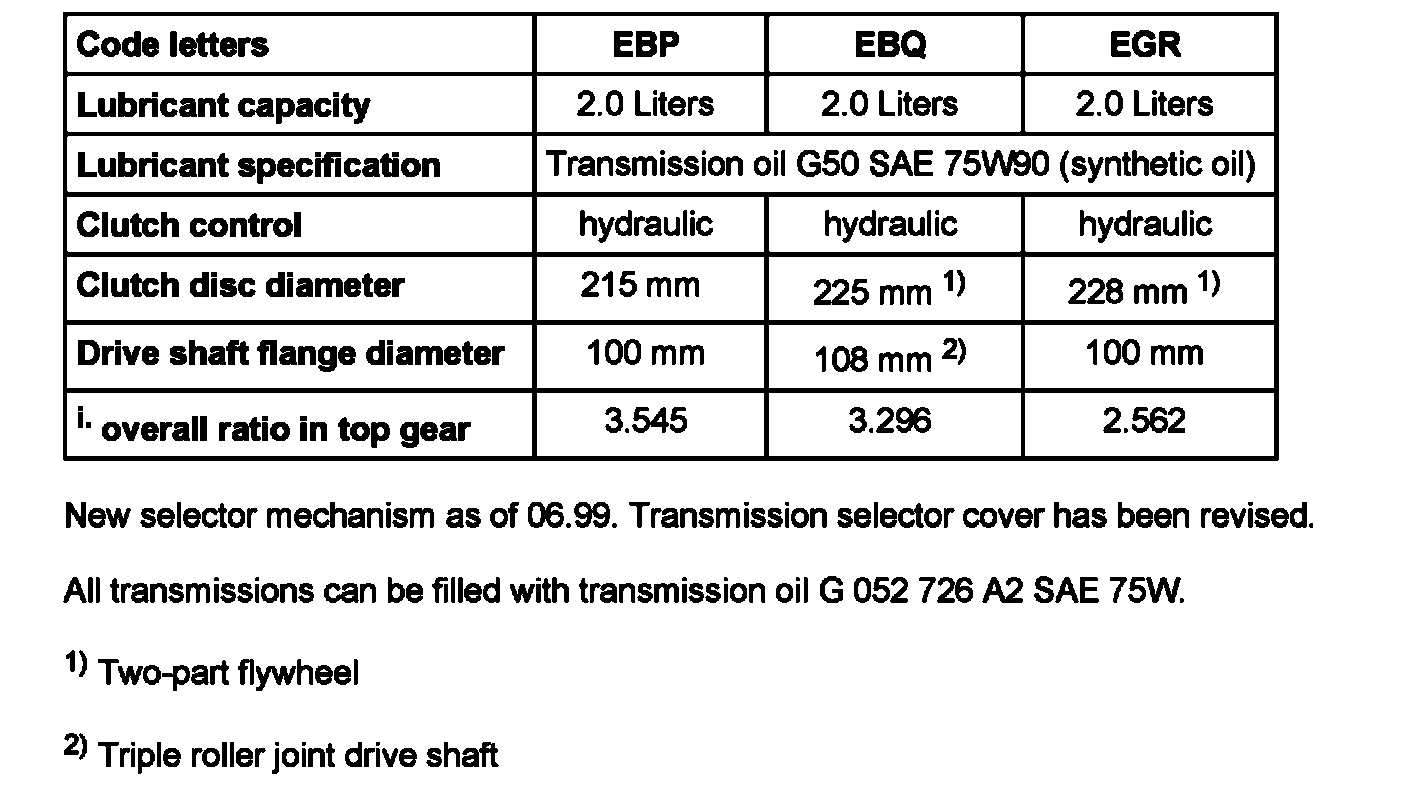

New selector mechanism as of 06.99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.
1) Two-part flywheel
2) Triple roller joint drive shaft





From 09 00 modified synchronization for the first gear

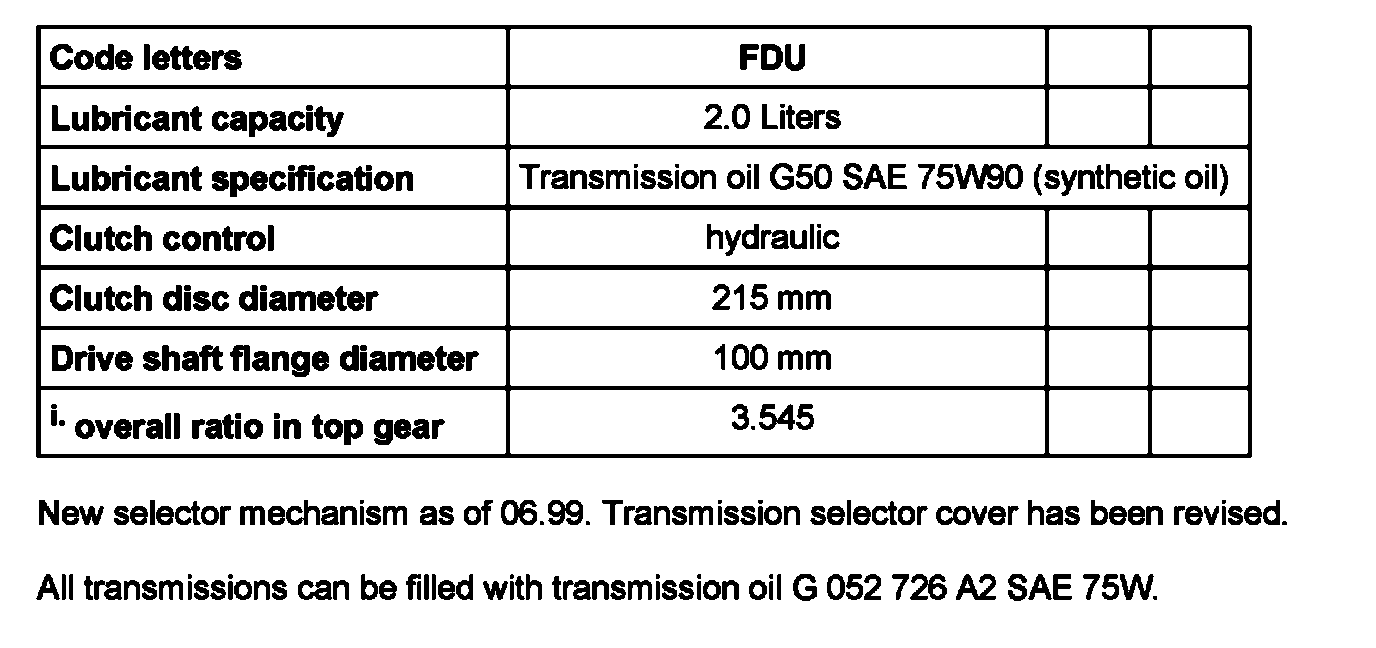

New selector mechanism as of 06 99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.

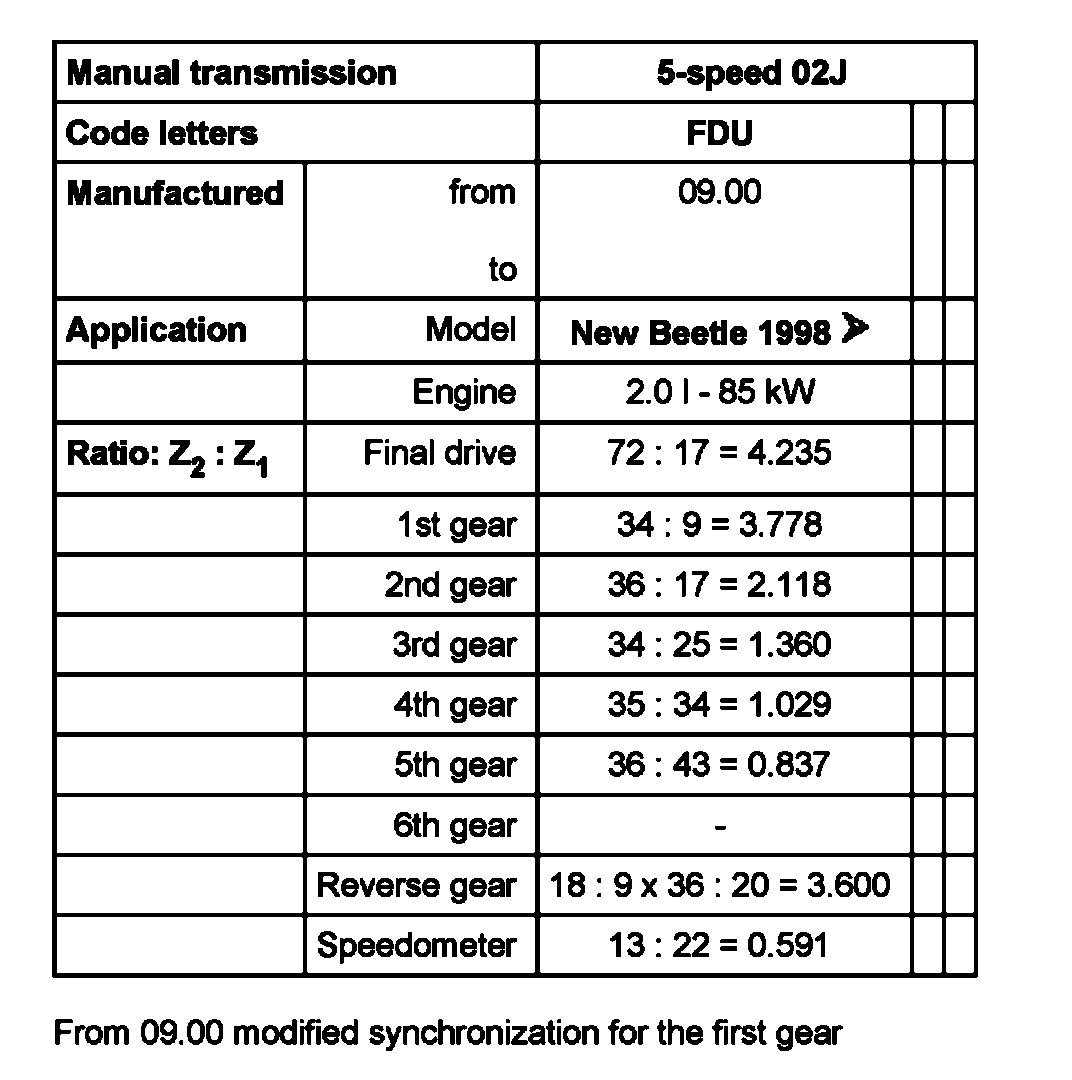

From 09 00 modified synchronization for the first gear

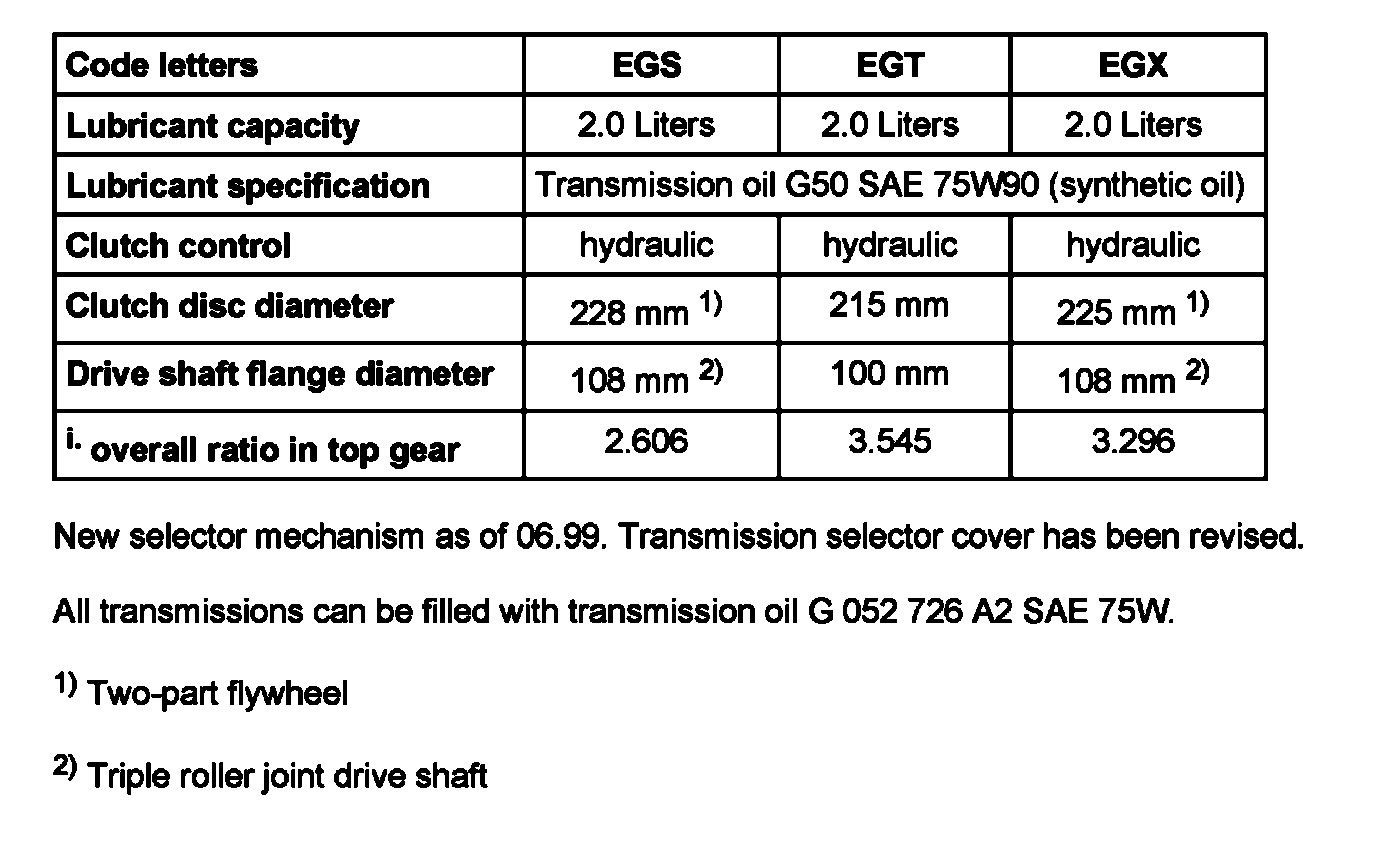

New selector mechanism as of 06.99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.
1) Two-part flywheel
2) Triple roller joint drive shaft





From 09 00 modified synchronization for the first gear





New selector mechanism as of 06 99. Transmission selector cover has been revised.
All transmissions can be filled with transmission oil G 052 726 A2 SAE 75W.
