Clutch System, Bleeding

Clutch system, bleeding

Special tools and equipment

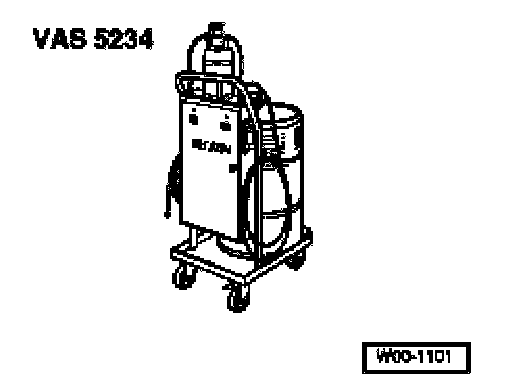

^ Filling and bleeding apparatus for brakes VAS 5234 brake filler and bleeder unit
^ Bleed hose V.A.G 1238/B 3 - of 670 mm.
Brake fluid specification:
Refer to Clutch Fluid / Specifications / Fluid types
^ Connect bleed hose to collecting bottle on brake bleeding apparatus.

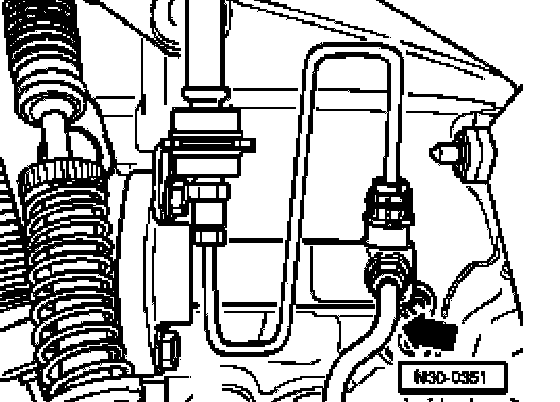

^ Fit bleed hose -arrow- to clutch master cylinder and open bleeder valve.
^ After finishing bleeding process, depress clutch pedal several times.
