Clutch Release Mechanism, Servicing

Clutch release mechanism, servicing

Special tools and equipment

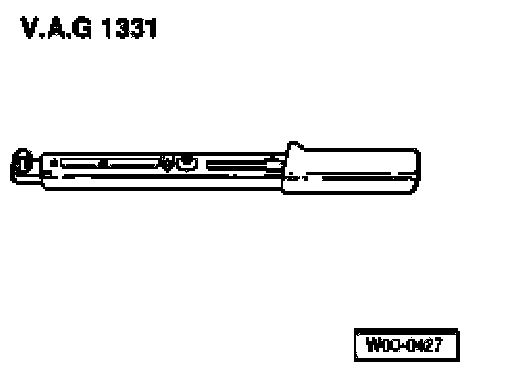

^ V.A.G 1331 Torque wrench or equivalent

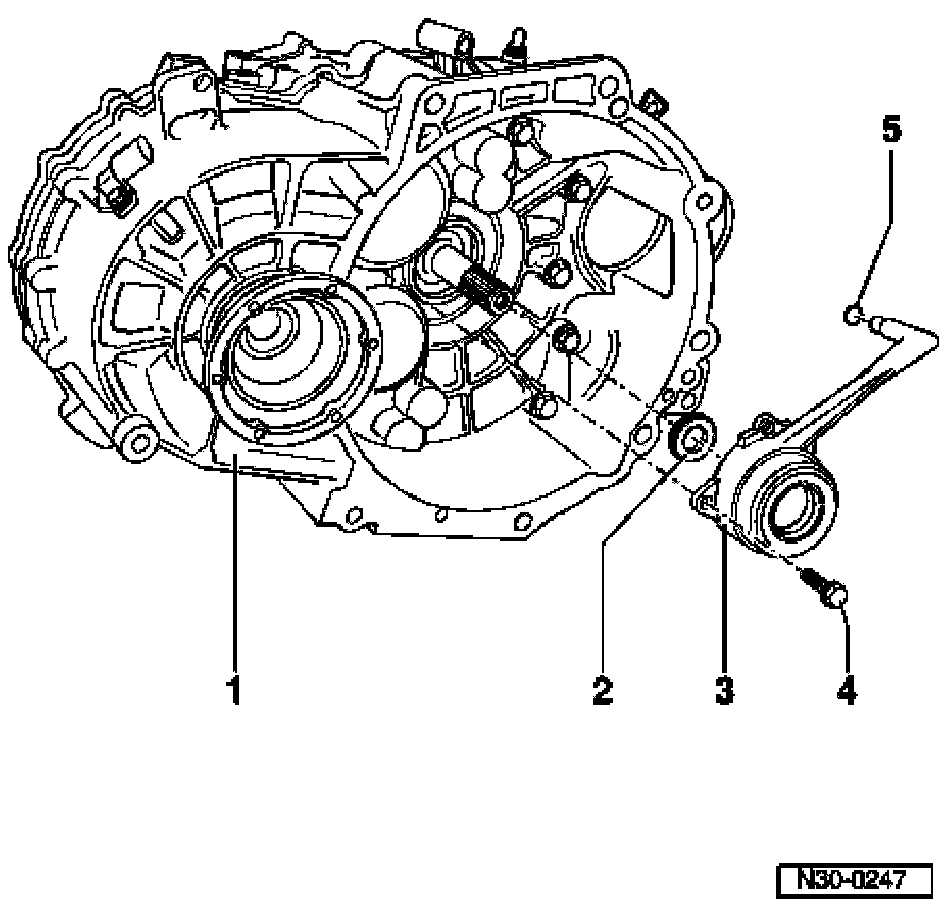

1- Transmission
2- Input shaft oil seal
3- Slave cylinder with release bearing
- One unit; can only be replaced together
- Do not wash out bearing, only wipe
- Replace noisy bearings together with slave cylinder
4- Bolt, 12 Nm
- Qty 3
5- Seal
- Pull onto pipe/hose connection
- Insert with brake fluid
