Clutch Pedal, Removing and Installing

5 Speed Manual 02J

Clutch Pedal, Removing and Installing

Special tools

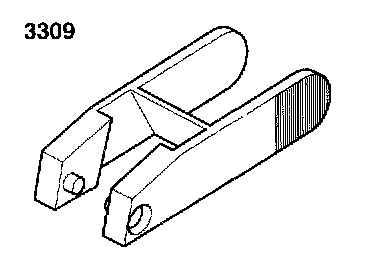

- 3309 Release tool

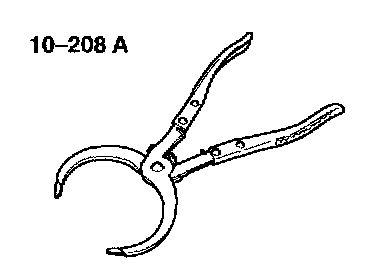

- 10-208 A Pliers

Removing

- Remove over-center spring.
- Remove clutch pedal switch, if part of orignal equipment.
- Separate clutch pedal from master cylinder and push operating rod toward engine compartment until stop.

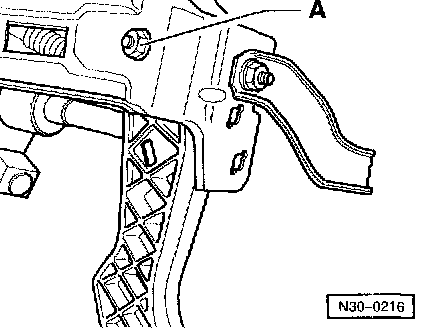

- Remove nut -A-.
- Pull bolt out until clutch pedal can be removed.

Installing

Install the clutch pedal in the reverse order of removal and note the following:

- Install over-center spring.

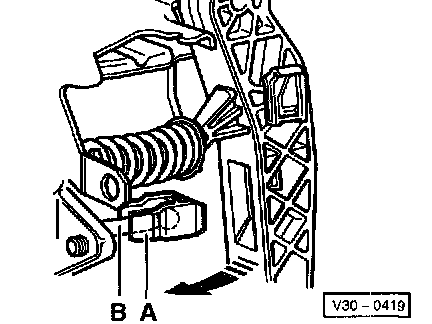

- Install retainer -A- to master cylinder operating rod -B-.
- Press clutch pedal in direction of arrow to engage. Ensure correct location.
- Fill brake fluid reservoir to MAX with brake fluid.
- Bleed clutch system when fluid level has dropped below "MIN" mark.
