Pedal Assembly, Overview

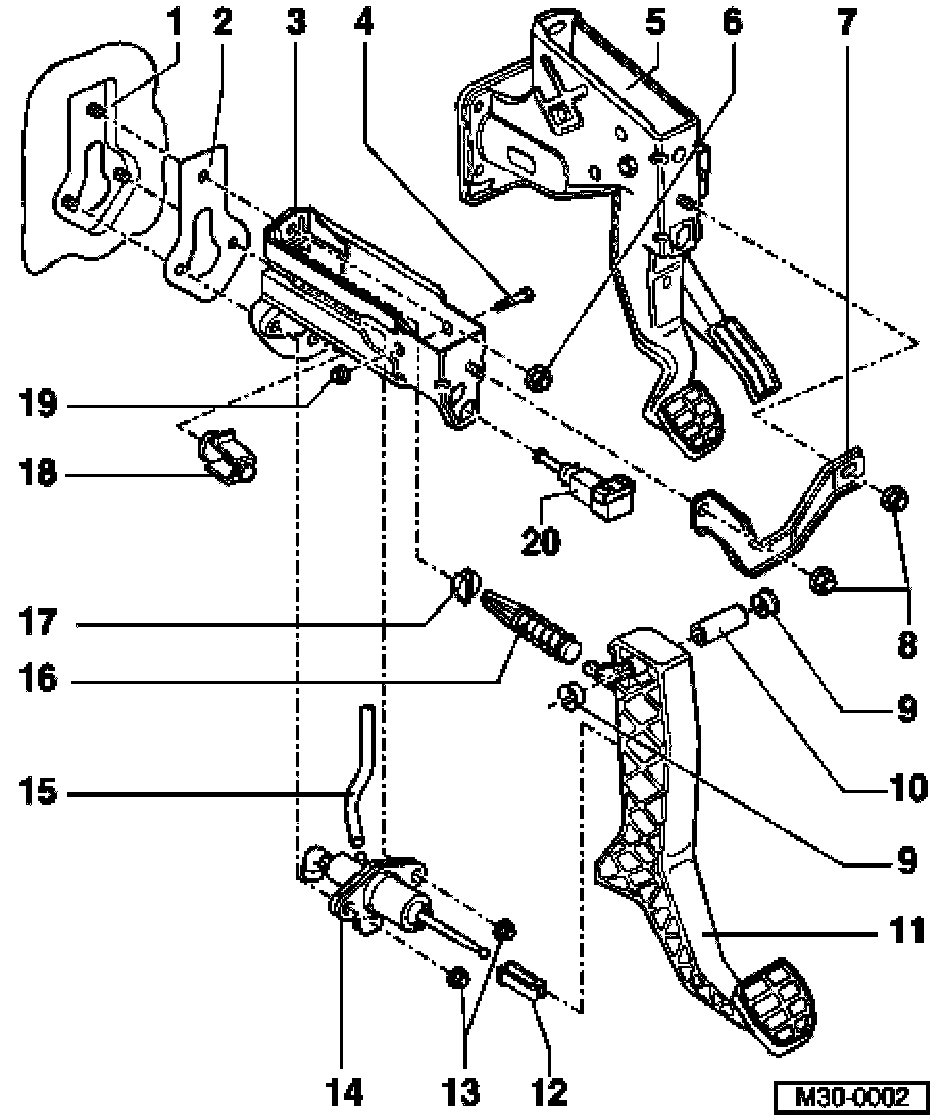

Pedal assembly, overview
1- Bulkhead
- With support and clutch master cylinder housing
2- Gasket
- Always replace
3- Support
- For clutch pedal housing
4- Screw
5- Support
- For accelerator and brake pedal housing
6- Hex nut, self-locking 25 Nm
- Always replace
7- Connecting plate
8- Hex nut, self-locking 25 Nm
- Always replace
9- Bearing socket
10- Mounting pin
11- Clutch pedal
12- Bearing bracket
13- Hex nut, self-locking 25 Nm
- Always replace
14- Clutch master cylinder
15- Circulation hose
16- Overcenter spring
17- Overcenter spring seating
- Fit into support
- To replace, remove and install clutch master cylinder
18- Stop flange
- For clutch pedal
19- Hex nut, self-locking 25 Nm
- Always replace
20- Clutch pedal switch
- Remove with left turn of 90° and pull out from support
- Install in support and turn right 90°
