Valve Body, Assembly Overview

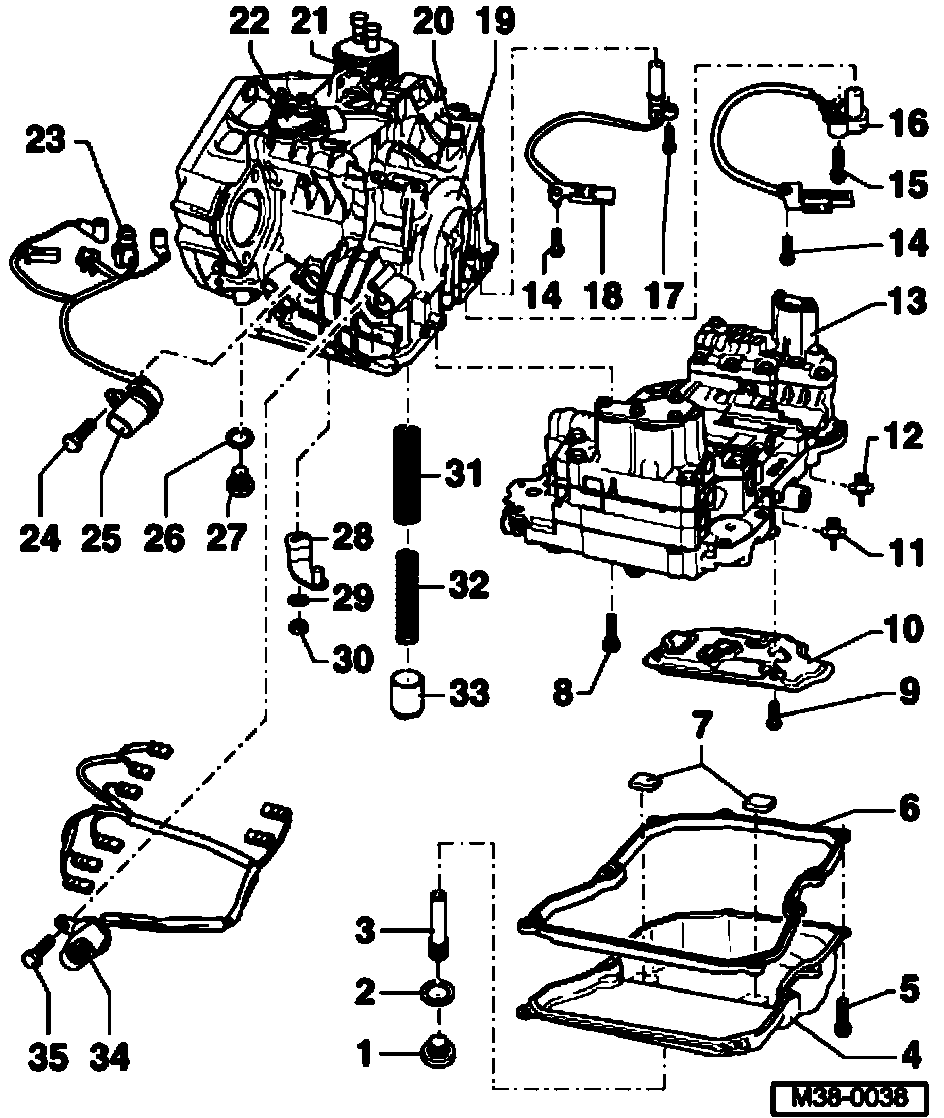

Valve body, assembly overview





1. ATF control plug, 27 Nm
2. Oil seal
^ Always replace
3. Overflow pipe, 2 Nm
4. Oil pan
5. Bolt, 7 Nm
^ Tighten oil pan bolts in several stages and using alternate and cross-over sequence
6. Seal
^ Always replace
7. Magnet
^ Qty. 2, in webs of oil pan.
^ Clean before installing.
8. Bolt, 8 Nm + 90° (1/4 turn)
9. Bolt, 11 Nm
^ Qty.3
^ For securing oil strainer to valve body.
10. Oil strainer
11. Sender 1 for hydraulic pressure -G193
12. Sender 2 for hydraulic pressure -G194
13. Valve body
14. Bolt, 7 Nm
15. Bolt, 6 Nm
16. Sensor for transmission RPM -G182
17. Bolt, 7 Nm
18. Sender for transmission output RPM -G195
19. Transmission housing
20. Breather cap
21. ATF cooler
22. Multi-function Transmission Range (TR) switch -F125
23. Transmission fluid temperature sensor -G93
^ Integrated into wiring harness item -25-
24. Bolt, 6 Nm
25. Wiring harness with 8-pin connector.
26. Oil seal
^ Always replace
27. ATF drain plug, 40 Nm
28. Selector lever
29. Washer
30. Nut, 10 Nm
31. Large spring
32. Small spring
33. Damper piston
34. Wiring harness with 14-pin connector.
35. Bolt, 6 Nm

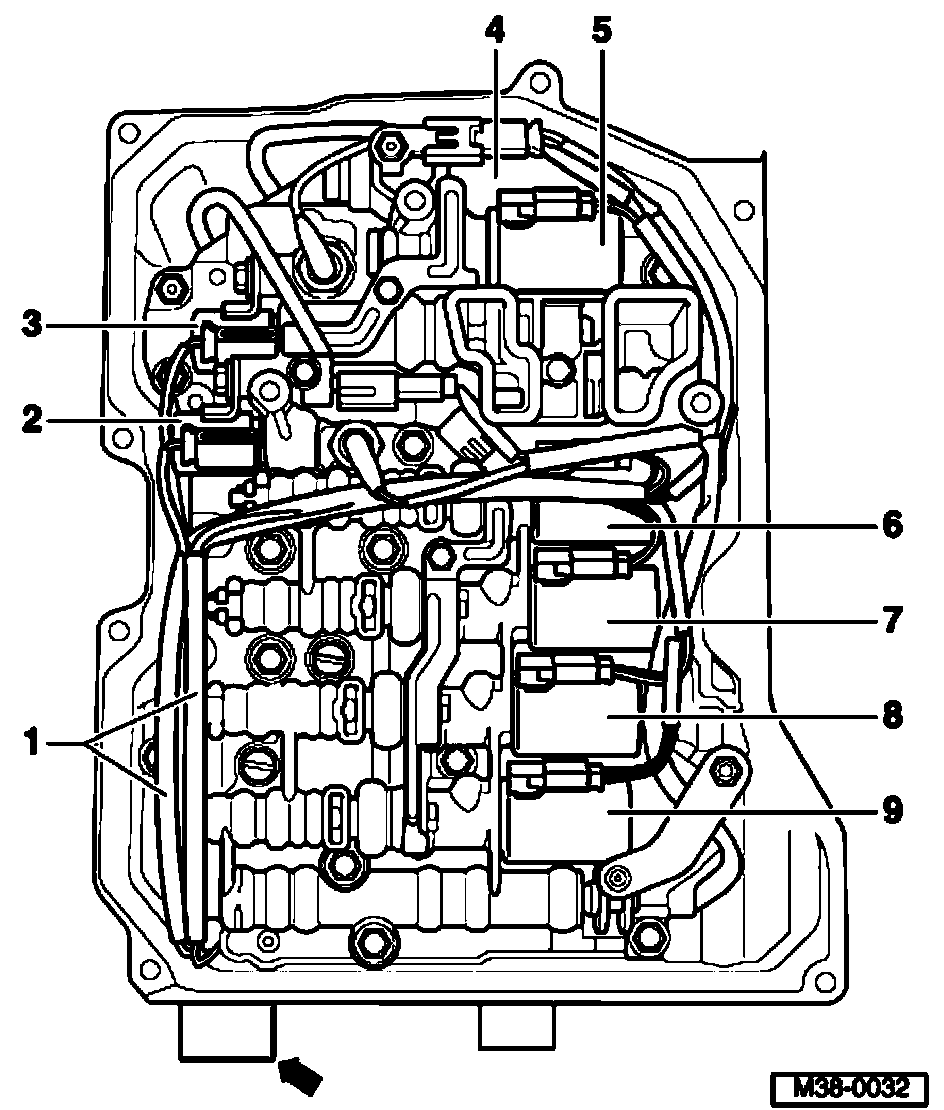

Identification of solenoid valves
1. Wiring harness with 14-pin connector (arrow) for solenoid valves
2. Solenoid valve 1 -N88
3. Solenoid valve 2 -N89
4. Solenoid valve 4 -N91
5. Solenoid valve 6 -N93
6. Solenoid valve 5 -N92
7. Solenoid valve 9 -N218
8. Solenoid valve 10 -N371
9. Solenoid valve 3 -N233

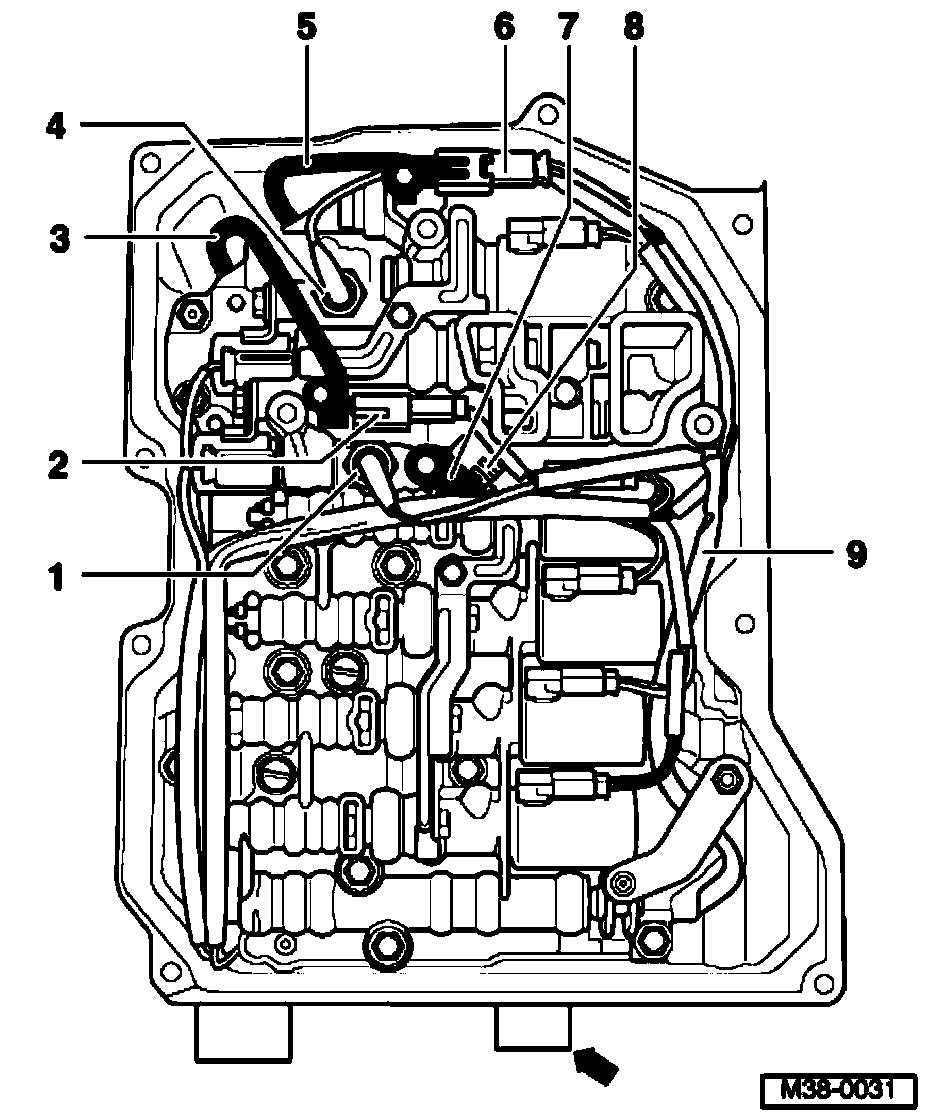

Identification of sensors
1. Sender 1 for hydraulic pressure -G193
2. Connection to Sensor for transmission RPM -G182
3. Wiring on Sensor for transmission RPM -G182
4. Sender 2 for hydraulic pressure -G194
5. Wiring on Sender for transmission output RPM -G195
6. Connection to Sender for transmission output RPM -G195





7. Retainer for Transmission fluid temperature sensor -G93
8. Transmission fluid temperature sensor -G93
9. Wiring harness with 8-pin connector (arrow)
