Sensor For Transmission RPM -G182-, Removing and Installing

Sensor for transmission RPM -G182-, removing and installing

Removing
- Remove valve body.

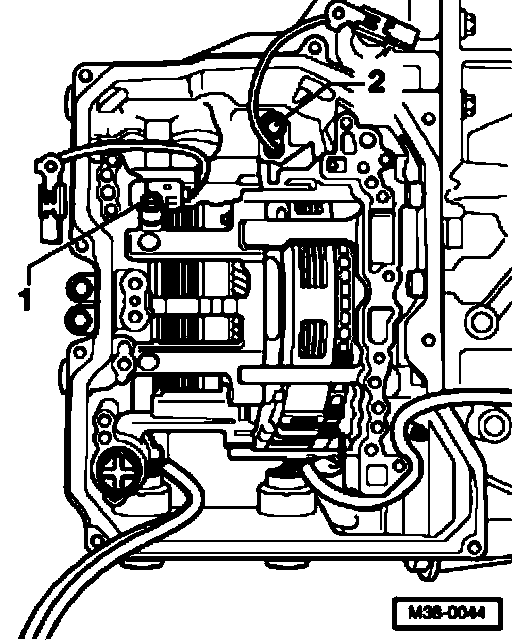

- Remove bolt/screw -1- from Sensor for transmission RPM -G182-.
- Pull sensor out of transmission.

Installing
Install in reverse order. When doing this note the following:
- Push sensor into transmission onto limit stop.
- Tighten bolt/screw -1- of Sensor for transmission RPM -G182, item - 15-.
- Install valve body.
