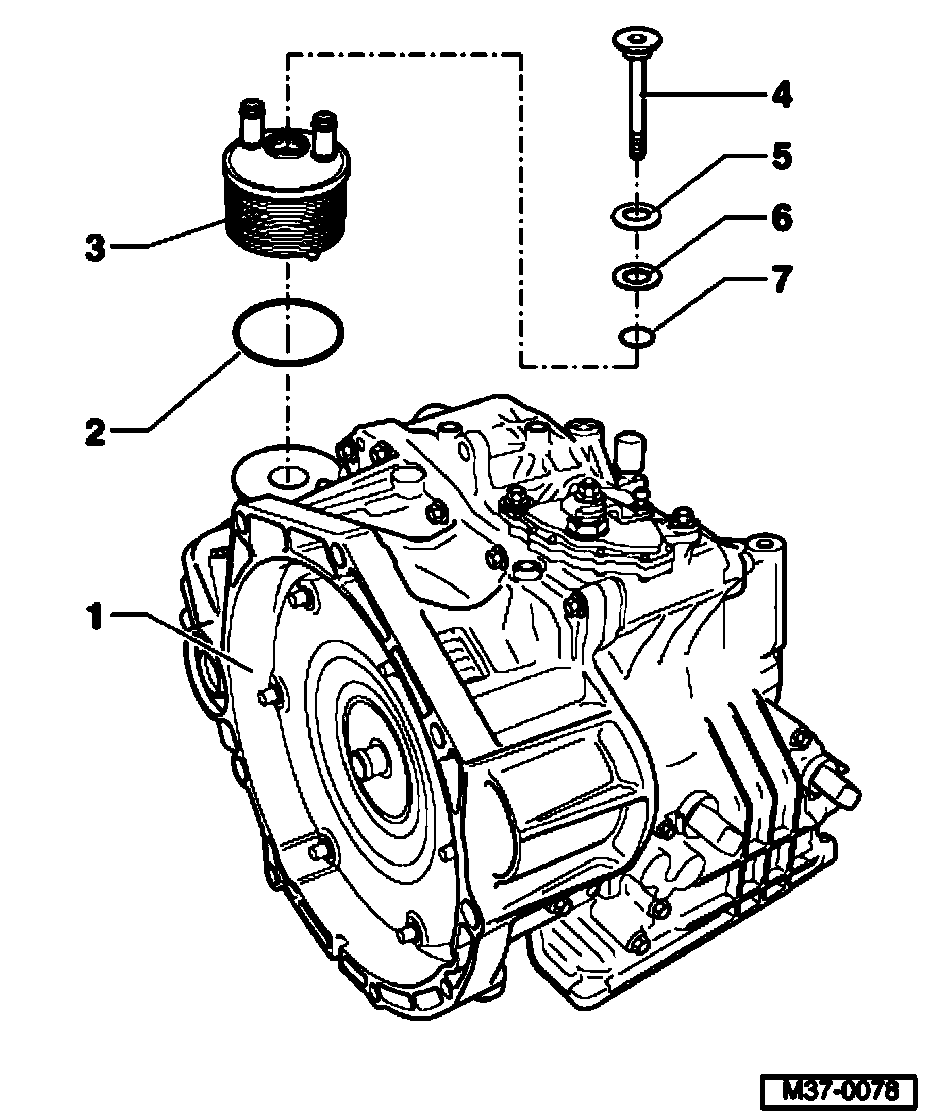

ATF Cooler, Assembly Overview

ATF cooler
Removing and installing; Refer to Transmission Cooler, A/T; Service and Repair





1. Transmission housing
2. O-ring
^ Always replace
3. ATF cooler
4. Bolt, 36 Nm
5. Dished spring
^ Installation position: Must lie on washer, item -6- and dished side must face upward
6. Washer
7. O-ring
^ Always replace
