4 Speed Automatic 01M

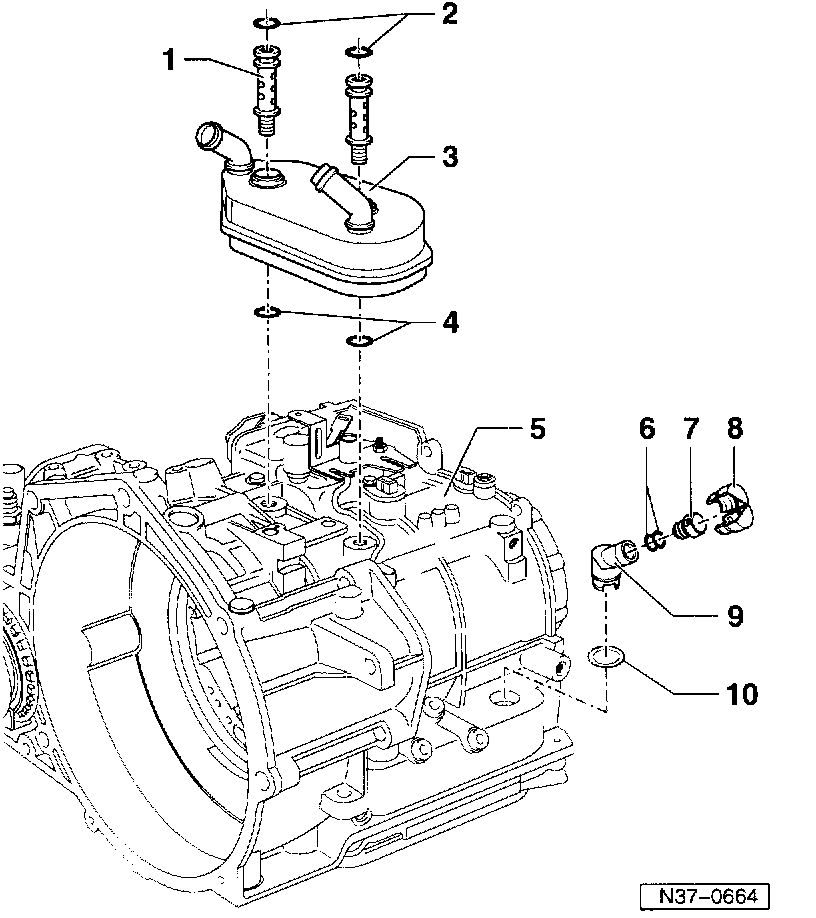

ATF Cooler And ATF Filler Tube, Removing And Installing






1 Banjo bolt, 35 Nm (26 ft. lbs.)
2 O-ring
^ Always replace
3 ATF cooler
4 O-ring
^ Always replace
5 Transmission housing
6 Seal
^ Always replace
7 Plug
8 Cap
^ To secure ATF level plug after checking ATF level, refer to Automatic Transmission Fluid; Service and Repair
^ Always replace
9 ATF filler tube
10 O-ring
^ Always replace
