6 Speed Automatic 09G: Overview

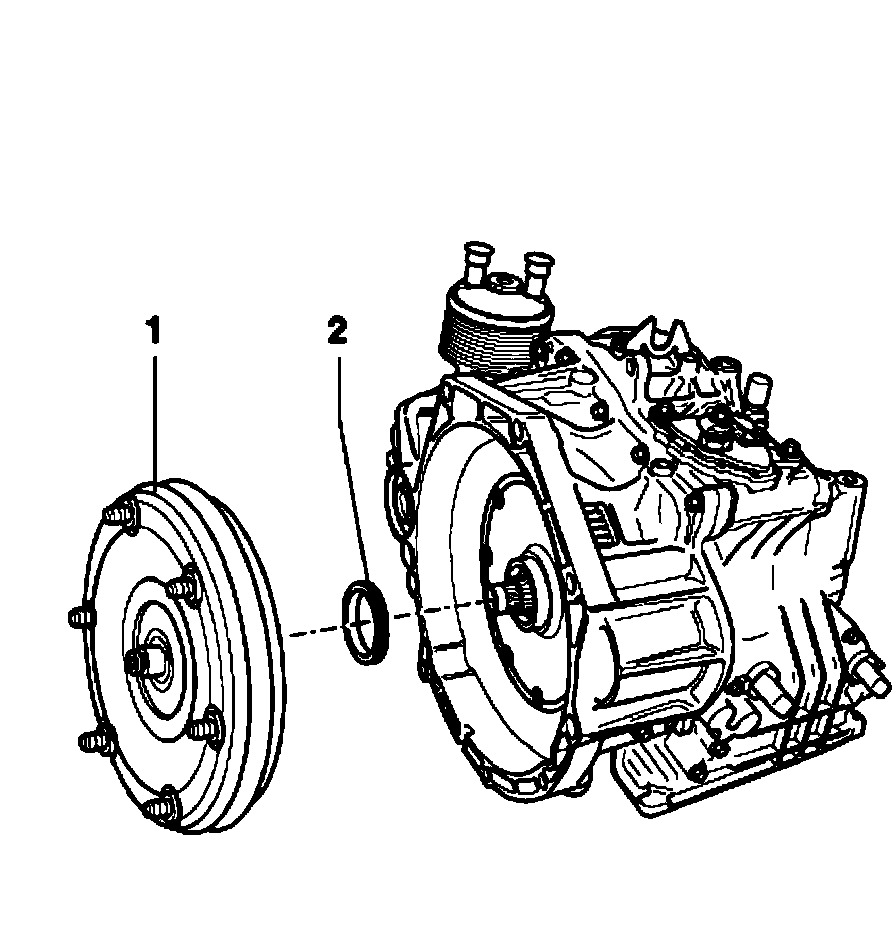

Assembly overview





1. Torque converter
^ Secure torque converter against falling out when transmission is removed.
^ Code letters
2. Oil seal
