4 Speed Automatic 01M

Torque converter, identification
There are different types of torque converter.
- Torque converter with sleeve bearing in turbine shaft of transmission.
- New torque converter with integrated needle bearing.
Identification is by means of the code letters.

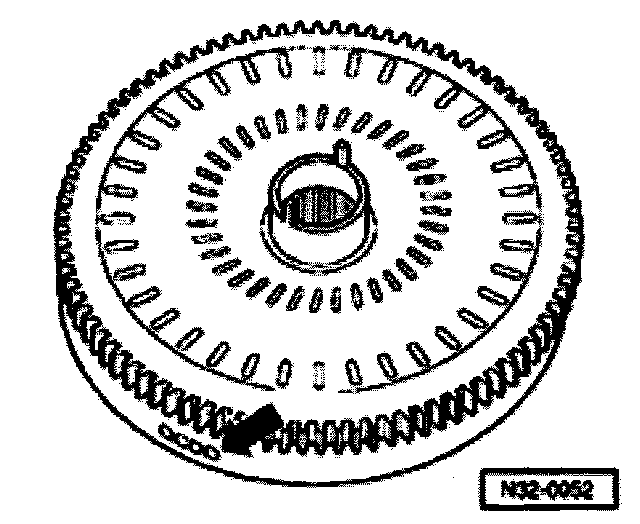

The current torque converter may only be installed in the transmission with a sleeve bearing in the turbine shaft. It can be identified by the fourth letter, which is either a B, C, R, T or V. The example (arrow) is a "C".

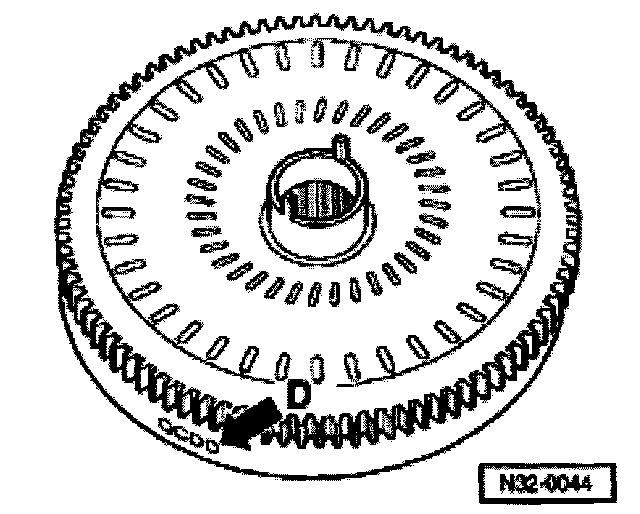

The new torque converter may only be installed in the transmission without a sleeve bearing in the turbine shaft. It can be identified by the fourth letter, which is either a D, H, or J. The example (arrow) is a "D".

Note: If a new torque converter with integrated needle bearing is installed in a transmission with a sleeve bearing in the turbine shaft, the sleeve bearing must be removed.

Torque converter allocation
There are two types, which are allocated according to transmission code letters.

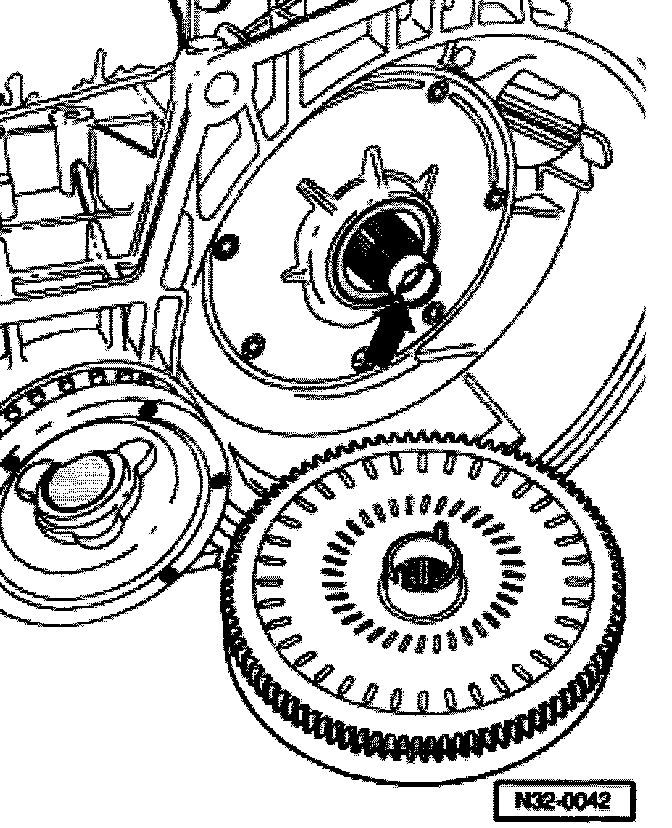

Torque converter with sleeve bearing in the turbine shaft of the transmission (arrow).
New torque converter with integrated needle bearing. A sleeve bearing (arrow) may not be installed in the turbine shaft of the transmission with this type. Remove if necessary.
