VAS 5051, Connecting and Selecting Function

VAS 5051, connecting and selecting function
Special tools and equipment

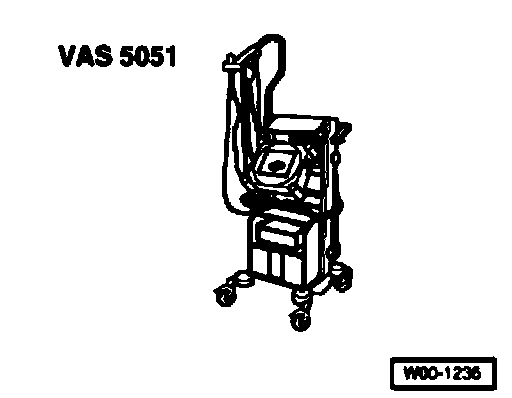

^ VAS 5051 Vehicle Diagnosis, Testing and Information System
^ Diagnostic cable VAS 5051/1 or VAS 5051/3

WARNING:
^ When performing a road test the test and measuring units must be secured on the rear seat.
^ During the road test only one person must operate these units.

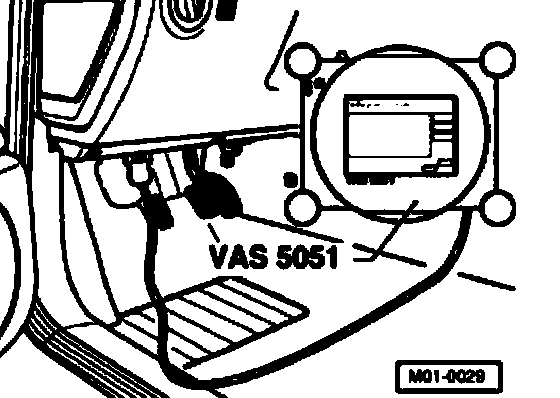

- With ignition switched off, connect tester VAS 5051 to Data Link Connector (DLC) using diagnostic cable VAS 5051/1 or VAS 5051/3.

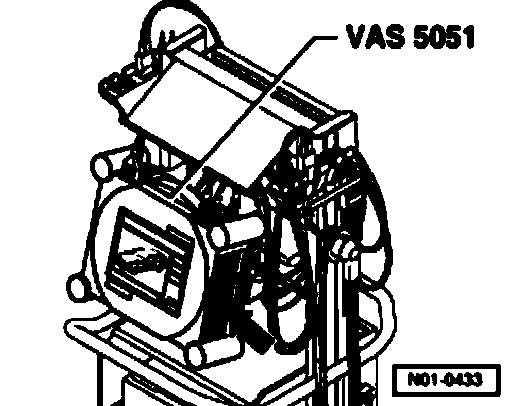

- Switch tester on (arrow).
Tester is operationally ready when picture of a vehicle appears on display.
- Switch ignition on.
- Touch key on screen for: Guided Fault finding.
- Select one after another:
^ Brand
^ Model
^ Model year
^ Variant
^ Engine code
- Confirm data as entered:

Note: Wait until the tester has read all the available control modules.

- Using "Go to" key, select "Function/component selection"
- Follow instructions on screen to start functions desired.
