Measured Value Block, Reading

Measured value block, reading

Supplementary information
^ Refer to Electrical Wiring Diagrams

Test sequence
- Connect VAS 5051 tester and select functions.
The following description refers to VAG 1551

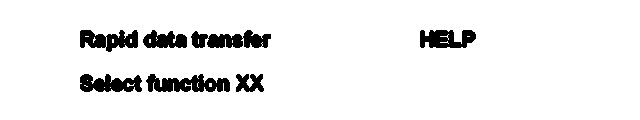

Indicated on display
- Press keys O and 8 (08 selects function "Read measured value block").





Indicated on display
- Confirm entry with Q key.

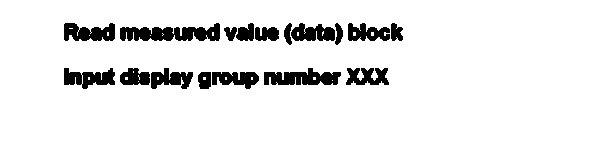

Indicated on display
- Enter display group number; Refer to List of selectable display group numbers.
- Confirm entry with Q key.

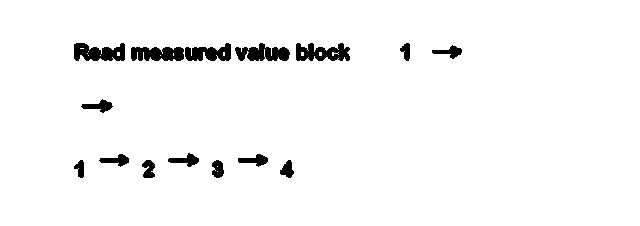

There are always 4 display zones in the measured value block (arrows) (if necessary in physical quantities). To decode the individual values in display zones 1 to 4; Refer to Test table.

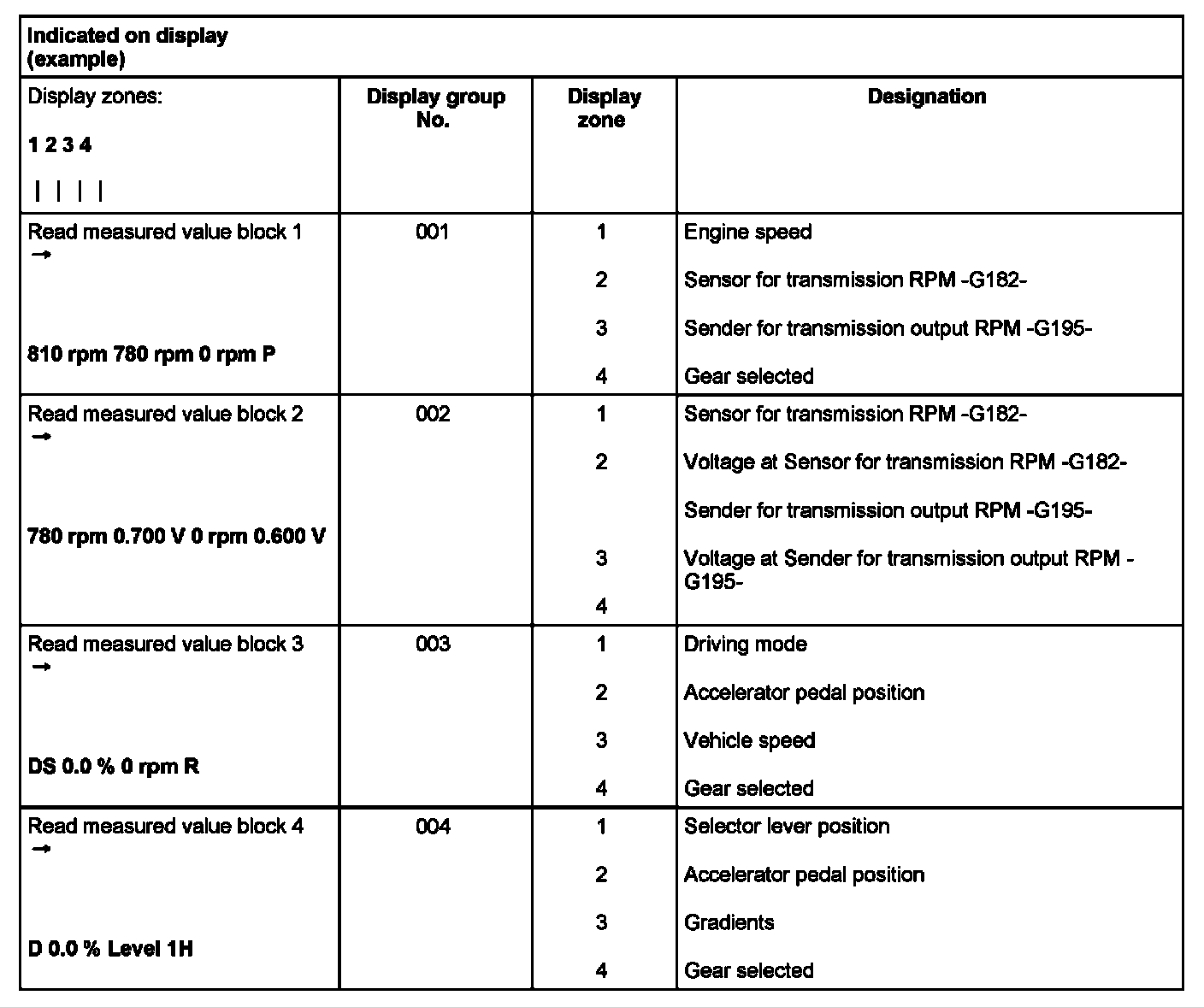

Part 1:

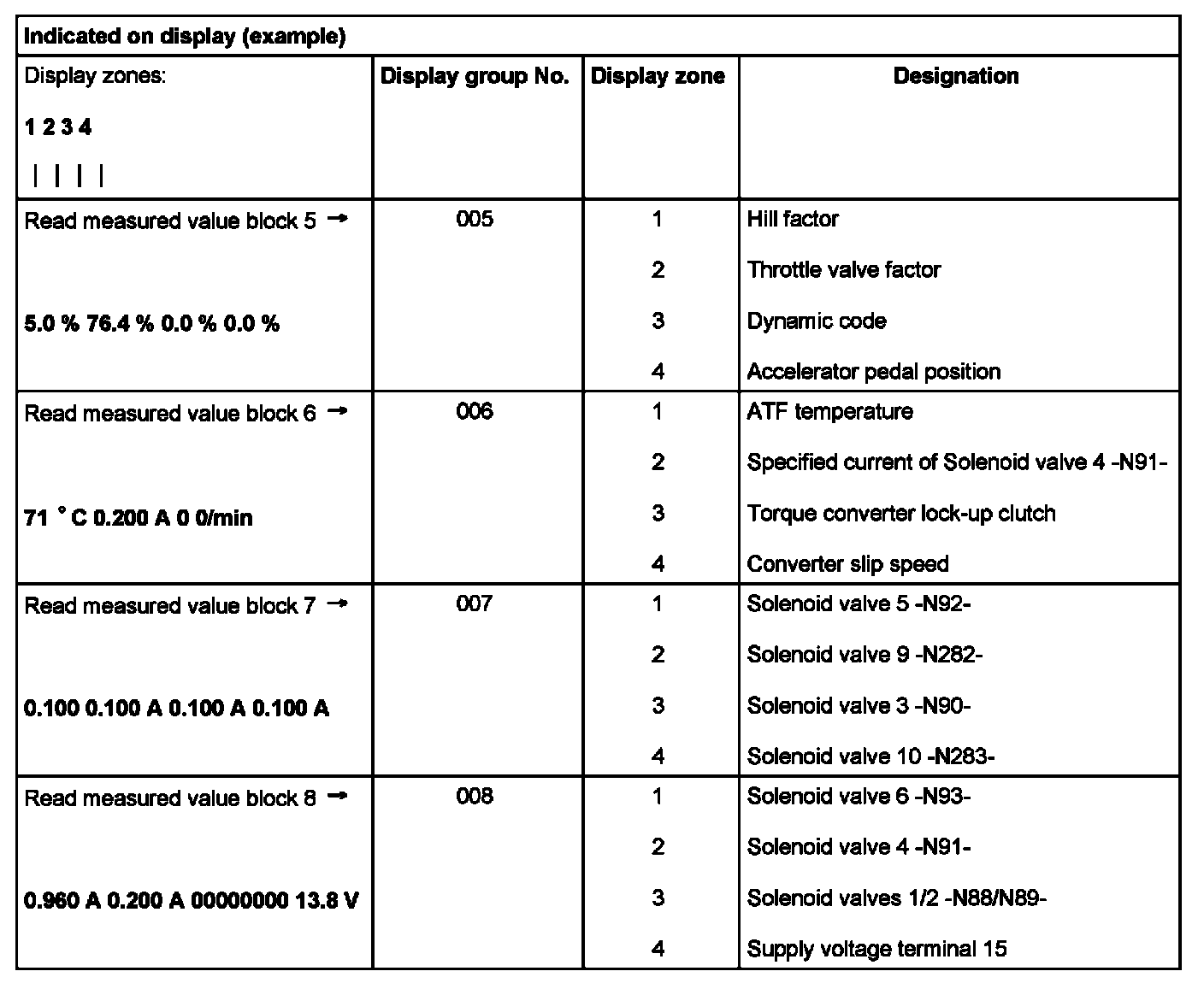

Part 2:

Part 3:

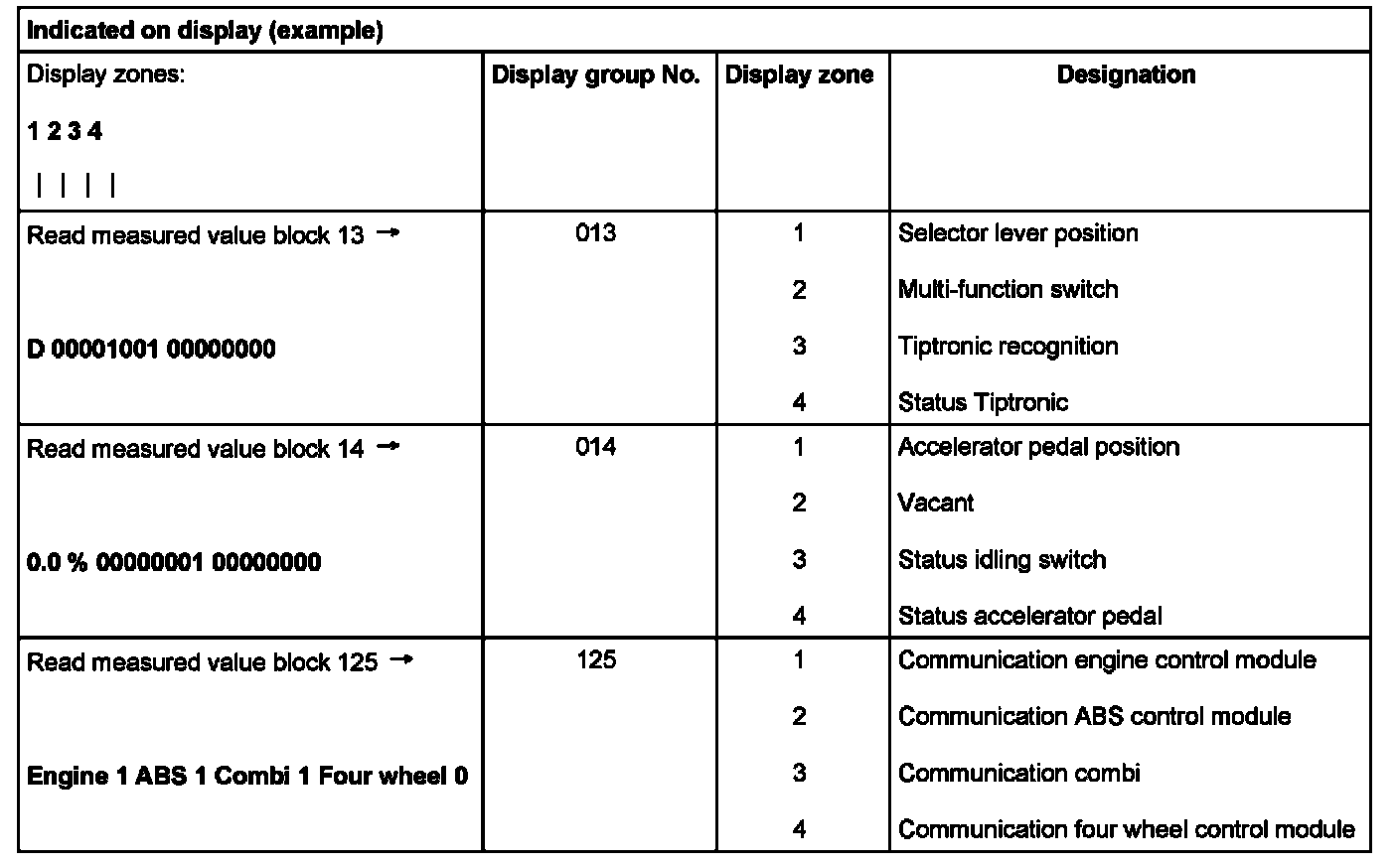

Part 4:

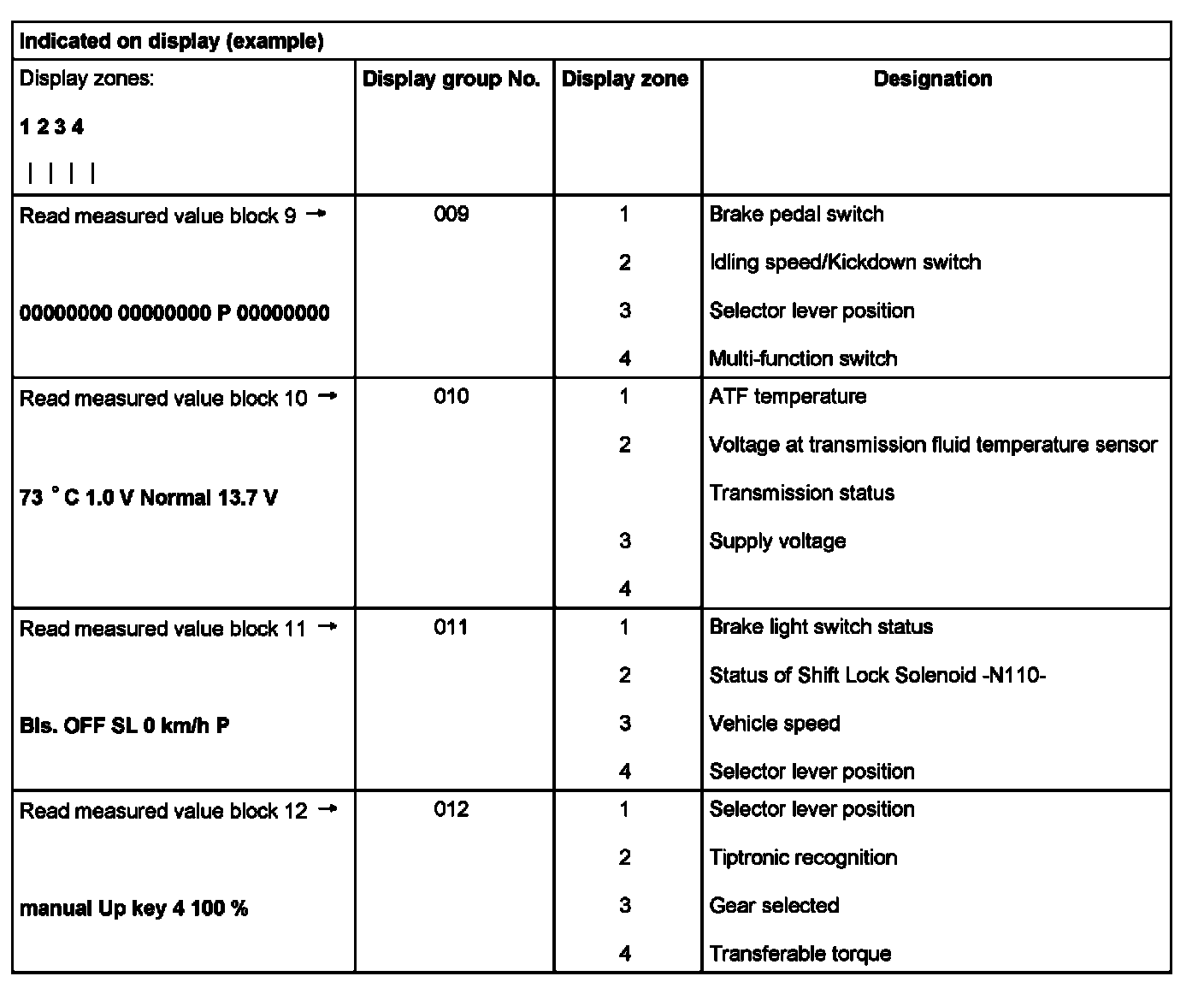

List of selectable display group numbers

Note:
^ When the printer is switched on the actual display is printed out on a voucher.
^ If the specified values are reached in all the display fields:
- Press key (arrow)

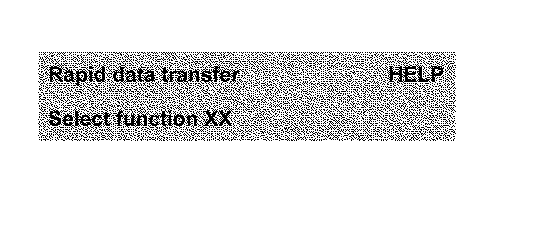

Indicated on display:
