Scan Tool Testing - 4 Speed Automatic 01M
>>
Normal Scan Data Values
>>
Display Groups
>>
Display Groups 005 and 006
Display Groups 005 and 006

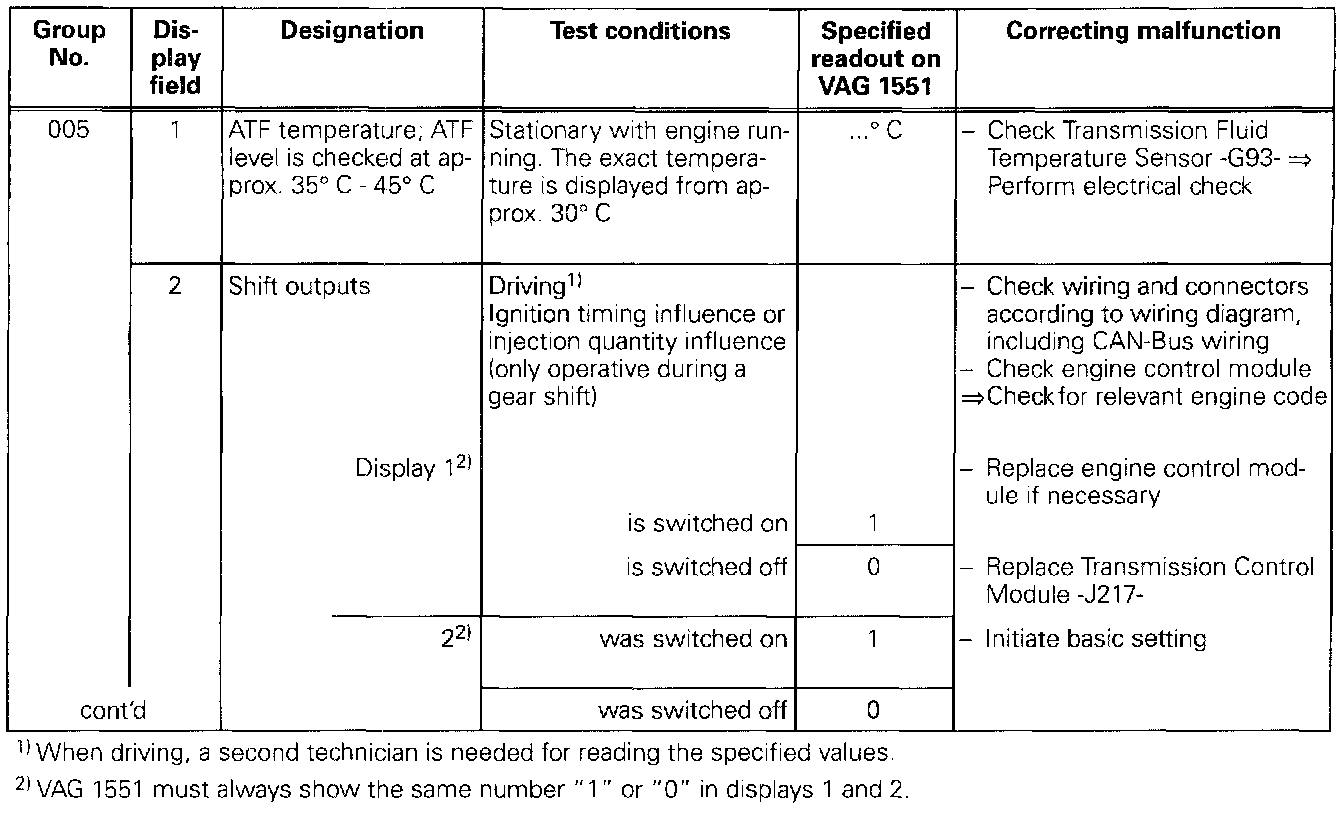

Display Fields 1 and 2

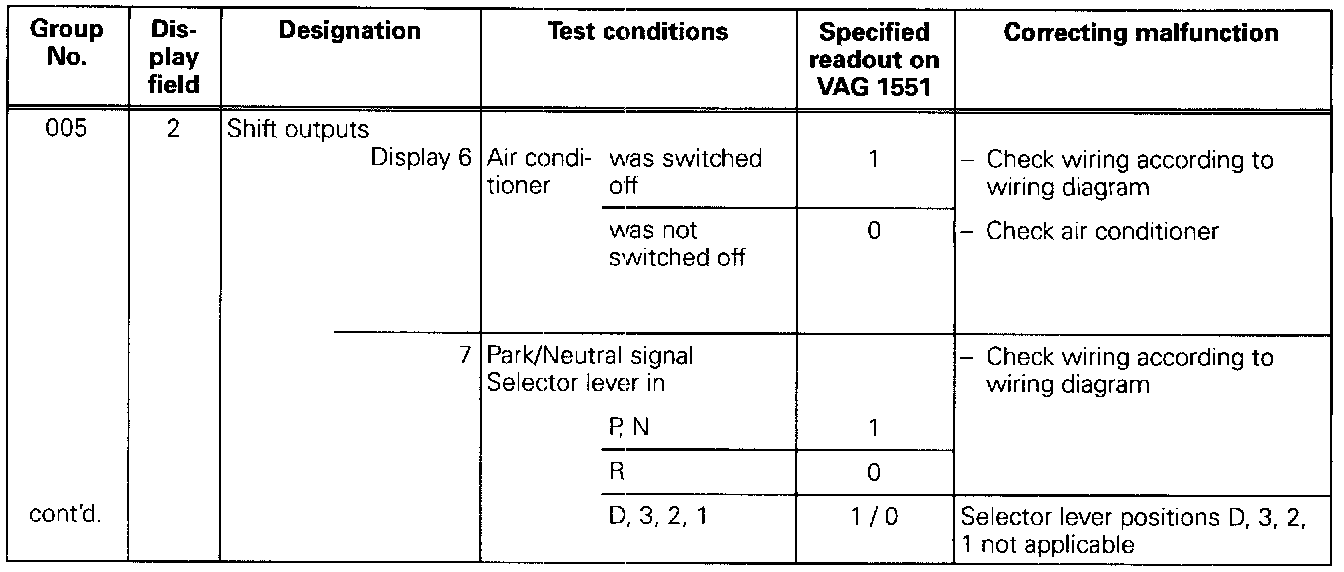

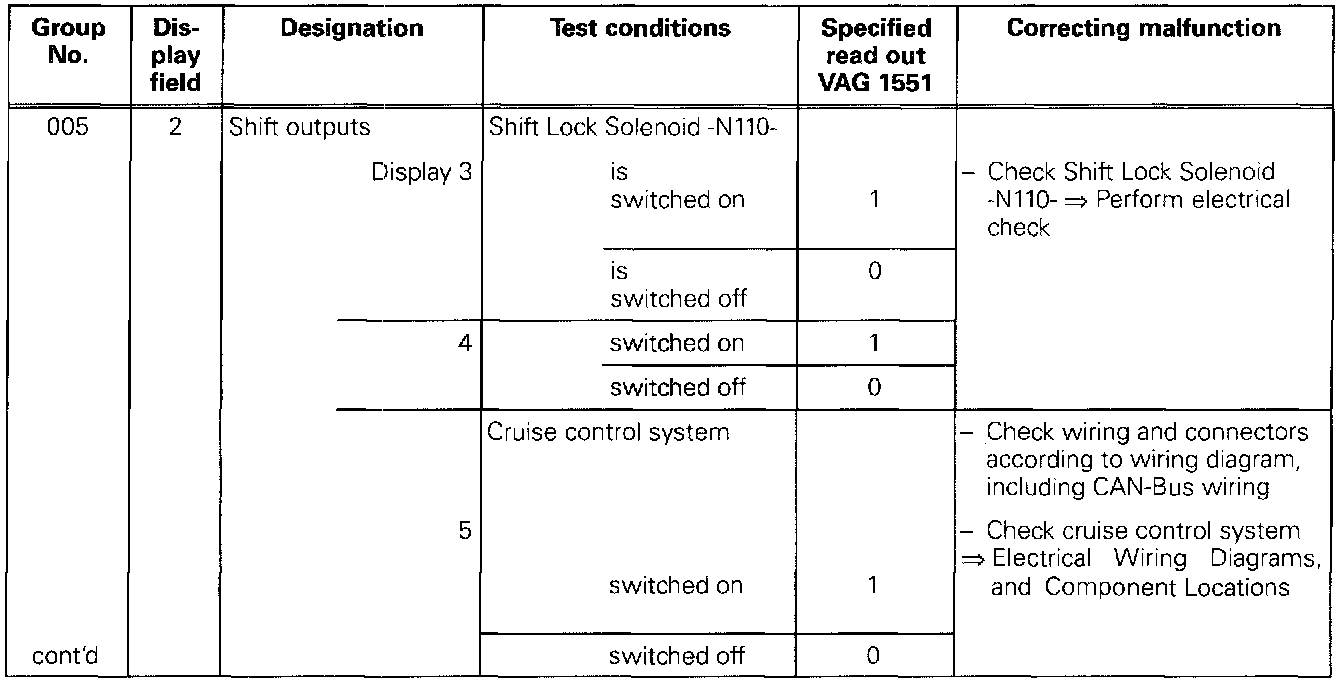

Display Field 2 (continued)
Display Field 2 (continued)

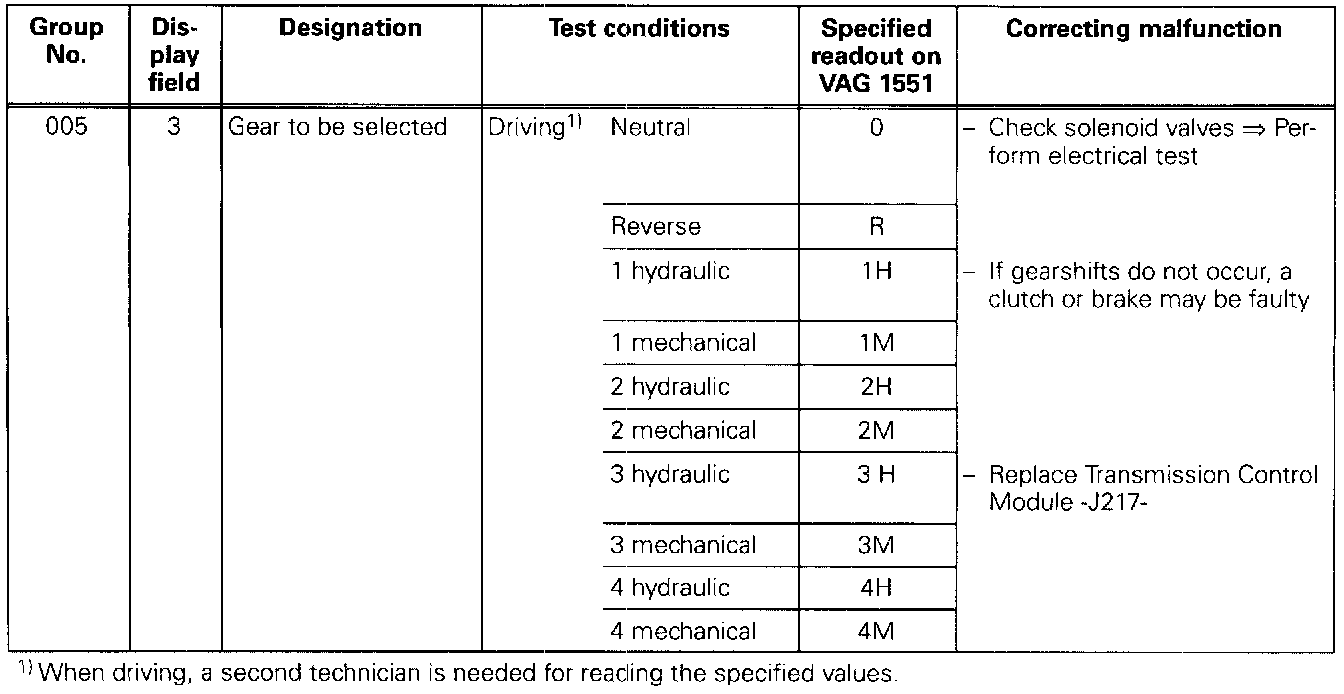

Display Field 3

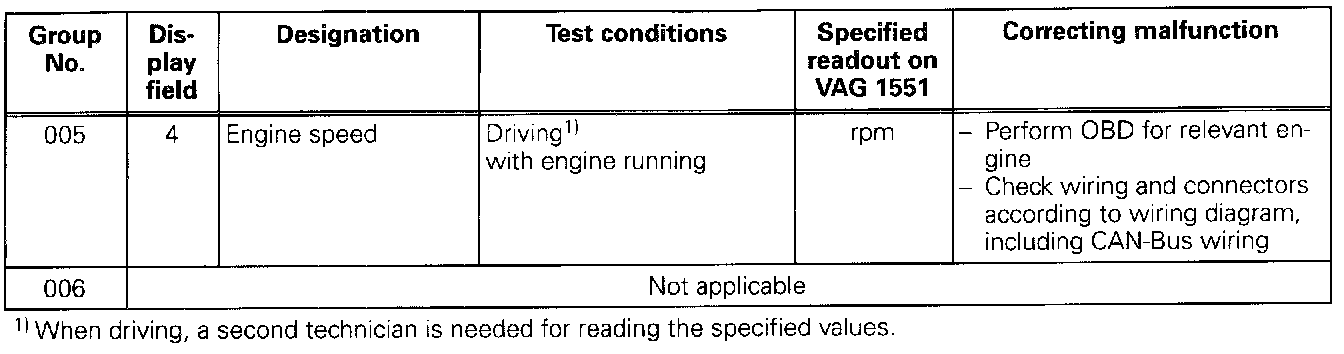

Display Field 4
