Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values - 4 Speed Automatic 01M >> Test Table >> Test Step 1 and 2

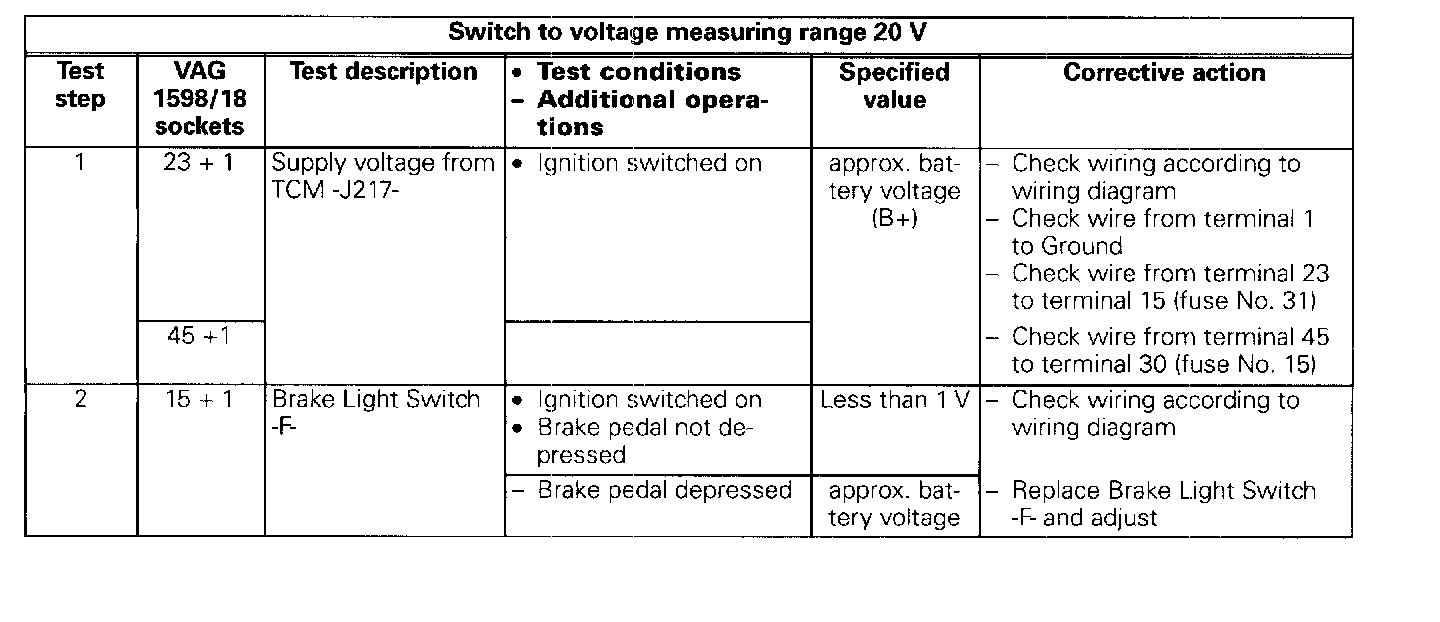

Test Step 1 and 2
