Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Testing and Inspection >> Ignition Key Withdrawal Lock, Checking Function

Ignition Key Withdrawal Lock, Checking Function

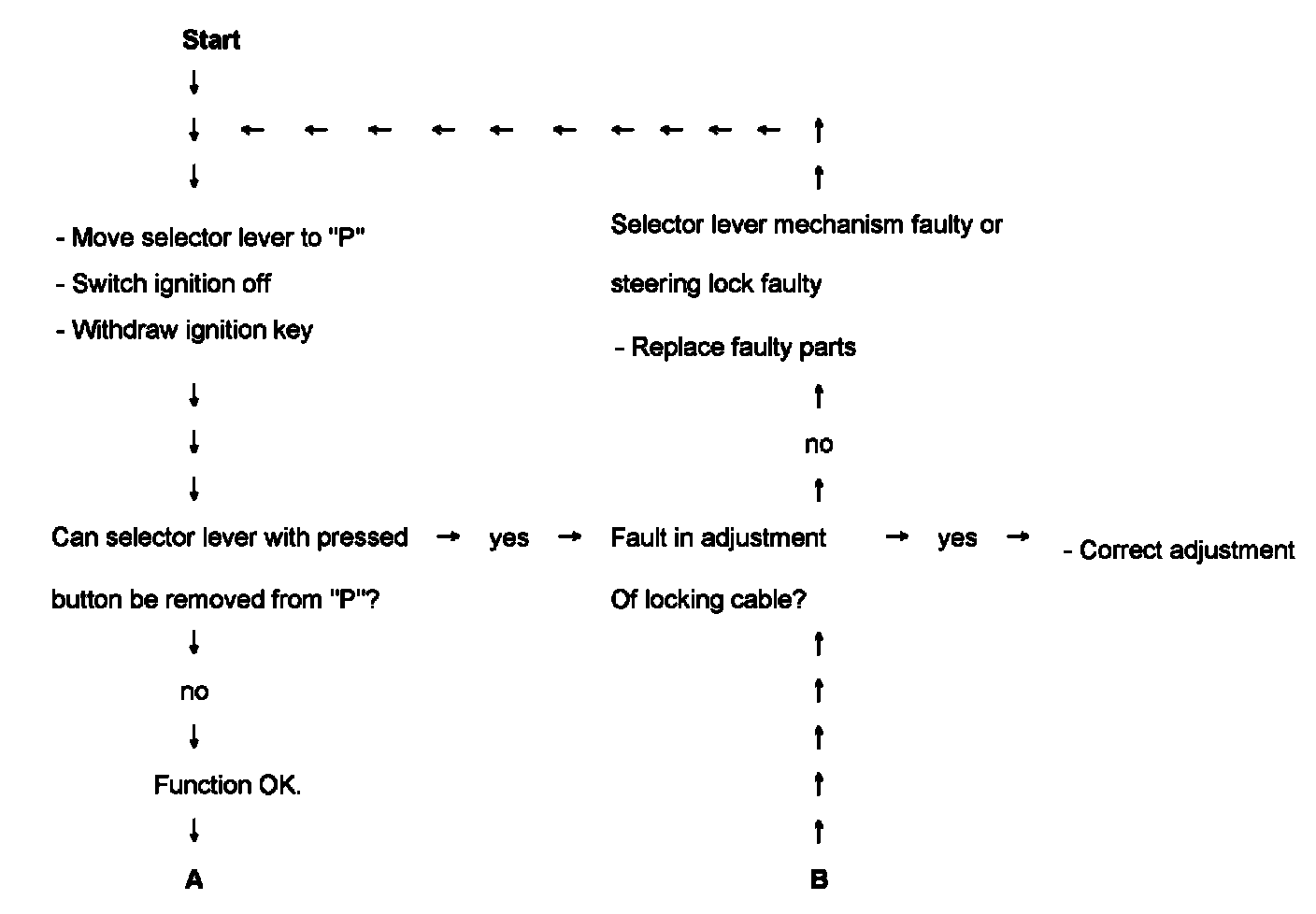

Part 1:

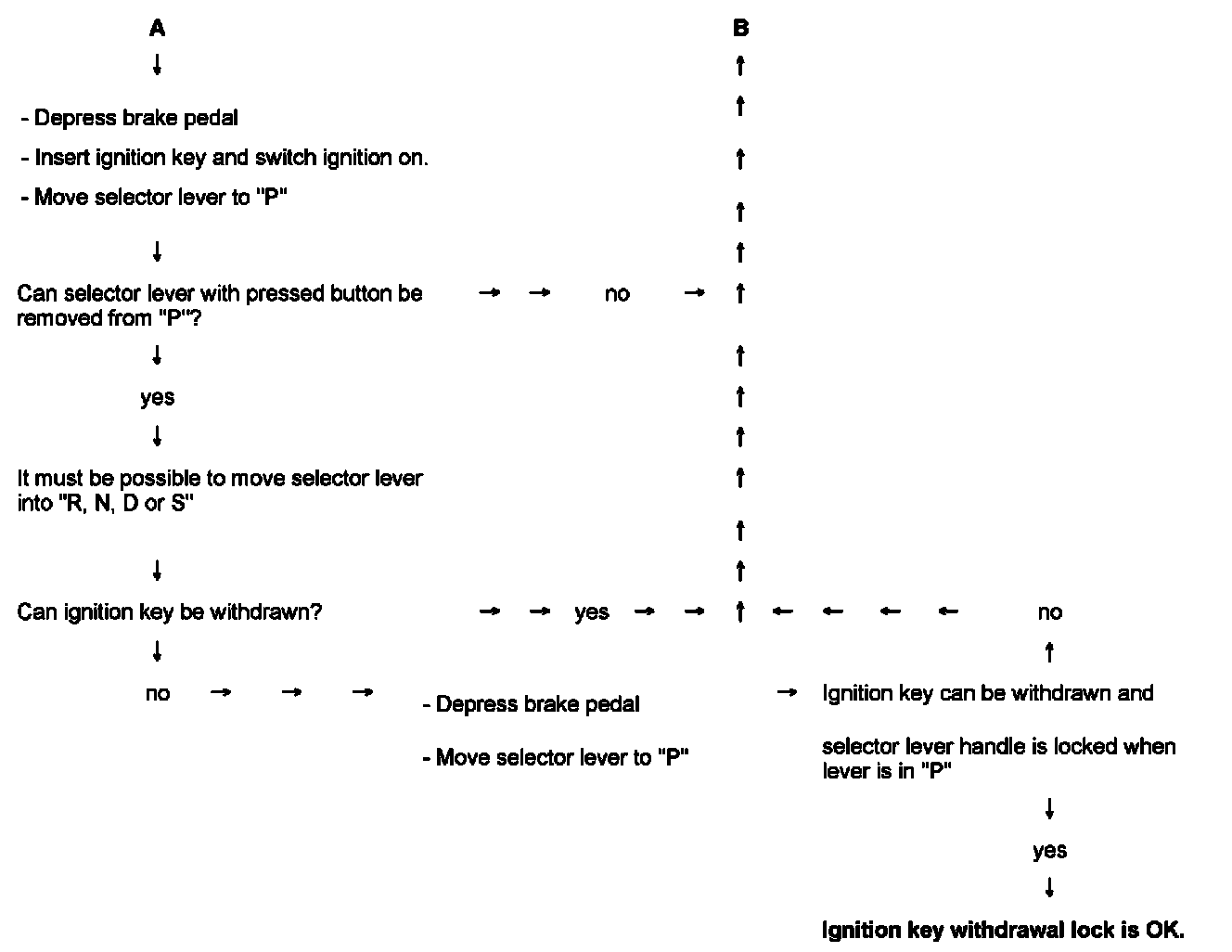

Part 2:





Ignition key withdrawal lock, checking function
