Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Testing and Inspection >> Ignition Key Removal Lock, Checking

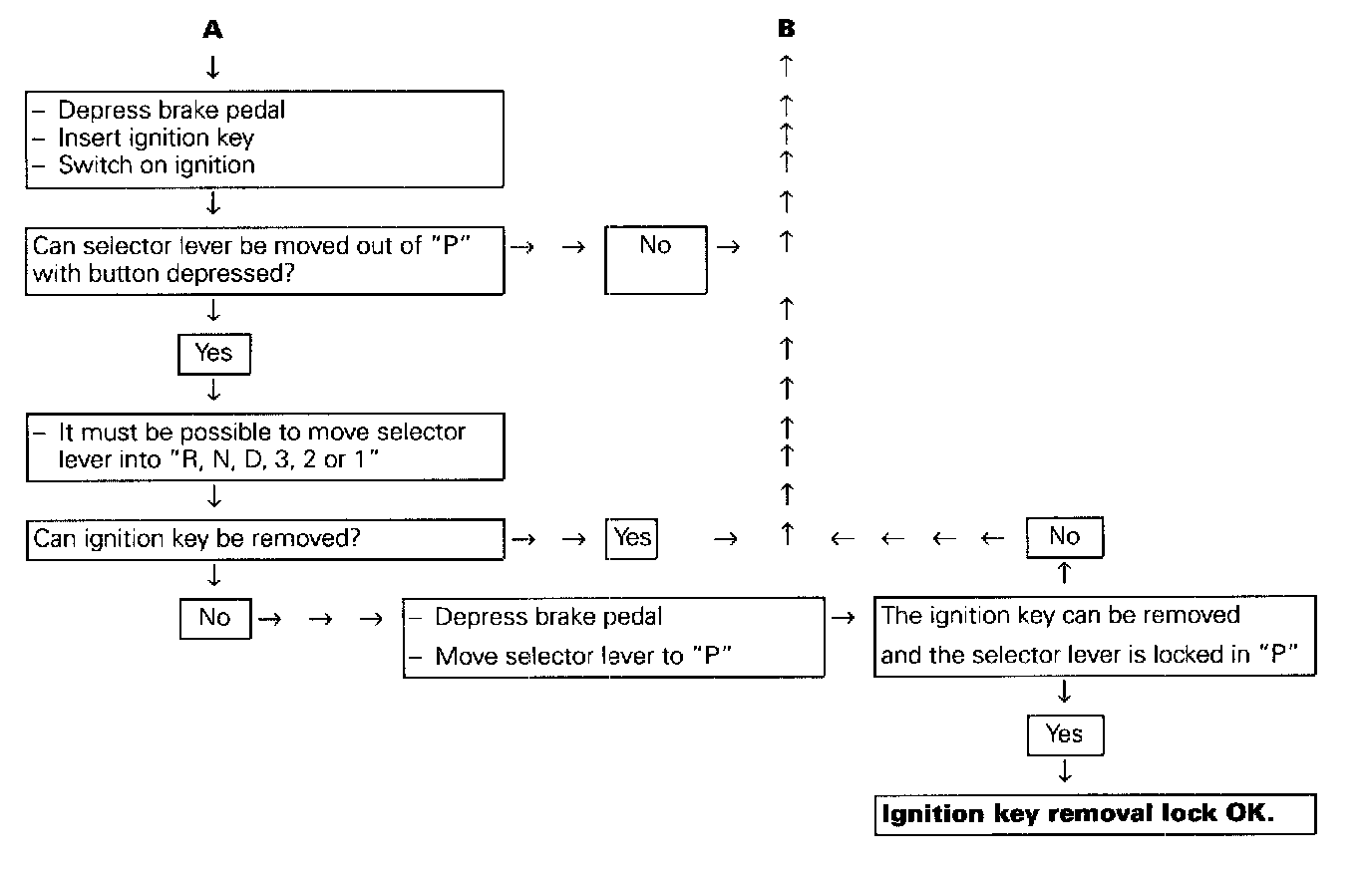

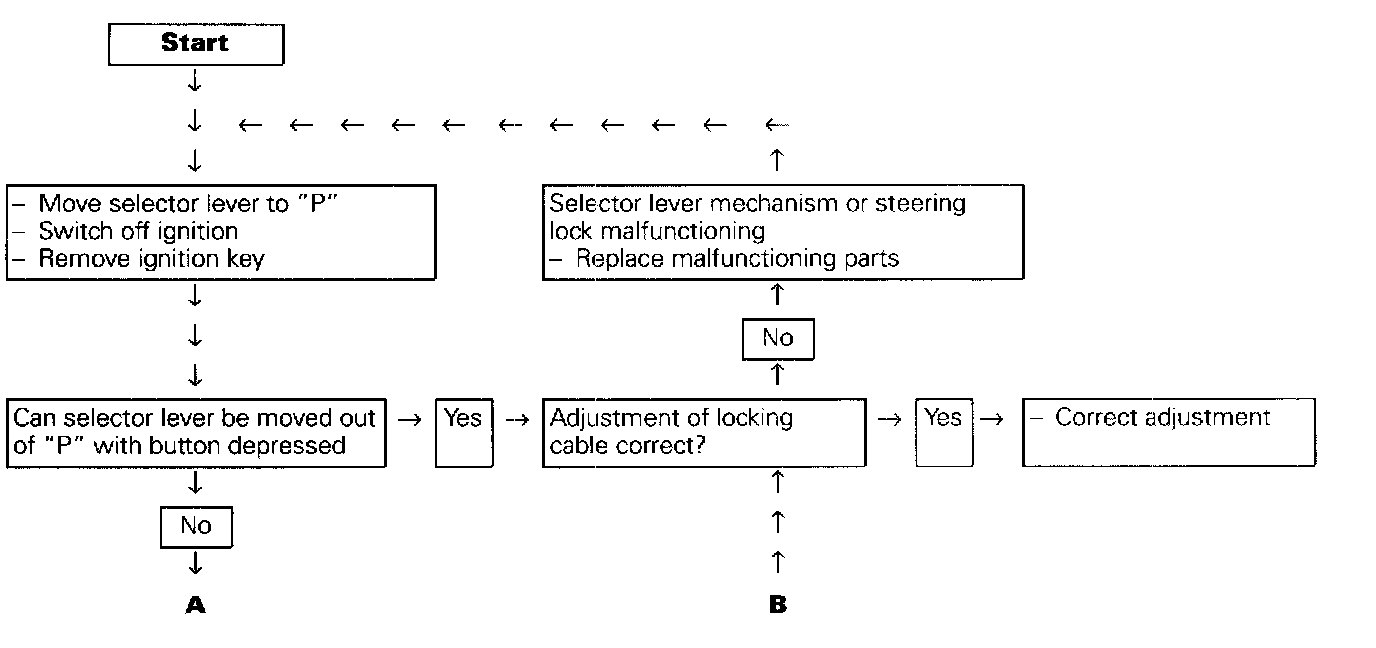

Ignition Key Removal Lock, Checking










Ignition key removal lock, checking
