Selector Mechanism, Disassembling and Assembling

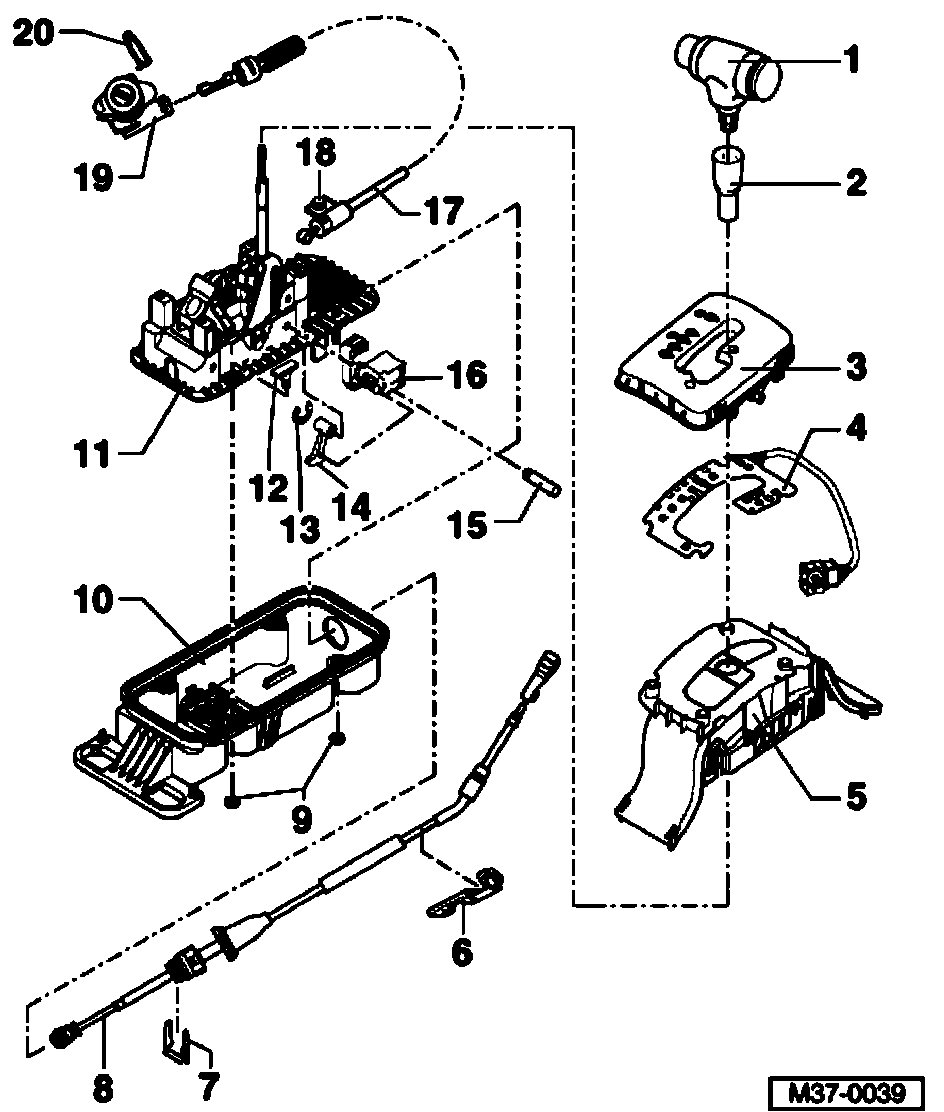

Selector mechanism, disassembling and assembling

Note: Lubricate mountings and sliding surfaces with polycarbamide grease Part number G 052 142 A2.





1. Selector lever handle
2. Sleeve
^ Locates in selector lever handle
^ Prevents selector lever handle from being pulled off
3. Cover
4. Printed circuit board
5. Frame
6. Bracket
^ With clip for selector lever cable
7. Locking plate
^ For selector lever cable to selector lever housing
^ Always replace
8. Selector lever cable
9. Self-locking nut, 10 Nm
^ For cover to selector lever housing
^ Qty 4
^ Always replace
10. Cover
11. Selector lever housing
12. Bolt
13. Locking washer
^ For mounting pin item -15- of pawl item -14 -
14. Pawl
^ For selector lever lock
^ Grips into cable lever of selector lever housing
15. Mounting pin
^ For pawl item -14 -
16. Shift lock solenoid -N110-
17. Locking cable
18. Bolt
19. Steering lock
20. Clip
^ Installation position: Install clip from above. Angled ends of clip face steering lock.
