Selector Mechanism Frame, Overview

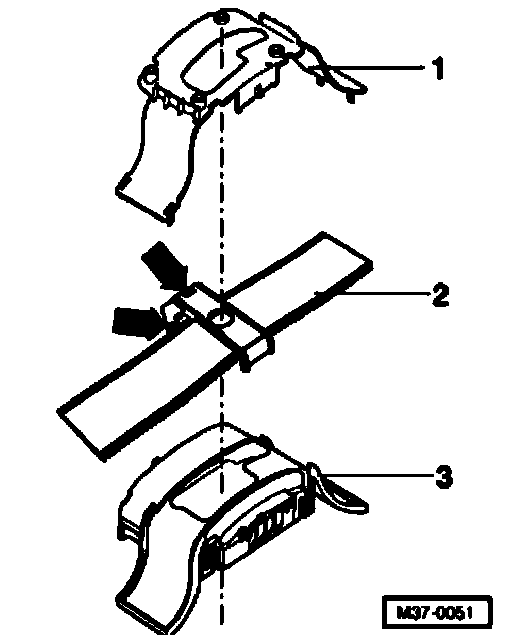

Selector mechanism frame, overview





1. Frame - upper part
2. Cover strip
^ With 2 magnets (arrows) for Tiptronic switch -F189- and selector display.
^ Magnets must be securely connected to cover strip.
3. Frame - lower part
