Selector Mechanism Frame, Disassembling and Assembling

Selector mechanism frame, disassembling and assembling

Disassembling
- Remove cover.

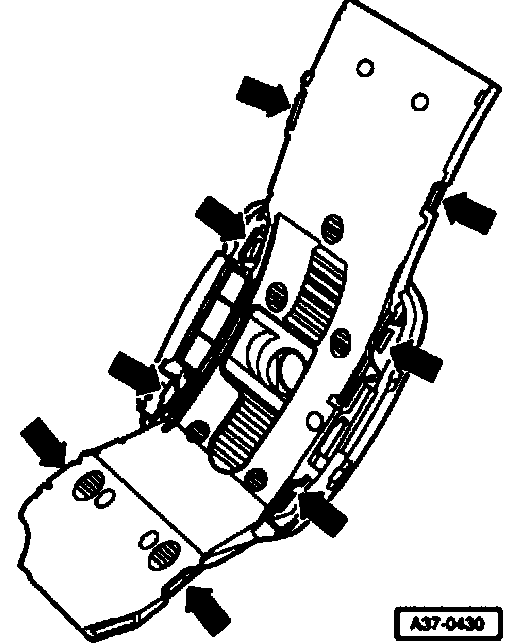

- Carefully pry up retaining lugs (arrows).

Note: The frame must be replaced if the retaining lugs are damaged.

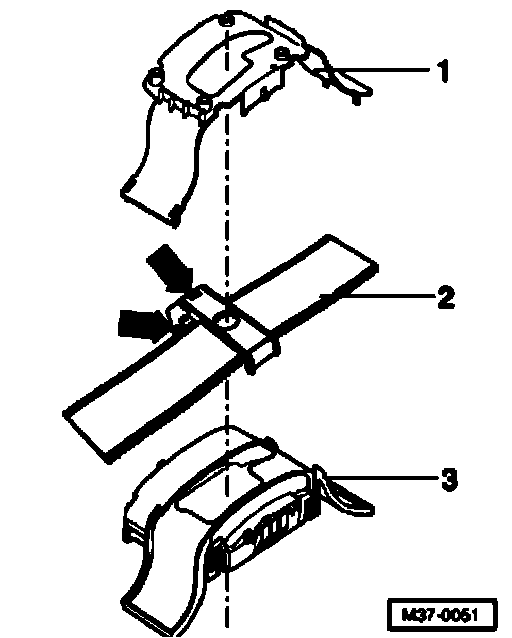

- Take off frame upper part -1-.
- Take cover strips -2- out of frame lower part -3-.

Assembling
- Check that magnets (arrows) are on cover strips -2-.
If not, replace cover strips
- Place cover strips -2- into frame lower part -3-.
- Position frame upper part -1- onto frame lower part.

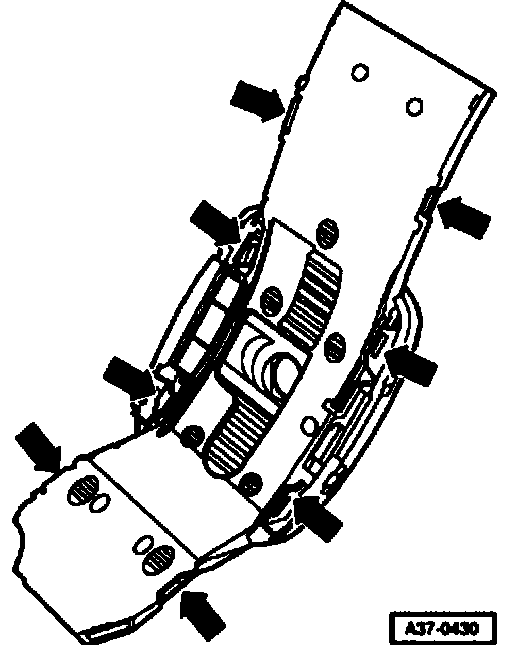

- Lock upper and lower parts of frame carefully into one another (arrows).

Note: The frame must be replaced if the retaining lugs are damaged.

- Install cover.
