4 Speed Automatic 01M

CAUTION!
Follow the adjustment procedure exactly as outlined.

Adjustment conditions:

^ Locking cable must be routed correctly
^ Center console is removed.
^ Selector lever is in "P"
^ Ignition key is removed.

Adjustment sequence:

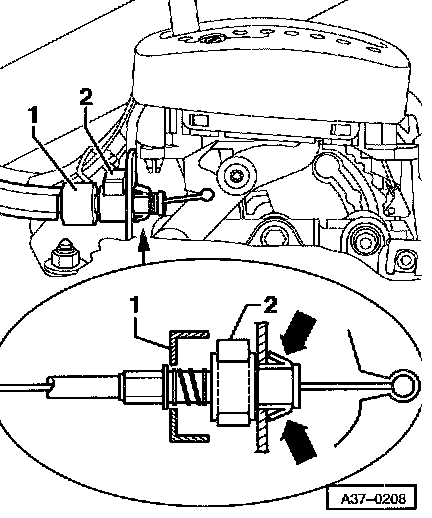

^ Slide sliding sleeve -1- forward.
^ Release clip -2- by pushing up.
^ Carefully pry up at four corners of bracket -7- and remove. Be careful not to damage contact spring for shift lever position indicator

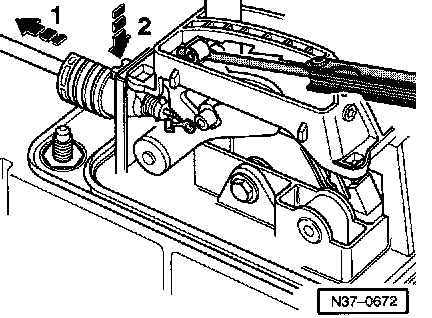

^ Slide 0.8 mm feeler gauge between locking lever and selector lever roller.
^ Pull outer sleeve of locking cable slightly forward in direction of travel -arrow 1- and push red clip down until it engages -arrow 2-.
^ Push sliding sleeve over clip.
^ Ignition key removal lock, checking.
