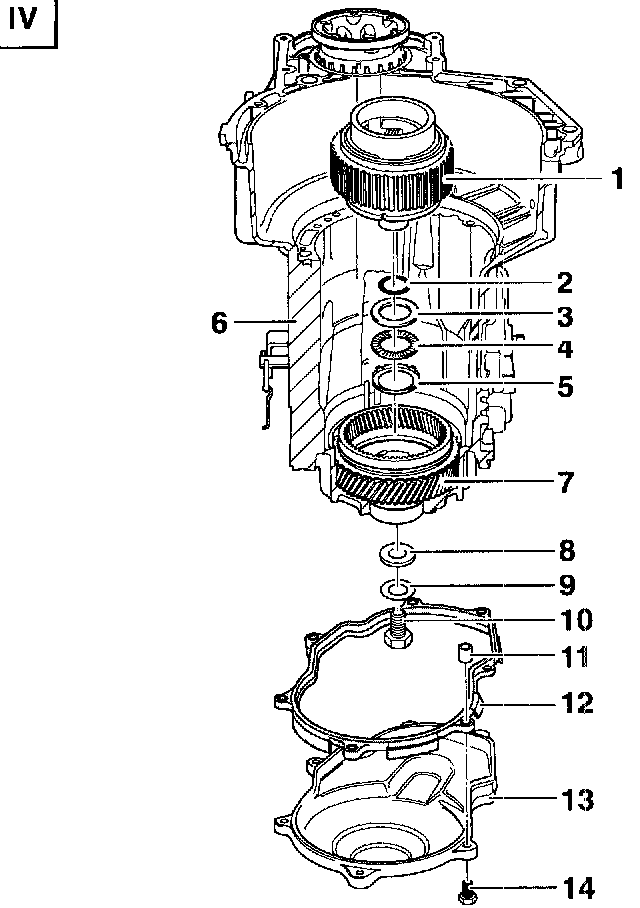

Planet Carrier & Transmission Housing With Input Gear and Cover

Planet carrier and transmission housing with input gear and cover
1 Planet carrier
2 O-ring
^ Always replace
^ Insert in planet carrier
3 Axial needle bearing washer
4 Axial needle bearing
5 Axial needle bearing washer
^ Install smooth side in input gear
6 Transmission housing with input gear installed
7 Input gear
^ Do not remove to dismantle planetary transmission
^ Input gear or axial needle bearing for planet carrier.
8 Planet carrier shim
9 -Washer
10 Bolt, 30 Nm (22 ft. lbs.)
^ For small input shaft
11 Spacer bushing
^ Install in gasket (qty. 7)
12 Gasket
^ Always replace
13 Cover
14 Bolt, 8 Nm (71 inch lbs.)
