Free Wheel and Reverse Gear Brake

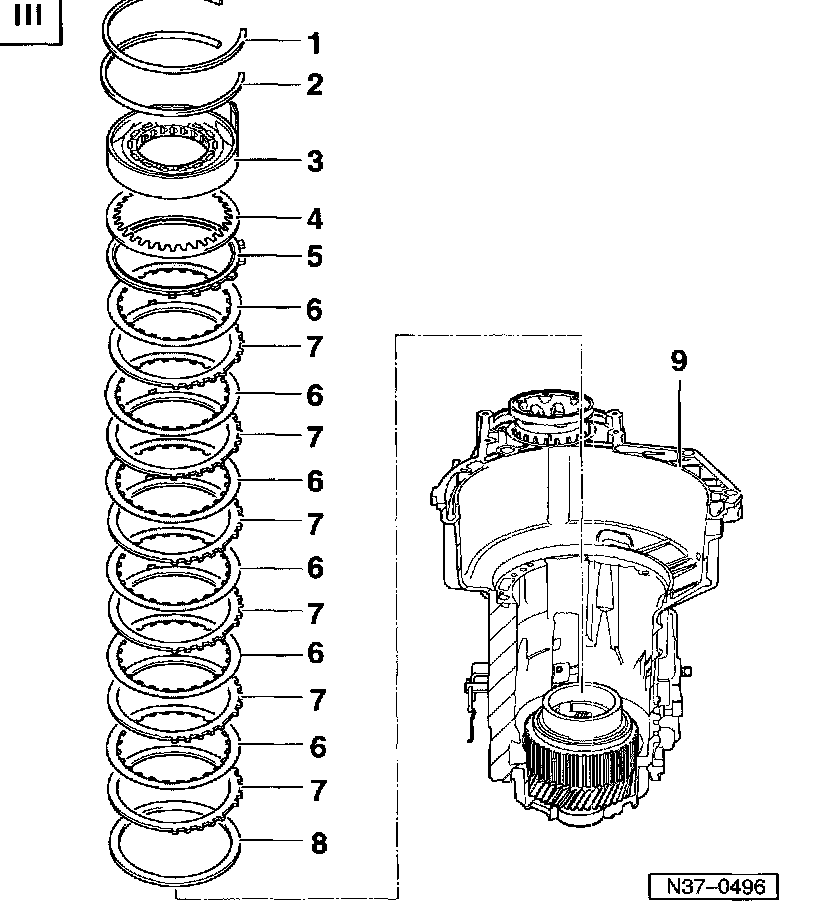

Free wheel and reverse gear brake -B1-
1 Circlip
^ For supporting tube -B2-
^ Installation position: Circlip open ends must face free wheel retaining wedge
2 Circlip
^ For freewheel
^ Installation position: Circlip open ends must face free wheel retaining wedge
3 Free wheel with -B1- piston
^ Before removing free wheel, remove valve body and sealing plugs.
^ Disassembling and assembling
4 Dished spring
^ Install with convex side facing free wheel
5 Pressure plate -B1-
^ Install with flat side facing plates
^ Spare part must comply with transmission code letters
6 Inner plate, -B1-
^ Quantity of inner plates -B1- : Refer to Specifications
^ Soak plates in ATF for 15 minutes before installing
7 Outer plate, -B1-
^ Quantity of outer plates -B1- : Refer to Specifications
8 Shim
9 Transmission housing with planet carrier installed
