4 Speed Automatic 01M

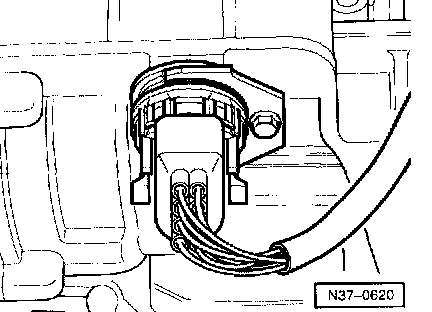

Multi-Function Transmission Range (TR) Switch F125-
Location: on rear of transmission
Removing and installing multi-function TR switch
^ Switch off ignition.
^ Pull connector off multi-function TR switch.
^ Remove bolt and retainer.
^ Remove multi-function TR switch.
^ Replace seal.

Installation is performed in the reverse order.
^ Tighten bolt to 10 Nm (7 ft. lbs.).
