Selector Shaft Oil Seal, Replacing

Selector shaft oil seal, replacing
Special tools and equipment

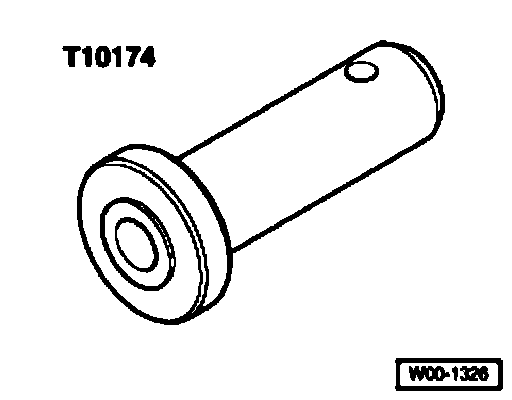

^ T10174 press piece

Removing





- Remove Multi-function TR switch -F125.

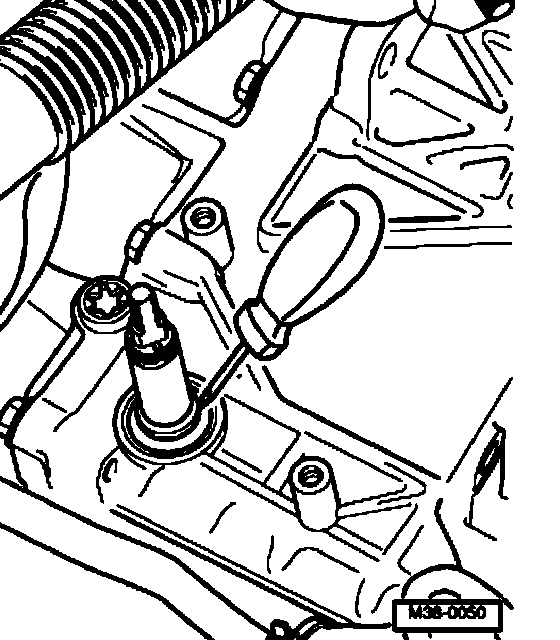

- Carefully pry out selector shaft oil seal with a screwdriver. Do not damage selector shaft when doing this.

Installing

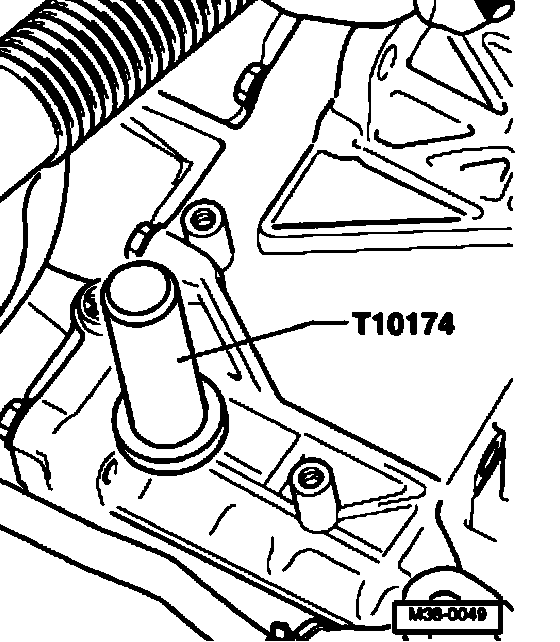

- Drive in new oil seal onto limit stop of press piece. Do not tilt seal when doing this.
- Install Multi-function TR switch -F125-.
- Adjust Multi-function TR switch -F125-.
