Torque Converter Seal



Required special tools and equipment:

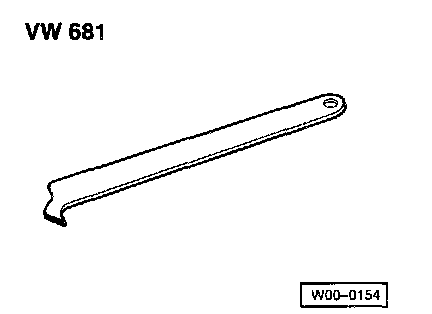

^ VW 681 extractor lever

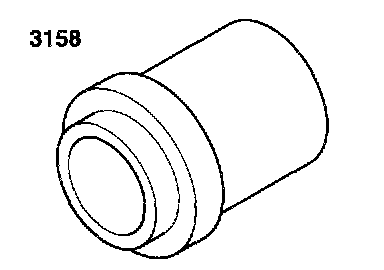

^ 3158 sleeve

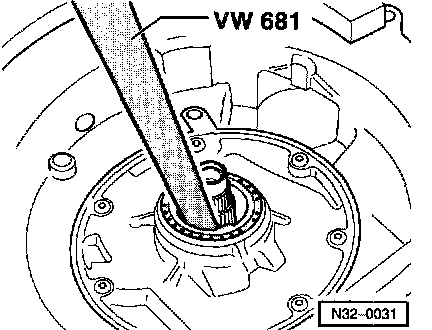

Torque converter oil seal, removing

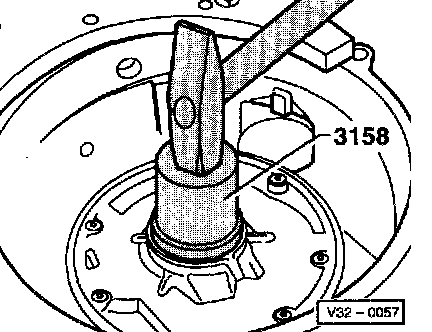

Torque converter oil seal, driving in until flush
