Parking Pawl: Service and Repair

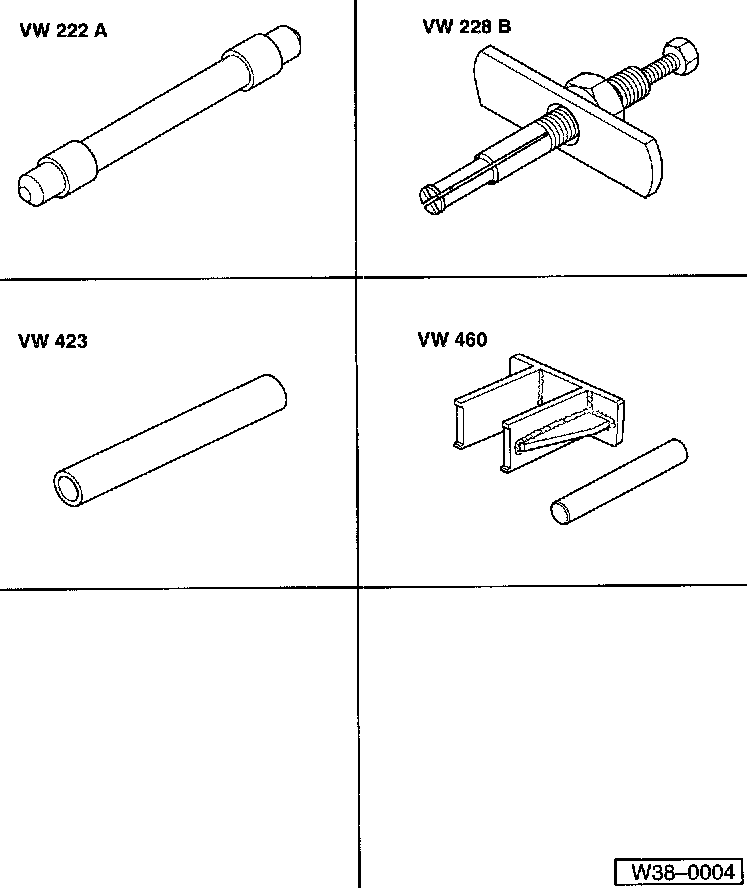

Required special tools and equipment:
^ VW 222 A Drift
^ VW 228 B Puller
^ VW 423 Tube
^ VW 460/2 Mandrel
Note:
The output gear must be removed to disassemble and assemble the parking lock.

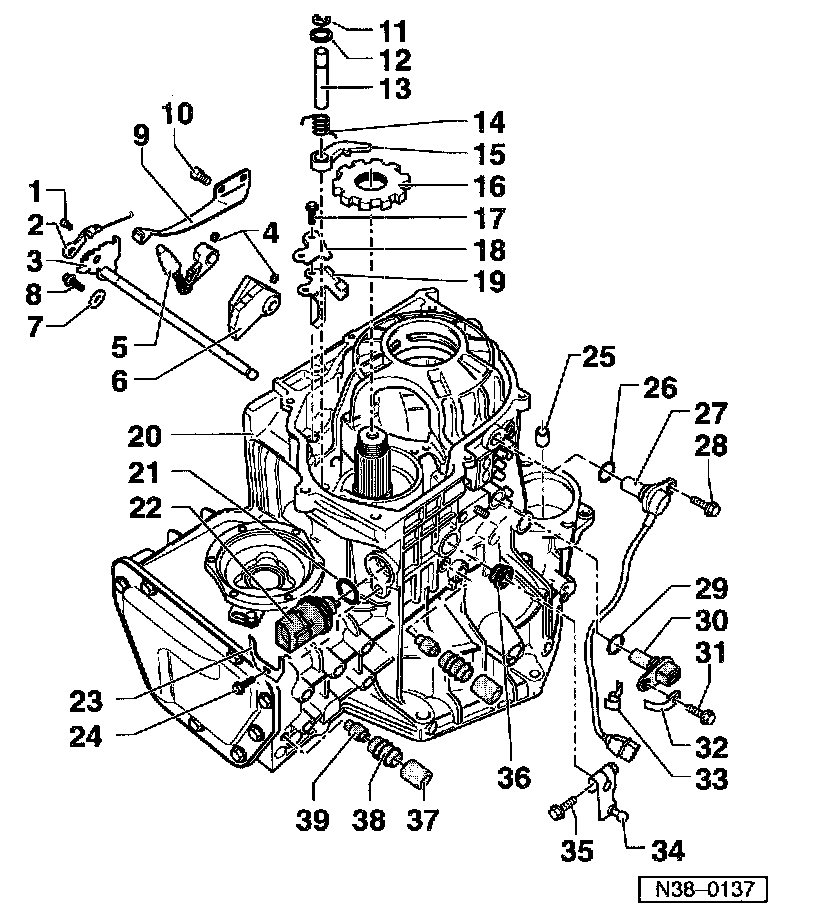

1 Bolt, 4 Nm (35 inch lbs.)
2 Manual selector valve control
3 Selector shaft with selector segment
^ Removing and installing refer to Fig. 2
4 Spring pin
^ Driving out and in refer to Fig. 1
5 Engaging lever Insert together with selector shaft and detent segment
6 Detent segment
^ Insert together with selector shaft and engaging lever
7 Lock washer
8 Bolt, 10 Nm (7 ft. lbs.)
9 Spring for selector segment
10 Bolt, 10 Nm (7 ft. lbs.)
11 O-ring
^ Always replace
^ Only install on shafts with groove for circlip
12 Washer
13 Shaft for detent lever
^ Secured by circlip and bearing cap of drive pinion
14 Return spring
15 Detent lever
^ Inserting with return spring Fig. 4
16 Parking lock gear
^ Rounded side faces teeth of drive pinion
17 Bolt, 14 Nm (10 ft. lbs.)
18 Supporting plate
^ Installing refer to Fig. 3
19 Guide plate
^ Insert before supporting plate Fig. 3
20 Transmission housing
^ It is not necessary to remove drive gear to disassemble parking lock
21 O-ring
^ Always replace
22 Multi-function Transmission Range Switch -F125-
^ Insert with 1 pin each resting on slope of detent segment
^ Tested in vehicle by On Board Diagnostic (OBD).
23 Retainer
^ For multi-function switch
24 Bolt, 10 Nm (7 ft. lbs.)
25 Mounting bushing
^ Removing refer to Fig. 5
^ Installing refer to Fig. 6
26 O-ring
^ Always replace
27 Vehicle Speed Sensor (VSS) -G68- Tested by On Board Diagnostic (OBD)
28 Bolt, 10 Nm (7 ft. lbs.)
29 O-ring
^ Always replace
30 Transmission Speed Sensor (VSS) -G38-
^ Tested by On Board Diagnostics.
31 Bolt, 10 Nm (7 ft. lbs.)
32 Retainer
^ For wire to Vehicle Speed Sensor (VSS) -G68-
^ Secure with bolt -item 31 -
33 Retaining clip
^ For wire to VSS
34 Lever
^ For selector shaft
35 Bolt, 10 Nm (7 ft. lbs.)
36 O-ring
^ Pry out with screwdriver
^ Drive in flush with VW 423
37 Breather cap
38 Breather
39 Breather pipe
^ Remove using pliers
^ Drive to stop with drift VW 460/2

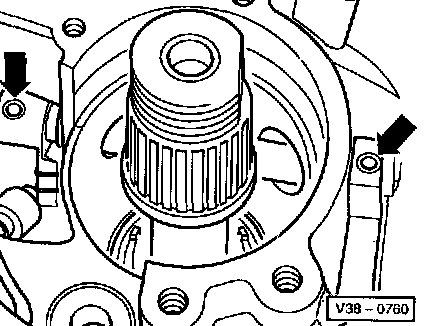

Fig. 1 Spring pins -arrows-, driving out and in
Driving out
^ Only drive out spring pin for engaging lever and spring pin for detent segment far enough to remove selector shaft.
CAUTION!
Driving out pin from engaging lever further may cause it to drop into the planetary gears.
Driving in
^ Drive in spring pins until flush after inserting selector shaft, engaging lever and detent segment.

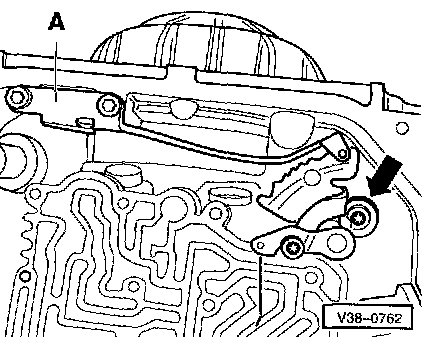

Fig. 2 Selector shaft with selector segments, removing and installing
CAUTION!
Be careful not to damage conductor strip with valve body installed.
^ Remove selector segment spring -A-.
^ Remove screw with washer -arrow-
Washer prevents selector shaft from moving.

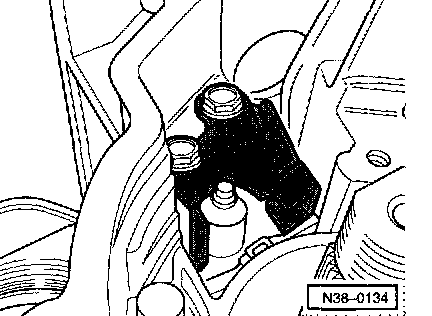

Fig. 3 Guide plate and supporting plate, inserting
Fig. 4 Pawl with return spring, inserting

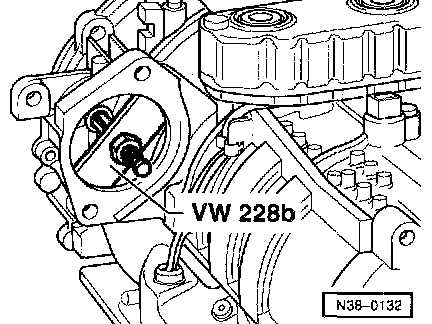

Fig. 5 Starter bushing, removing
Fig. 6 Starter bushing, installing. - Lubricate bushing before installing.
