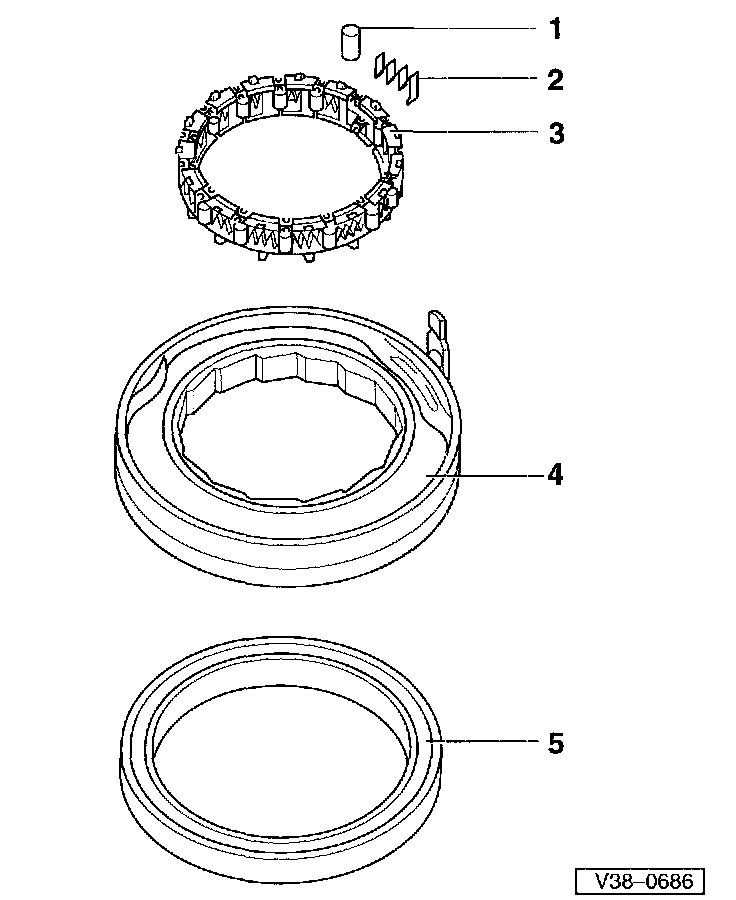

Free Wheel With (B1) Piston

1 Rollers
^ Installing Fig. 1
2 Springs
^ Installing Fig. 1
3 Cage
^ Installing Fig. 2
^ Securing refer to Fig. 3
4 Outer ring
5 Piston
^ Sealing lips are vulcanized to the piston
^ Moisten sealing lips with ATF before installing
^ Turn piston slightly when installing
^ Installed position refer to Fig. 4

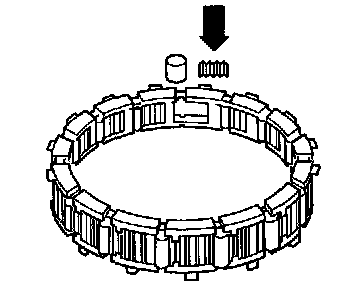

Fig. 1 Rollers and springs. installing
^ Insert springs so that spring -arrow- engages in cage.

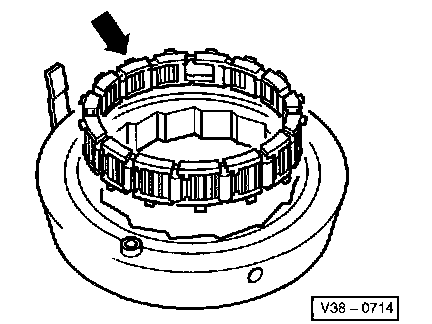

Fig. 2 Cage with springs and rollers, installing
^ Install with large lugs -arrow- facing up.

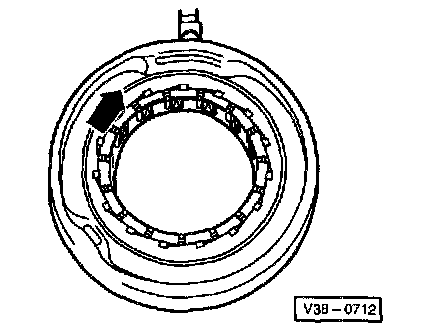

Fig. 3 Cage, securing
^ Secure cage by turning in direction of arrow up to stop.

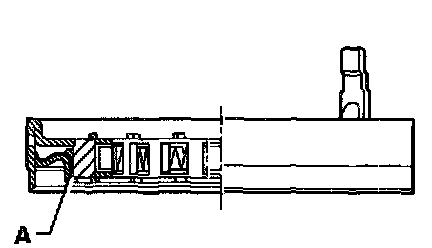

Fig. 4 Piston, installed position
^ Insert piston -A- as shown.
