Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID >> 6 Speed Automatic 09G >> Code Letters, Transmission Application, Ratios, Equipment

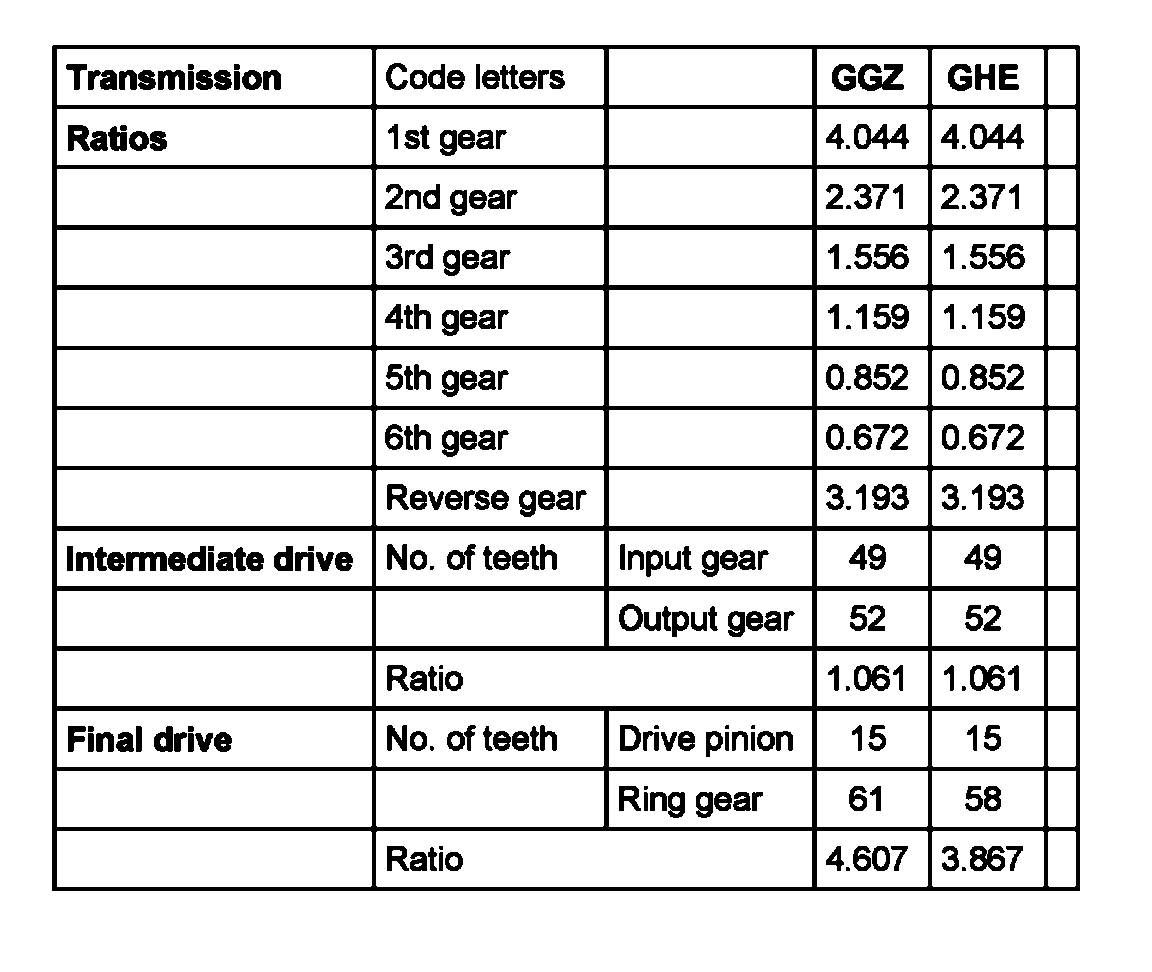

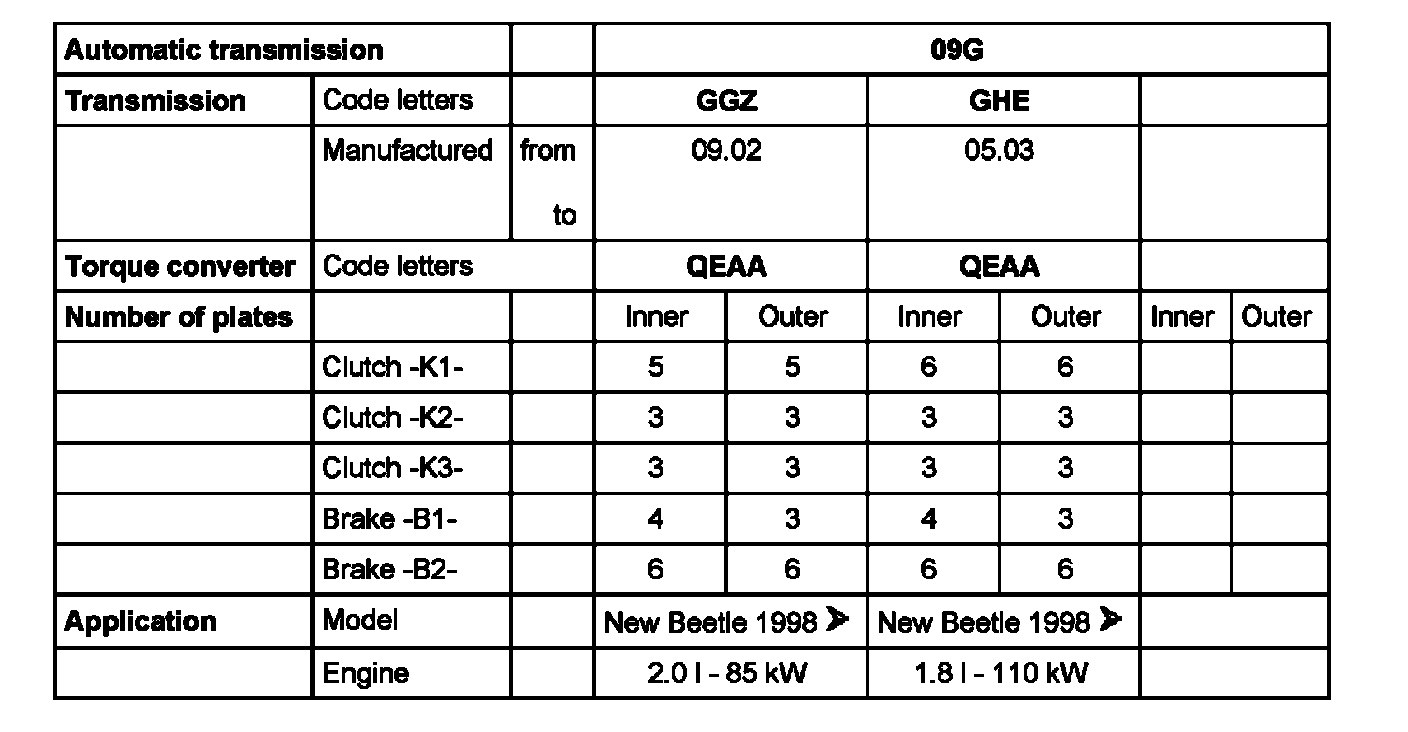

Code Letters, Transmission Application, Ratios, Equipment









Code letters, transmission application, ratios, equipment
