Identification of Transmission

The 4-speed automatic transmission 01M is installed in New Beetle models from 1998 in combination with 4-cylinder engines.

Identification on transmission

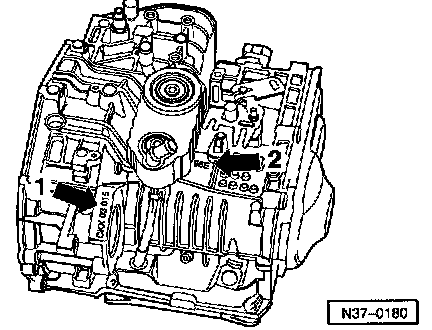

Code letters (arrow 1)

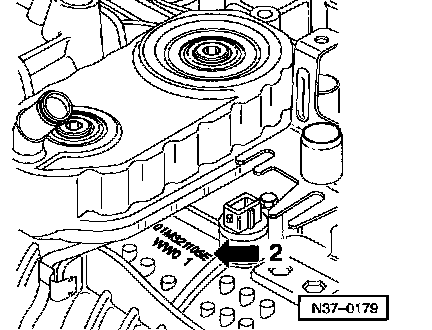

Automatic transmission 01M (arrow 2)





Automatic transmission 01M (arrow 2)

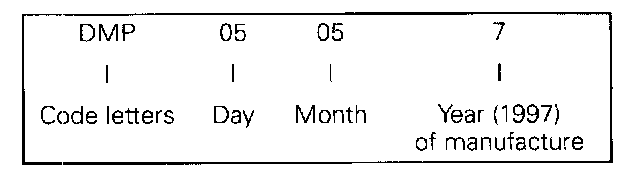

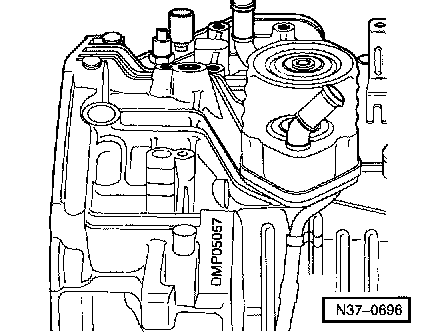

Example:





Transmission code letters are also found on the vehicle data plate.
