Steering Wheel - Assembly Overview

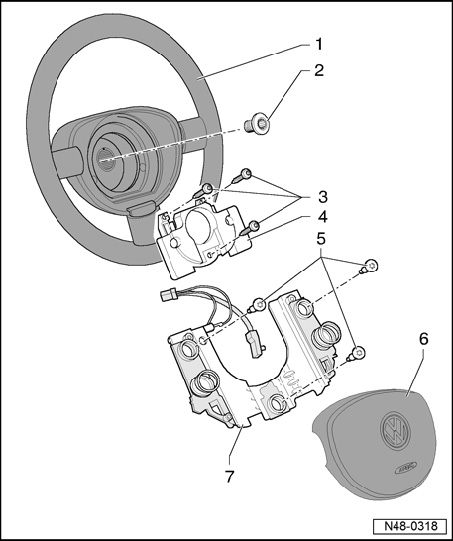

Steering Wheel - Assembly Overview







1 - Steering wheel
- Observe installation position when installing

2 - Socket head bolt
- 60 Nm
- Coated with locking compound
- May be used up to five times
- Press in a punch indentation after each installation

3 - Torx bolt
- 1.5 Nm

4 - Vibration balancer
- Not installed in all vehicles.

5 - Torx bolt
- 5 Nm

6 - Airbag unit
7 - Securing plate
