Steering Column Cross Member, Assembly Overview

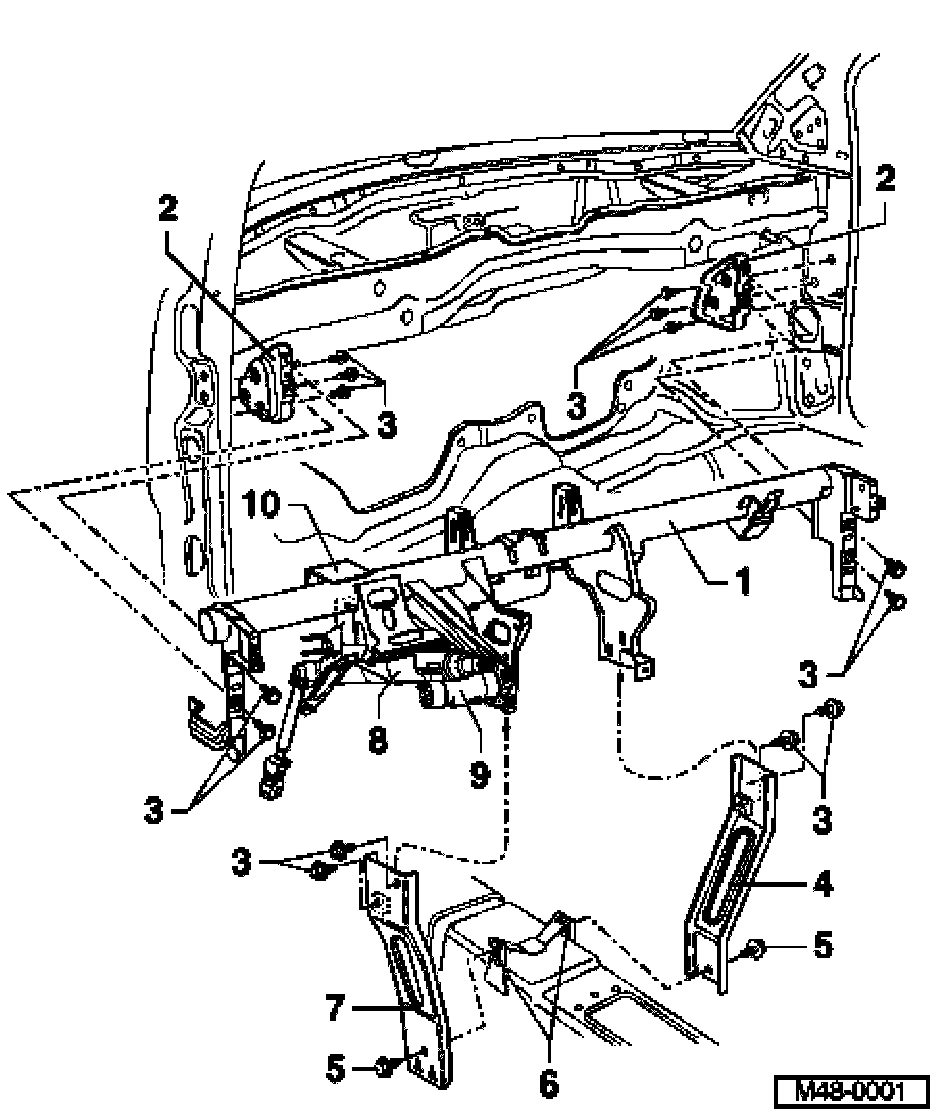

Cross member for steering column, assembly overview
1. Cross member for steering column
2. Adjustment bracket
3. Hex. bolt
^ 25 Nm (18.4 ft. lbs.)
4. Strut, right
5. Hex. bolt
6. Speed nut
7. Strut, left
8. Steering column
9. Steering lock housing
10. Bulkhead mounting
