Vehicles With Pump In Upper Section

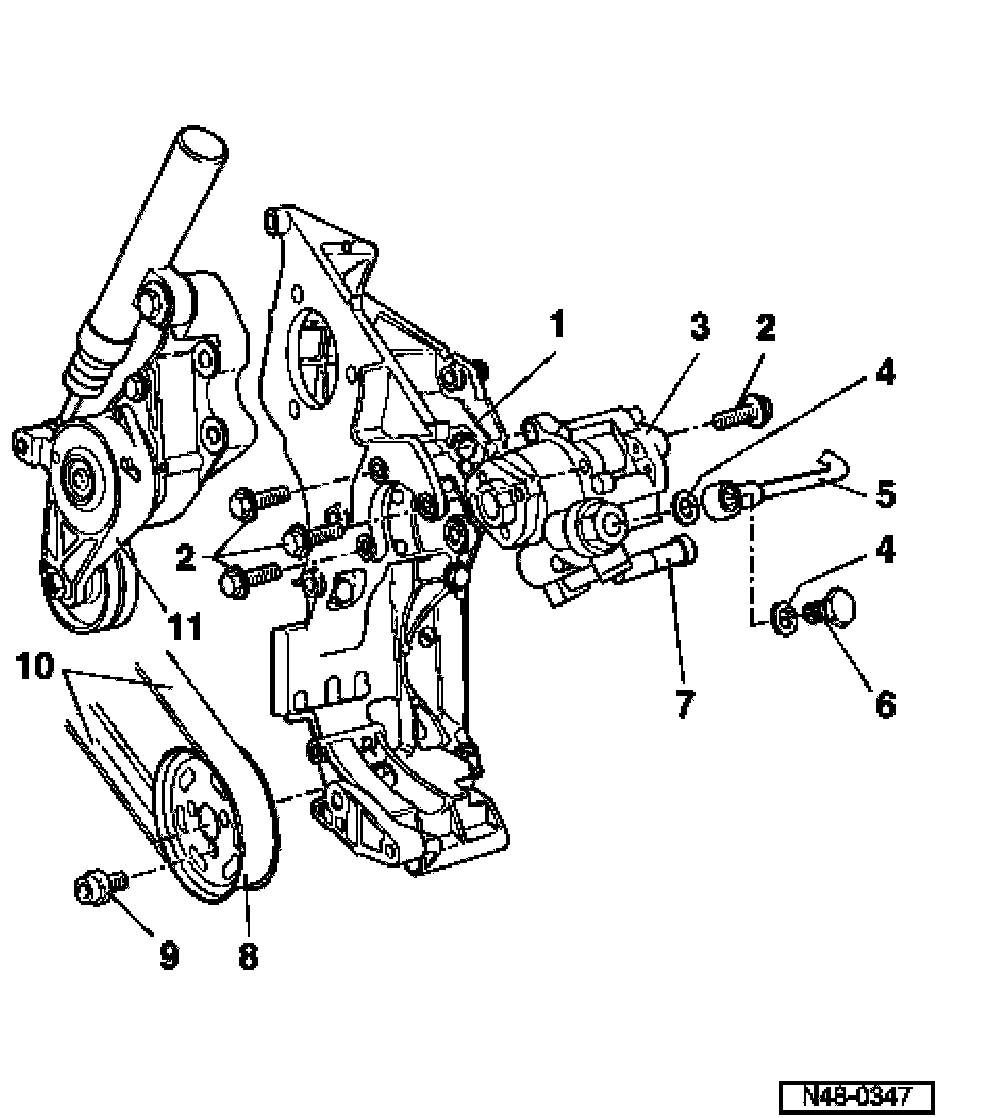

Power steering pump in upper section, assembly overview





Vehicles with power steering pump in upper section
1. Bracket
2. Hex. bolt
^ 25 Nm (18 ft. lbs.)
3. Power steering pump
^ Before installing fill with oil
4. Seals
^ Always replace
5. Pressure hose
6. Banjo bolt
^ 38 Nm (28 ft. lbs.)
7. Suction hose
8. Belt pulley
9. Socket-head bolt
^ 25 Nm (18 ft. lbs.)
10. Ribbed belt
^ Mark the direction of travel using a crayon or marker before removing the ribbed belt. Reinstalling a used belt in the opposite direction could damage the belt.
^ When installing the belt, make sure that it is correctly seated in the pulleys.
^ Determine parts number from Parts Supplier
^ Removing and belt routing, Refer to Engine, Drive belt, Service and Repair
^ Checking condition
- Maintenance Manual; Checking condition of ribbed belts
11. Ribbed belt tensioner
