Power Steering Pump With Hydraulic Lines and Hoses

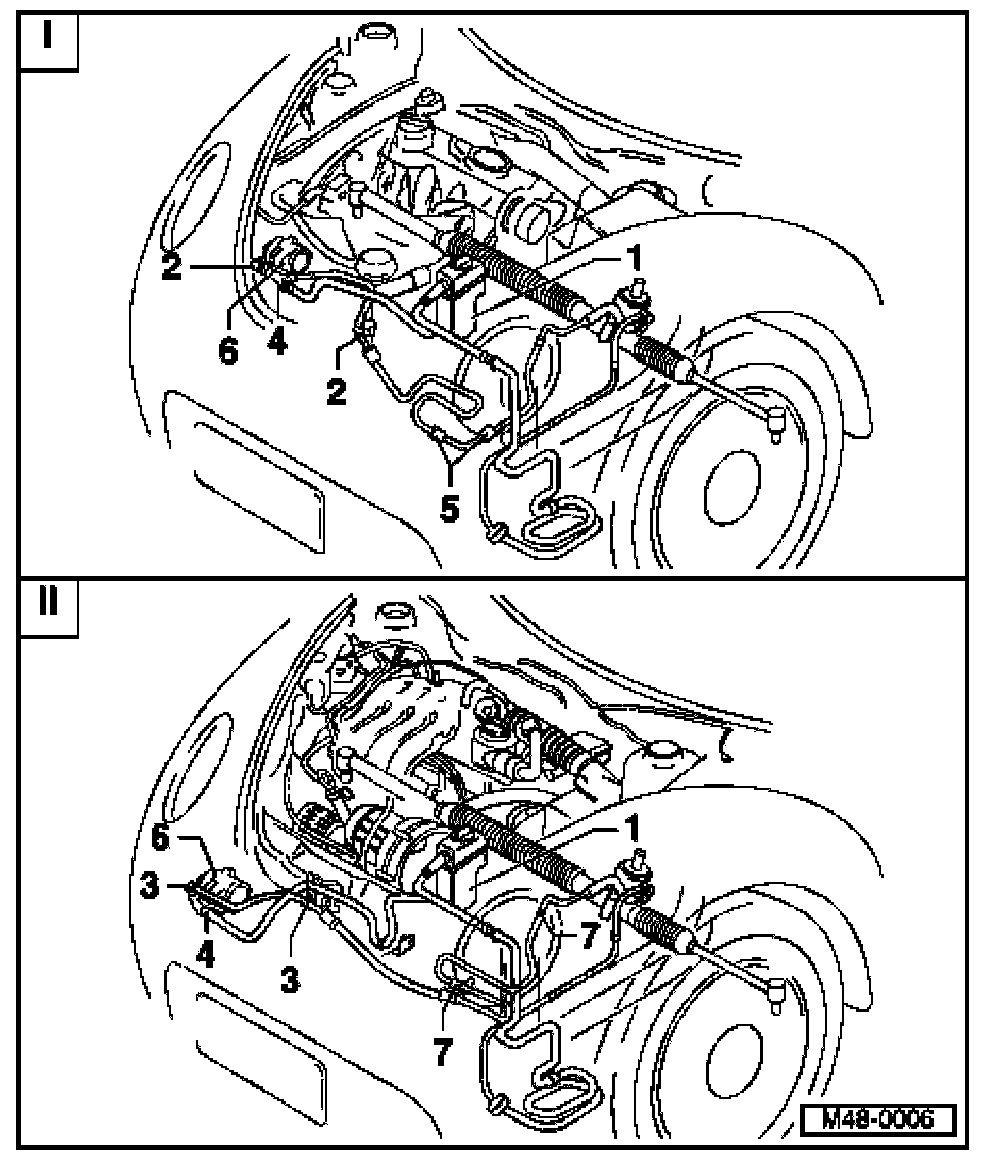

Power steering pump with hydraulic lines and hoses, assembly overview





I - Vehicles with power steering pump in upper section
II Vehicles with power steering pump in lower section

1. Reservoir
2. Securing pressure hose/line
^ Vehicles with TDI engine and A/C
3. Securing pressure hose/line
^ Vehicles with 2.0 liter or TDI engine without A/C
^ Vehicles with 1.8 liter turbo engine and A/C
^ Vehicles with 2.0 liter and A/C
^ Vehicles with 1.8 liter turbo engine without A/C
4. Securing suction hose
5. Securing pressure hose/line
On 5-speed manual transmission 02J
6. Power steering pump
7. Securing pressure hose/line
On automatic transmission
