Power Steering Fluid Reservoir: Service and Repair

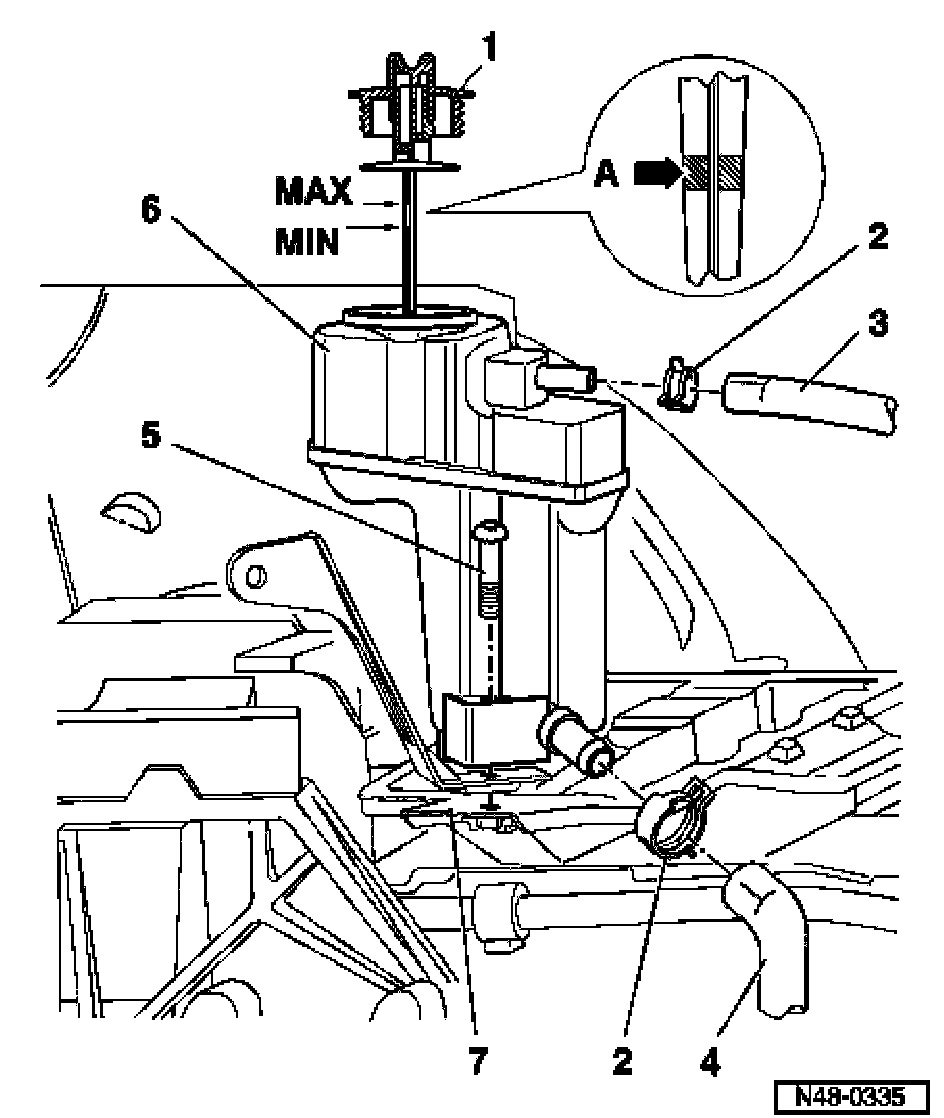

Reservoir, disassembling and assembling





1. Cap with dip stick
^ Oil level with engine warm, temperature approx. 50° C (122° F): between MIN and MAX marks arrow -A-
^ Check oil level with cap screwed on
^ Twist to open (e.g. using pry bar for leverage)
^ Oil level with engine cold, arrow -A-: not over MIN marking
2. Hose clamp
3. Return hose
4. Suction hose
5. Bolt, 10 Nm (7 ft. lbs.)
6. Reservoir
7. Battery console

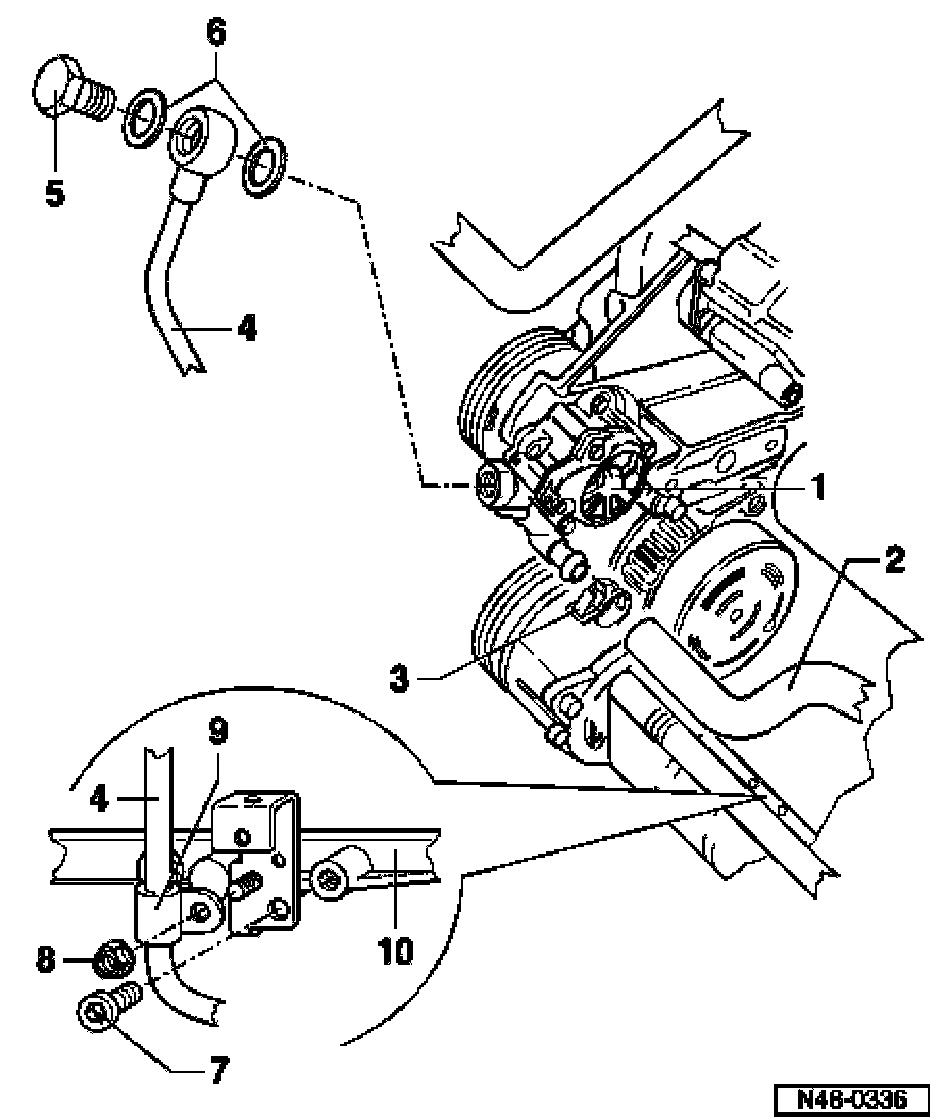

Securing pressure line and suction hose on vehicles with TDI engine and A/C
1. Power steering pump
^ Checking delivery pressure, Refer to Power Steering Pump, Testing and Inspection
^ Before installing fill with oil
2. Suction hose
3. Hose clamp
4. Pressure hose
5. Banjo bolt
^ 38 Nm (28 ft. lbs.)
6. Sealing rings
^ Always replace
7. Socket-head bolt
^ 40 Nm (30 ft. lbs.)
8. Hex. nut
^ 22 Nm (16 ft. lbs.)
9. Mounting bracket
10. Cylinder block

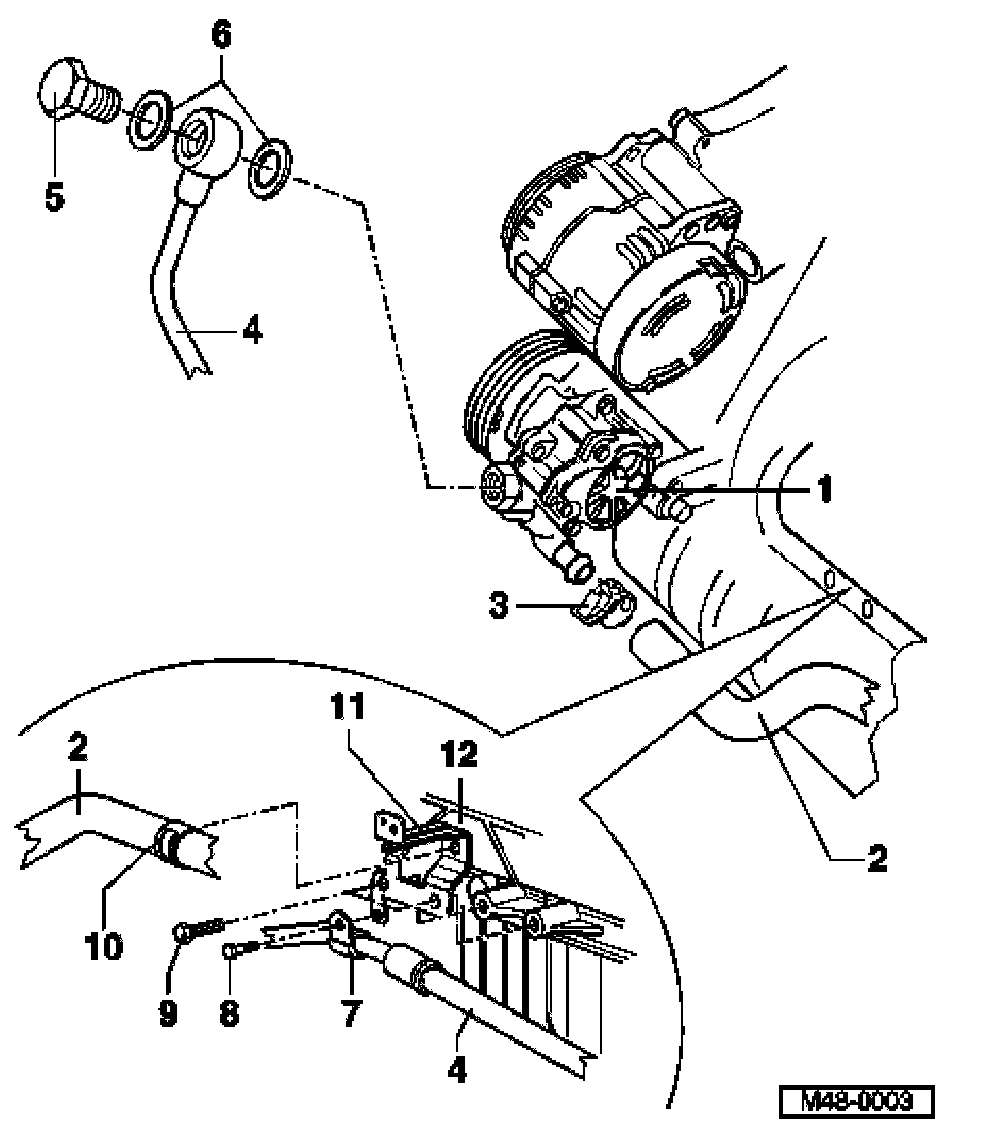

Securing pressure line and suction hose on vehicles with 2.0 liter and TDI engine without A/C, and vehicles with 1.8 liter Turbo engine and A/C
1. Power steering pump
^ Before installing fill with oil
2. Suction hose
3. Hose clamp
4. Pressure hose
5. Banjo bolt
^ 38 Nm (28 ft. lbs.)
6. Sealing rings
^ Always replace
7. Mounting bracket
8. Hex. bolt
^ 22 Nm (16 ft. lbs.)
9. Hex. bolt
^ 40 Nm (30 ft. lbs.)
10. Clamp
11. Mounting bracket
12. Cylinder block

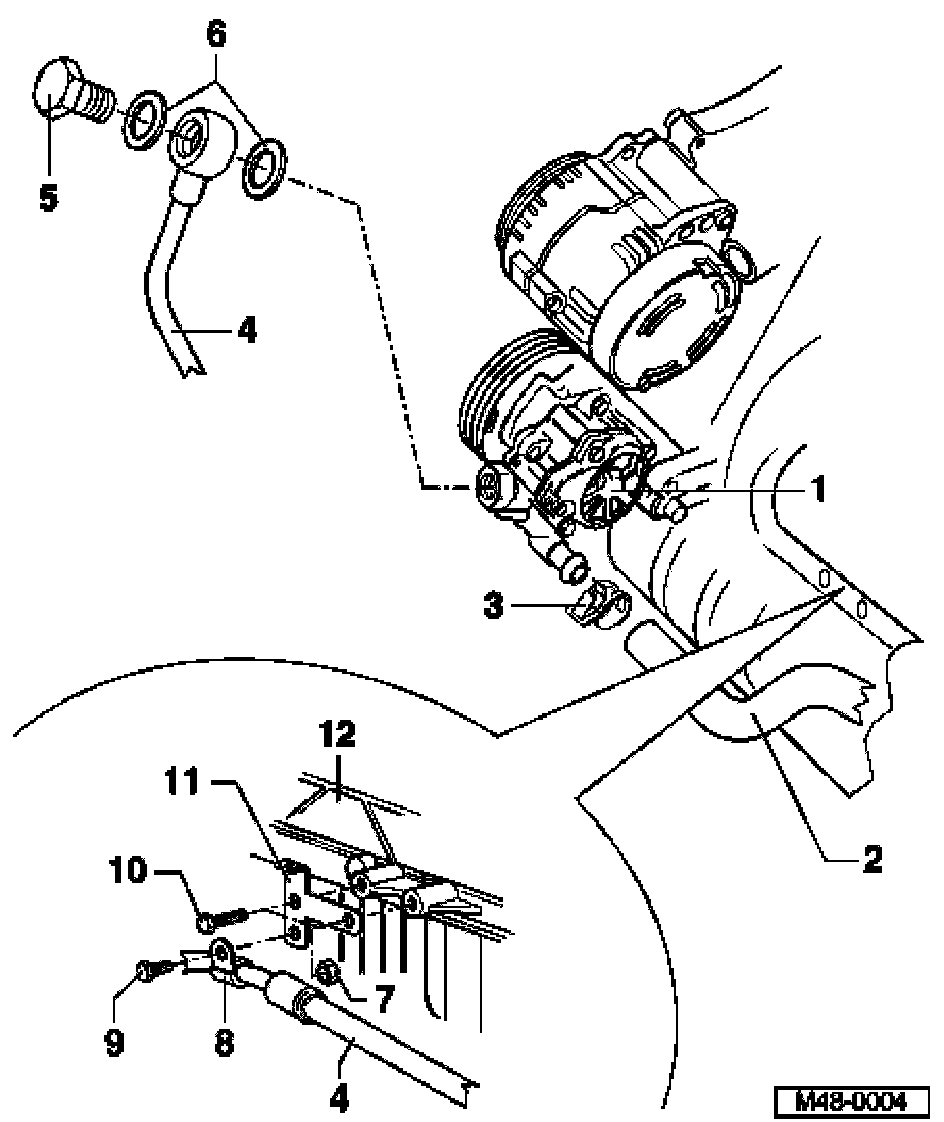

Securing pressure line and suction hose on vehicles with 2.0 liter and A/C
1. Power steering pump
^ Before installing fill with oil
2. Suction hose
3. Hose clamp
4. Pressure hose
5. Banjo bolt
^ 38 Nm (28 ft. lbs.)
6. Sealing rings
^ Always replace
7. Lock nut
8. Mounting bracket
9. Hex. bolt
^ 22 Nm (16 ft. lbs.)
10. Hex. bolt
^ 40 Nm (30 ft. lbs.)
11. Mounting bracket
12. Cylinder block

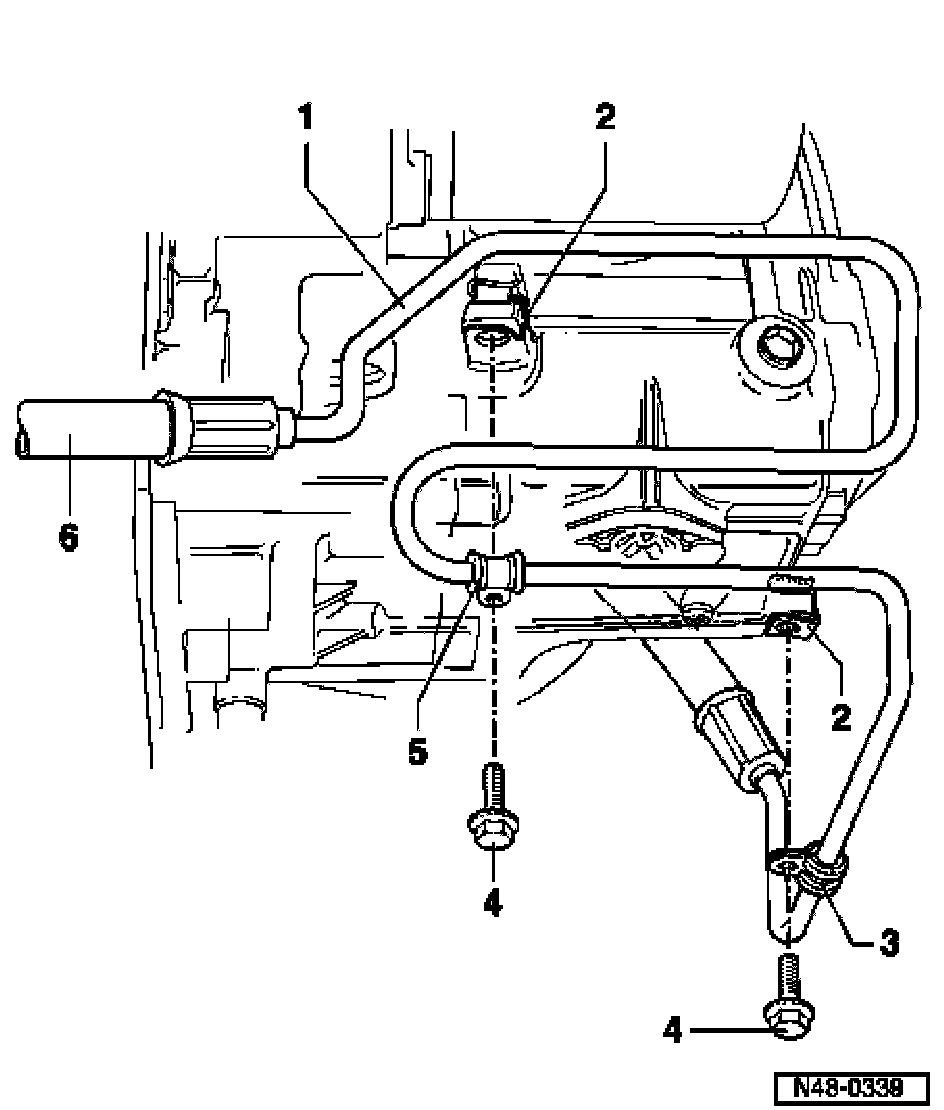

Securing pressure line to 5-speed manual transmission 02J
1. Pressure line
2. Speed nut
3. Mounting bracket
4. Hex. bolt
^ 22 Nm (16 ft. lbs.)
5. Mounting bracket
6. Pressure hose

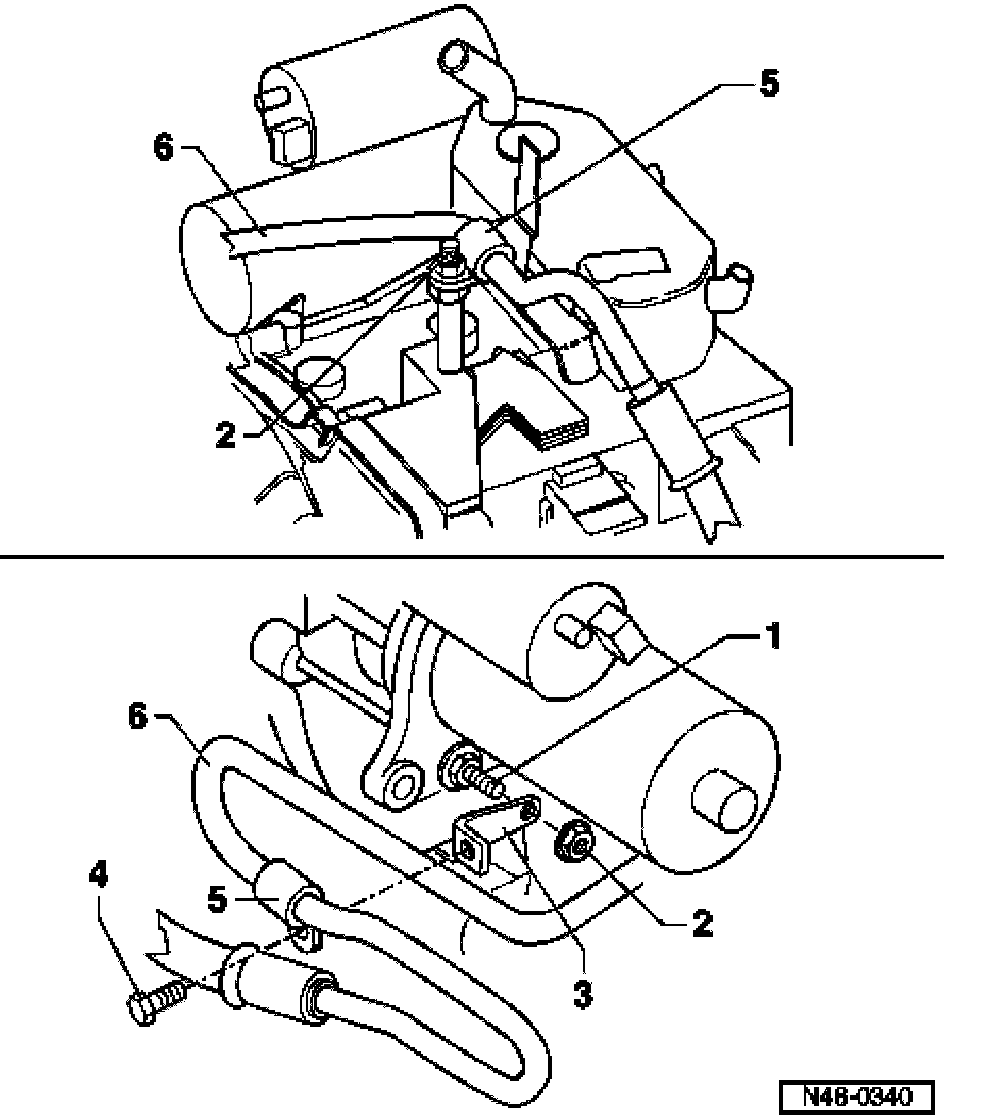

Securing pressure line to automatic transmission
1. Securing bolt on starter
2. Hex. nut
^ 22 Nm (16 ft. lbs.)
3. Mounting bracket
4. Hex. bolt
^ 22 Nm (16 ft. lbs.)
5. Mounting bracket
6. Pressure line
