Vehicle Alignment Specifications
Vehicle Alignment Specifications
Vehicle alignment specifications

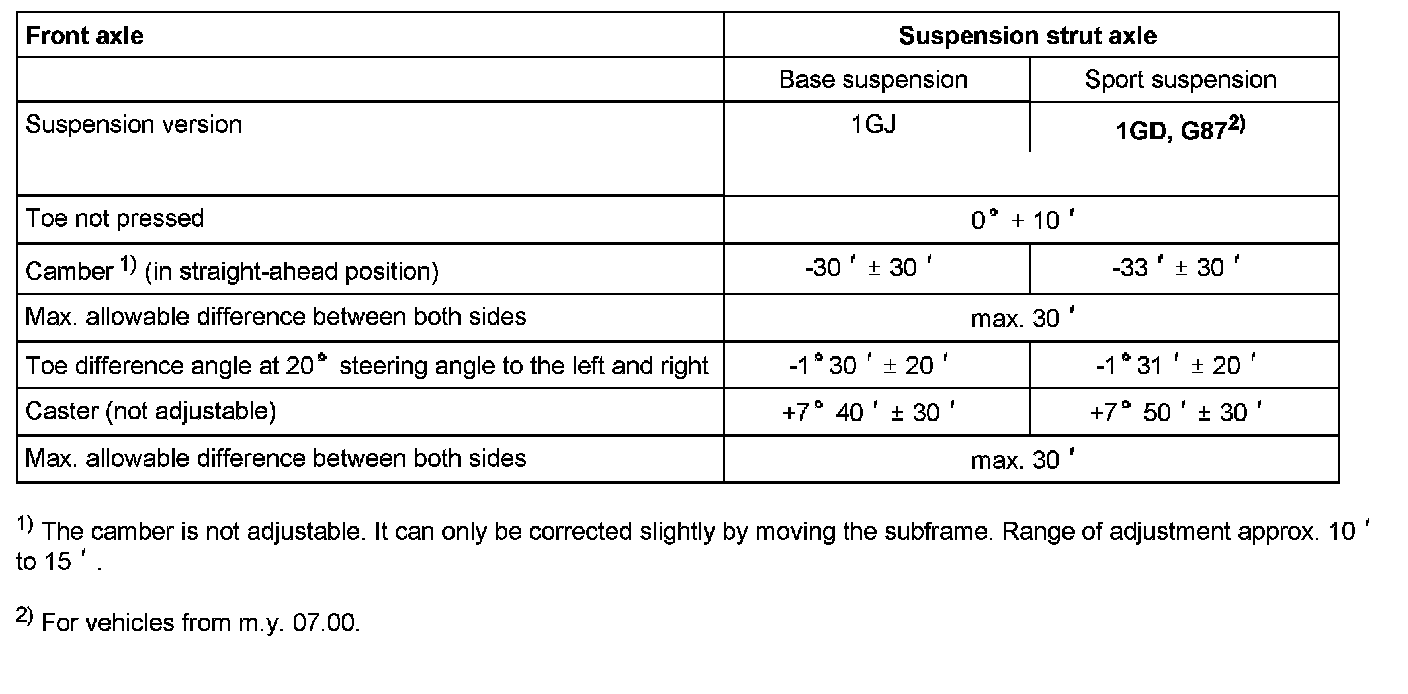

Front Axle

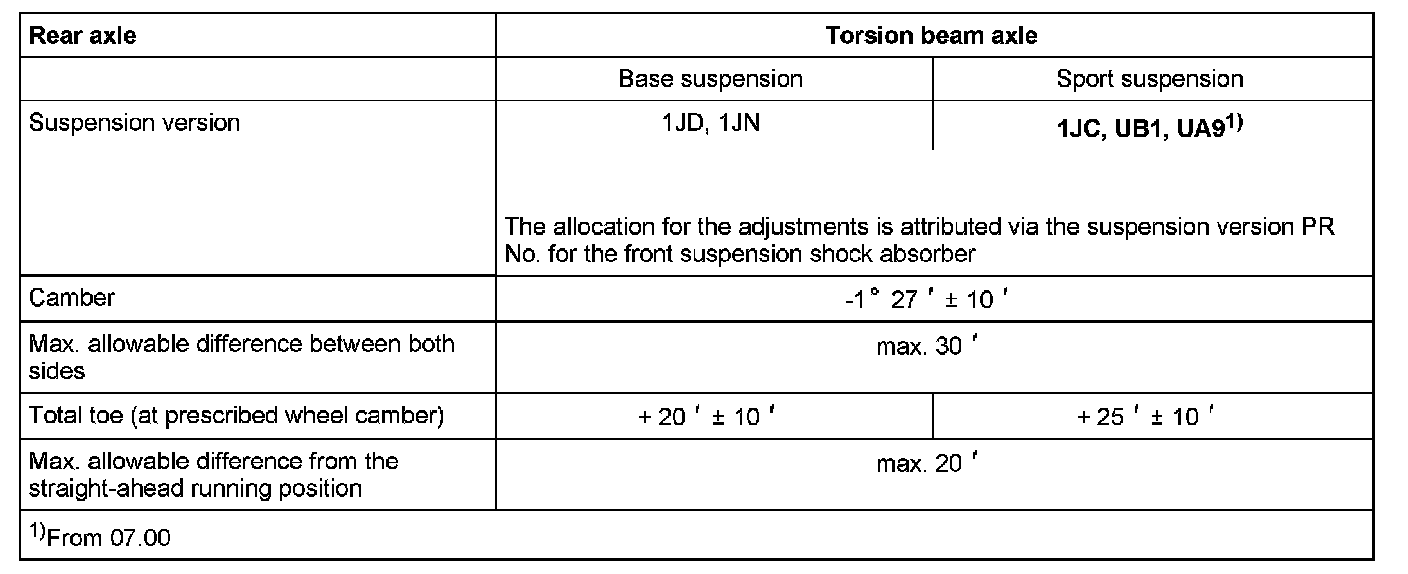

Rear axle
