Torque & Tightening Sequence

Tighten cylinder head in tightening sequence as follows:
- Pretighten all bolts to 40 Nm (30 ft. lbs.)
- Then tighten all bolts a 1/4 turn (90°) further using a rigid wrench.
- Then tighten all bolts again a 1/4 turn (90°) further.

For additional information regarding Cylinder Head Bolts, refer to Service and Repair. Cylinder Head, Removing and Installing

Cylinder head for distortion Max permissible distortion: 0.1 mm

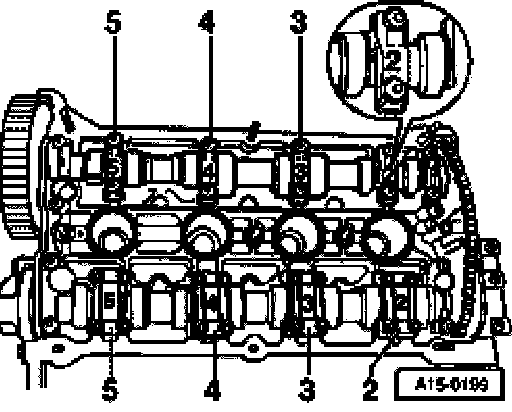

Camshaft Bearing Caps bolts 10 Nm (take note of dowel sleeves).
Camshaft sprocket bolt 65 Nm
