Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications

System Specifications



5 Speed Manual 02J

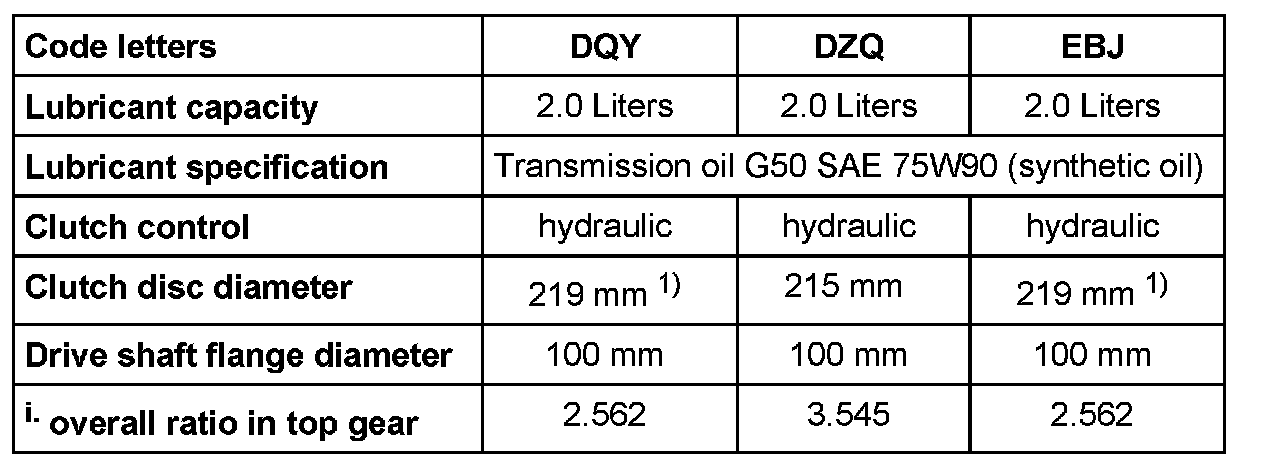

CLUTCH SPECIFICATIONS
