Transmission Specifications and Clearances

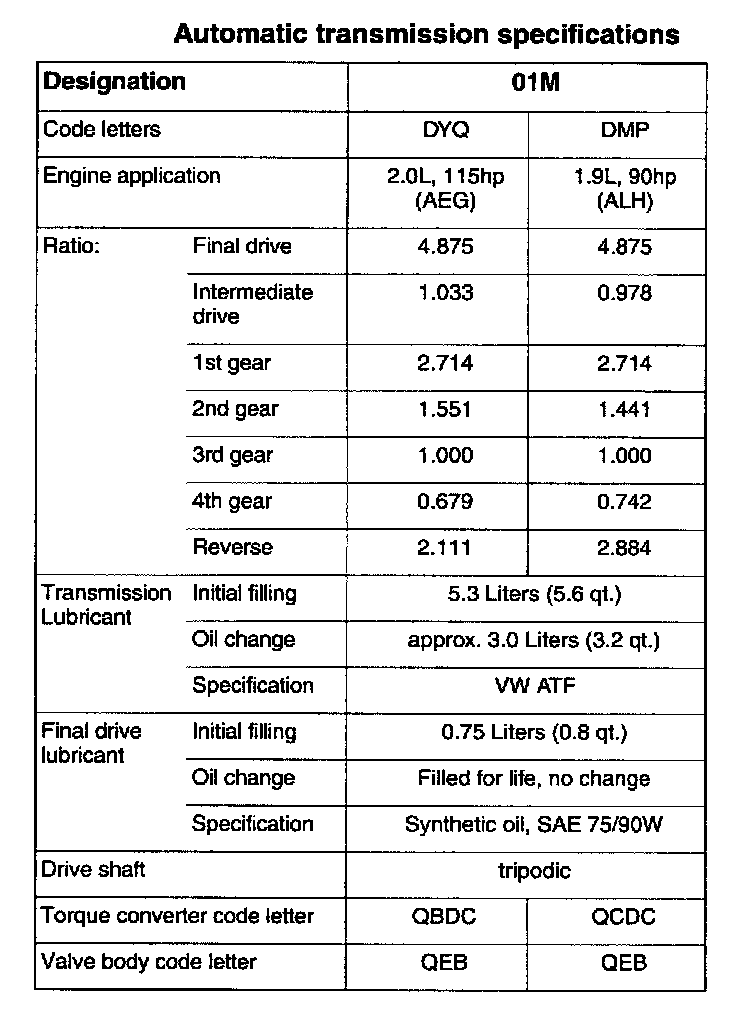

Automatic Transmission specifications

Transmission Specifications:
