New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
4 Speed Automatic 01M
>>
Technical Data
Technical Data
CODE LETTERS, TRANSMISSION ALLOCATION, RATIOS, EQUIPMENT
- 01M Transmission -

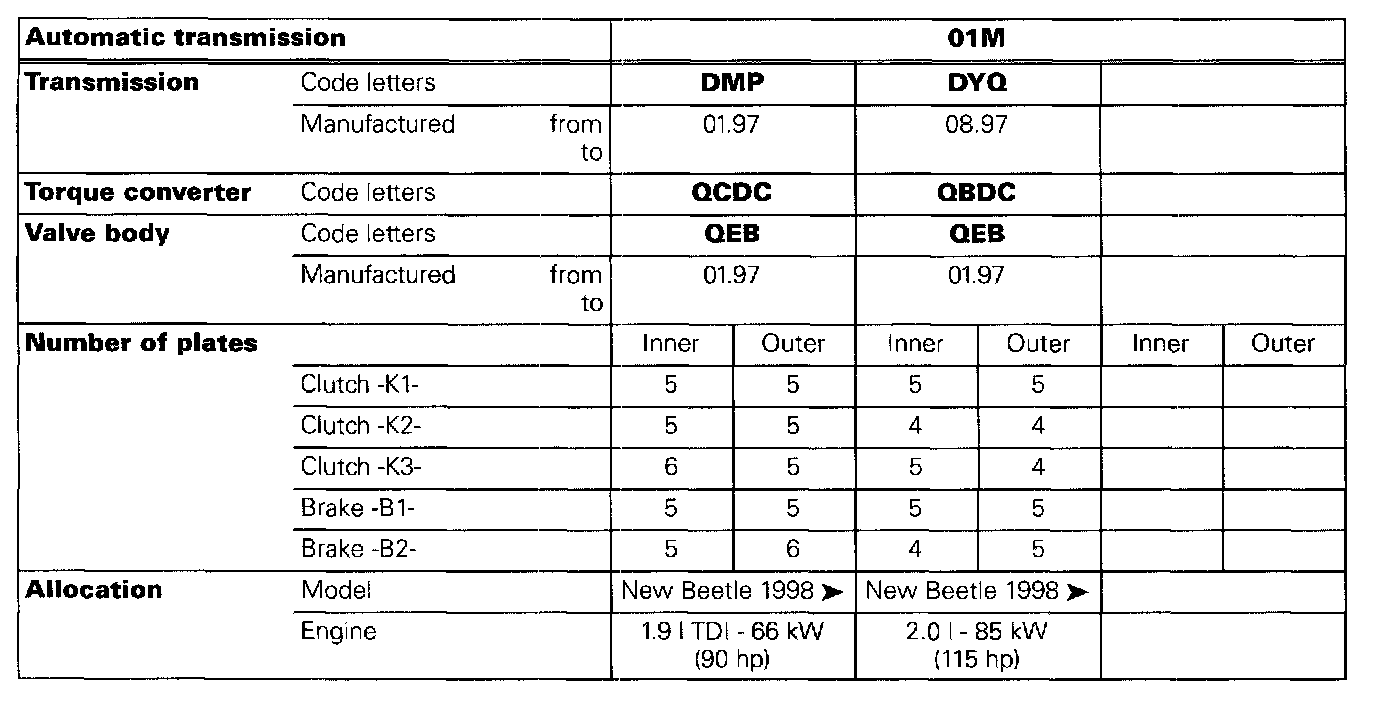

01M Automatic Transmission Code Letters DMP, DYQ:

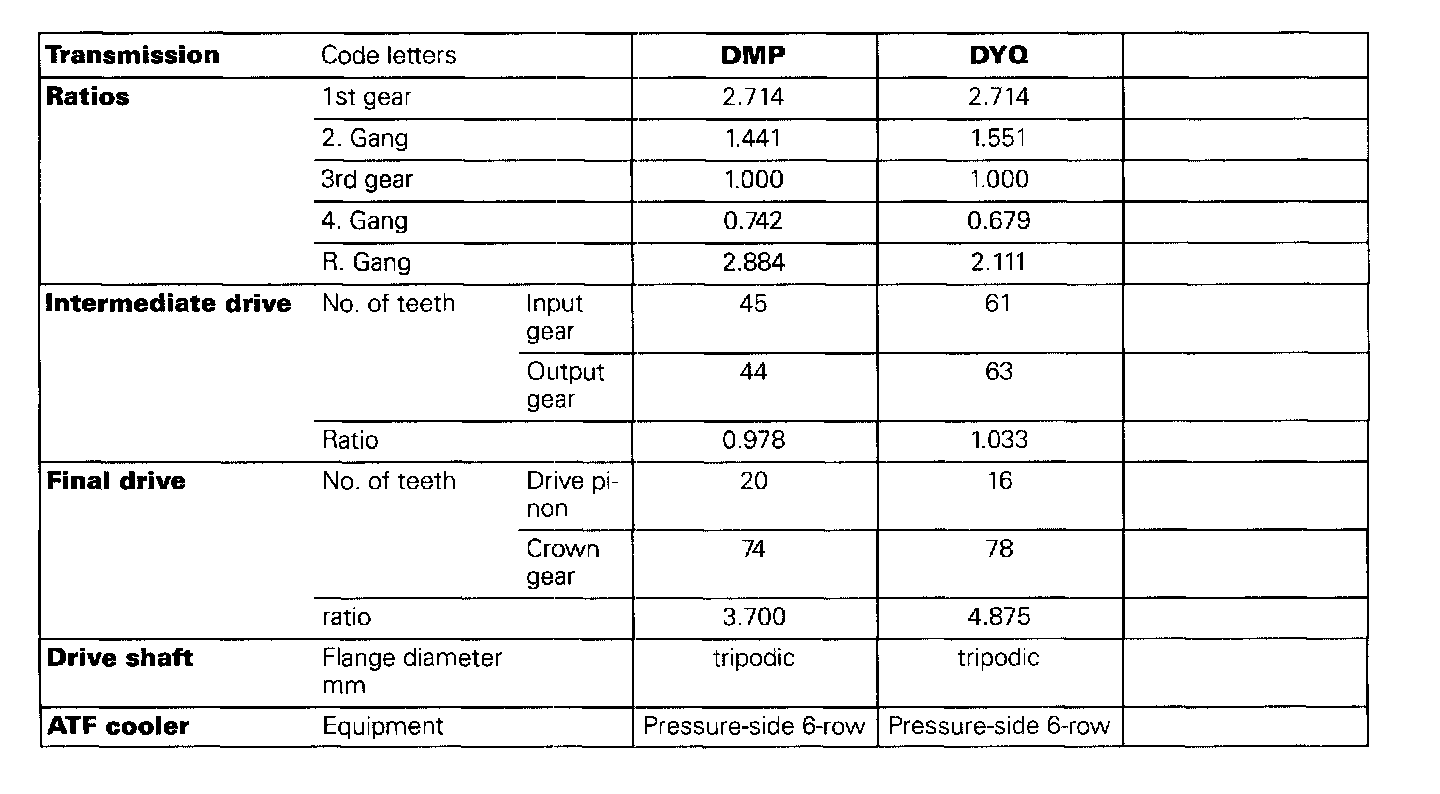

01M Automatic Transmission Ratios Code Letter DMP, DYQ:
