Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4 Speed Automatic 01M >> Code Letters, Transmission Allocation, Ratios, Equipment

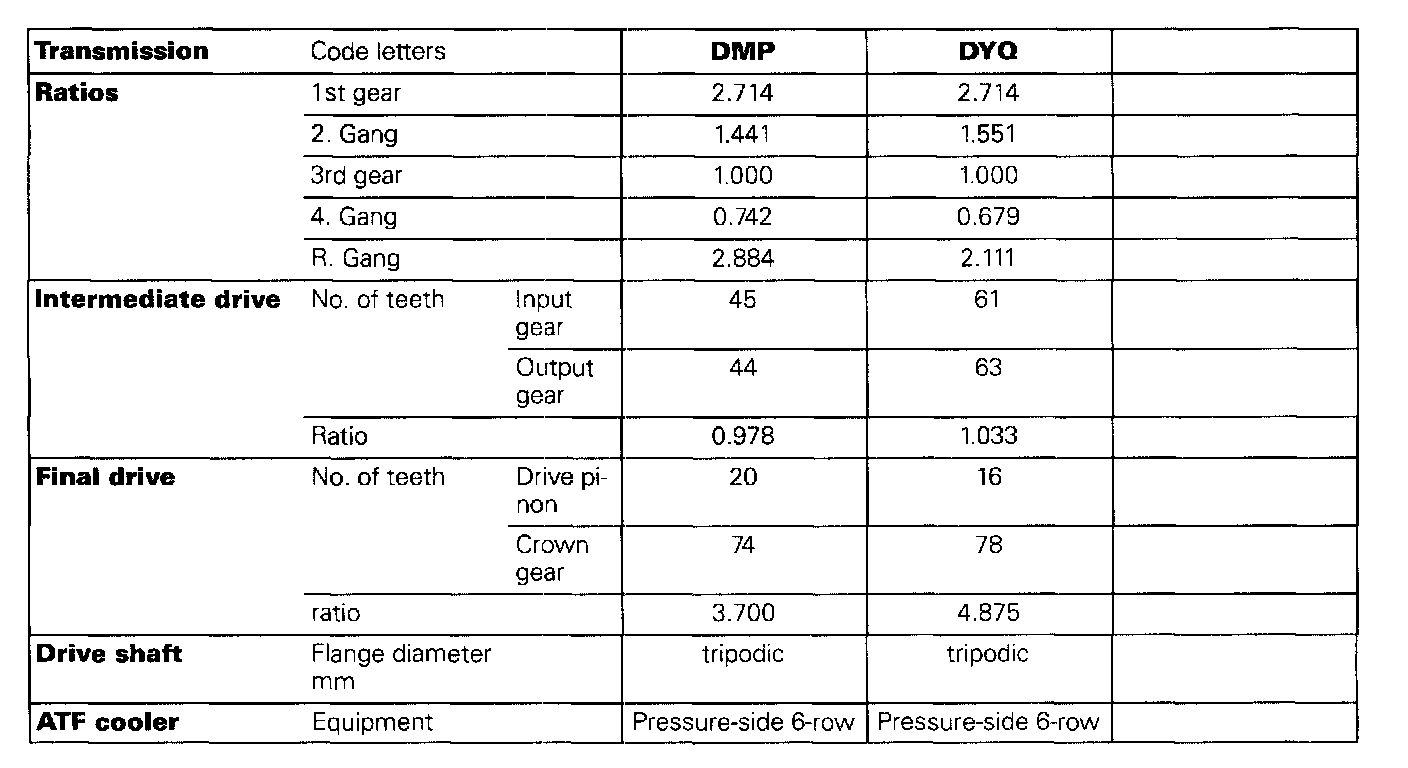

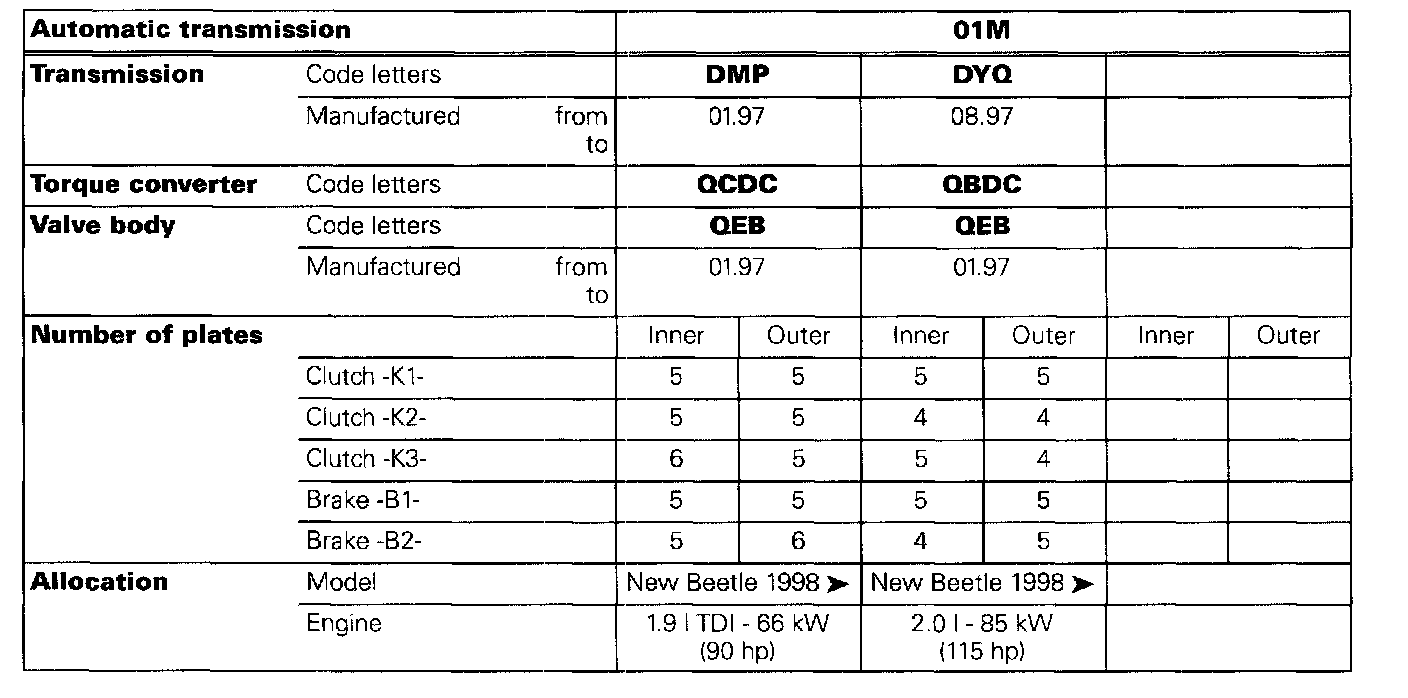

Code Letters, Transmission Allocation, Ratios, Equipment








Code Letters, Transmission Allocation, Ratios, Equipment
