Headlamp Switch: Service and Repair

Light switch, removing and installing







Removing
- Turn rotary knob of light switch to "0" position.

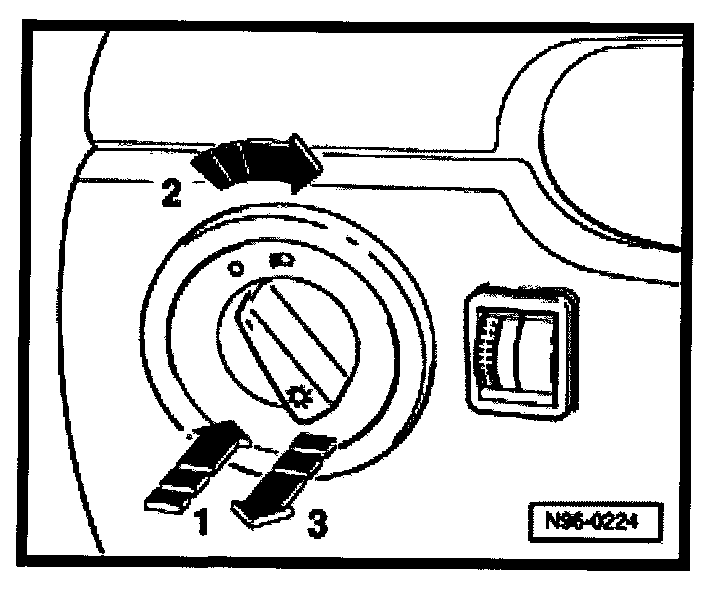

- Press rotary knob inward (arrow -1-) and turn slightly to right (arrow -2-).
- Hold rotary knob in this position and by pulling on rotary knob remove light switch out of instrument panel (arrow -3-).
- Disconnect electrical connection.







Installing
- Connect electrical connection.

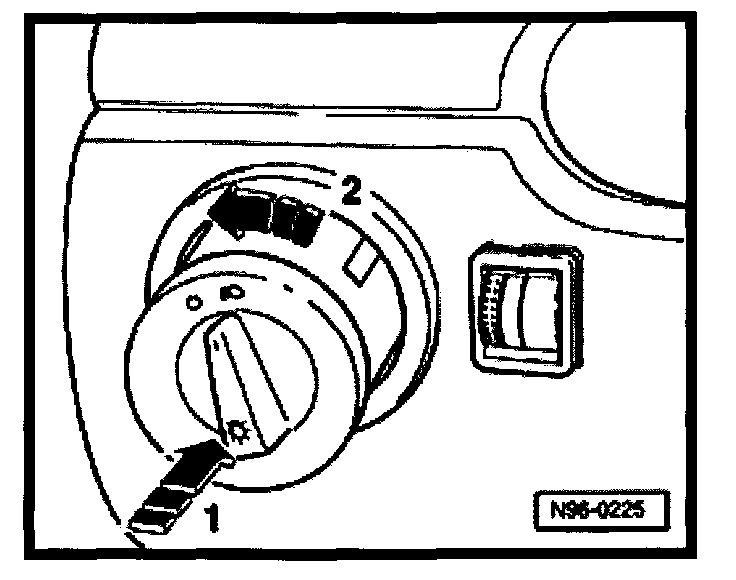

- Hold light switch and press rotary knob inward (arrow -1-) and turn slightly to left (arrow -2-).
- Hold rotary knob in this position and slide light switch into instrument panel.
- Turn rotary knob to "0" position, release and engage switch.
