Passive Occupant Detect System (PODS), Upper Assembly Overview

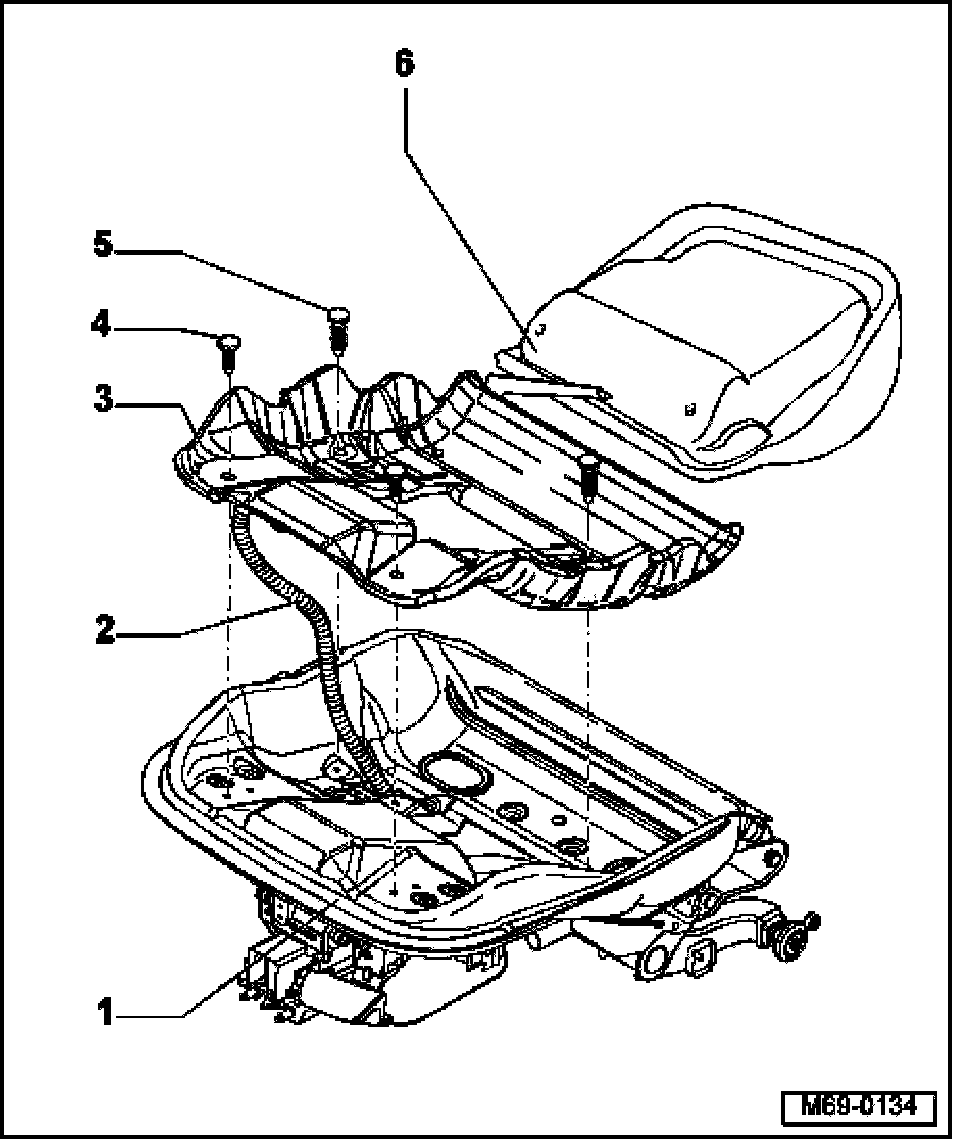

Passive Occupant Detection System (PODS) (USA), Upper View Assembly Overview







1 Seat frame
2 Pressure Transfer Hose
3 Sensor mat
- Sensor mat and seat padding are one unit and must not be separated.
4 Clip, forward
- Qty. 2
- Replace clips included in replacement kit
5 Clip, rear
- Qty. 2
- Replace clips included in replacement kit
6 Seat padding
- Sensor mat and seat padding are one unit and must not be separated.
