Drivers Front Airbag Crash Sensor G283 and Front Passengers Front Airbag Crash Sensor G284 - Removing and Installing

Drivers Front Airbag Crash Sensor G283 And Front Passengers Front Airbag Crash Sensor G284 - Removing And Installing

Removing

CAUTION:
- Observe safety precautions for working on airbags
- Never let anyone sit in the passenger compartment when the airbag system is being worked on, especially when the airbag system is being connected to a power source or the battery is being reconnected.

- Switch ignition off.
- Disconnect battery ground (GND) strap
- Remove front part

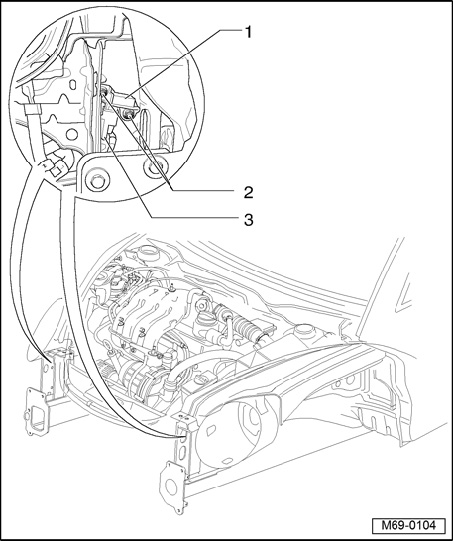

- Disconnect harness connector - 3 - and remove combination nuts - 2 - (6 Nm).







Installing

CAUTION:
- Make sure no one is in the vehicle.
- Never let anyone sit in the passenger compartment when the airbag system is being worked on, especially when the airbag system is being connected to a power source or the battery is being reconnected.


- Close doors.
- Connect battery ground (GND) strap
- Switch ignition on after installing all components.


NOTE: After connecting battery, vehicle options (radio, clock, electric window regulator) must be checked according to repair manual and/or user manual.
