Drivers Front Airbag Crash Sensor G283 and Front Passengers Front Airbag Crash Sensor G284 - Assembly Overview

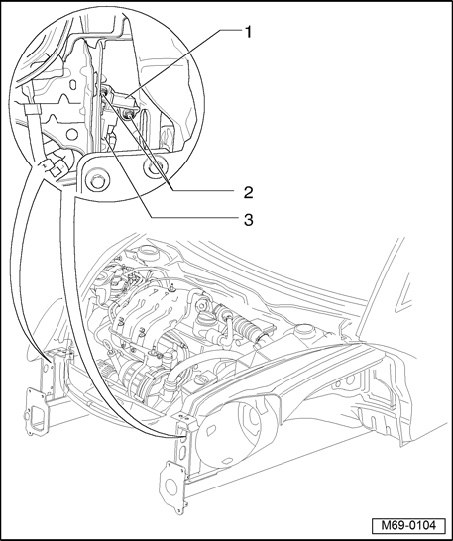

Drivers Front Airbag Crash Sensor G283 And Front Passengers Front Airbag Crash Sensor G284 - Assembly Overview







1 - Left front crash sensor and right front crash sensor
- in front longmember

2 - Combination nut
- 6 Nm

3 - Connector
