Crash Sensor For Drivers Side and Passengers Side Side Airbag - Assembly Overview (Convertible)

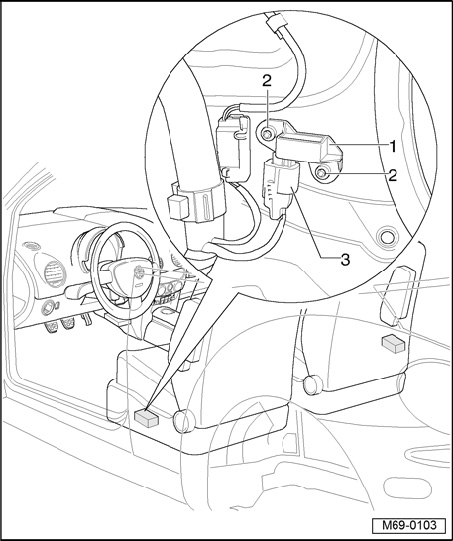

Crash Sensor For Drivers Side And Passengers Side Side Airbag -assembly Overview (Convertible)







1 - Drivers side and passengers side crash sensor
2 - Bolt
- 6 Nm

3 - Connector
