Convertible

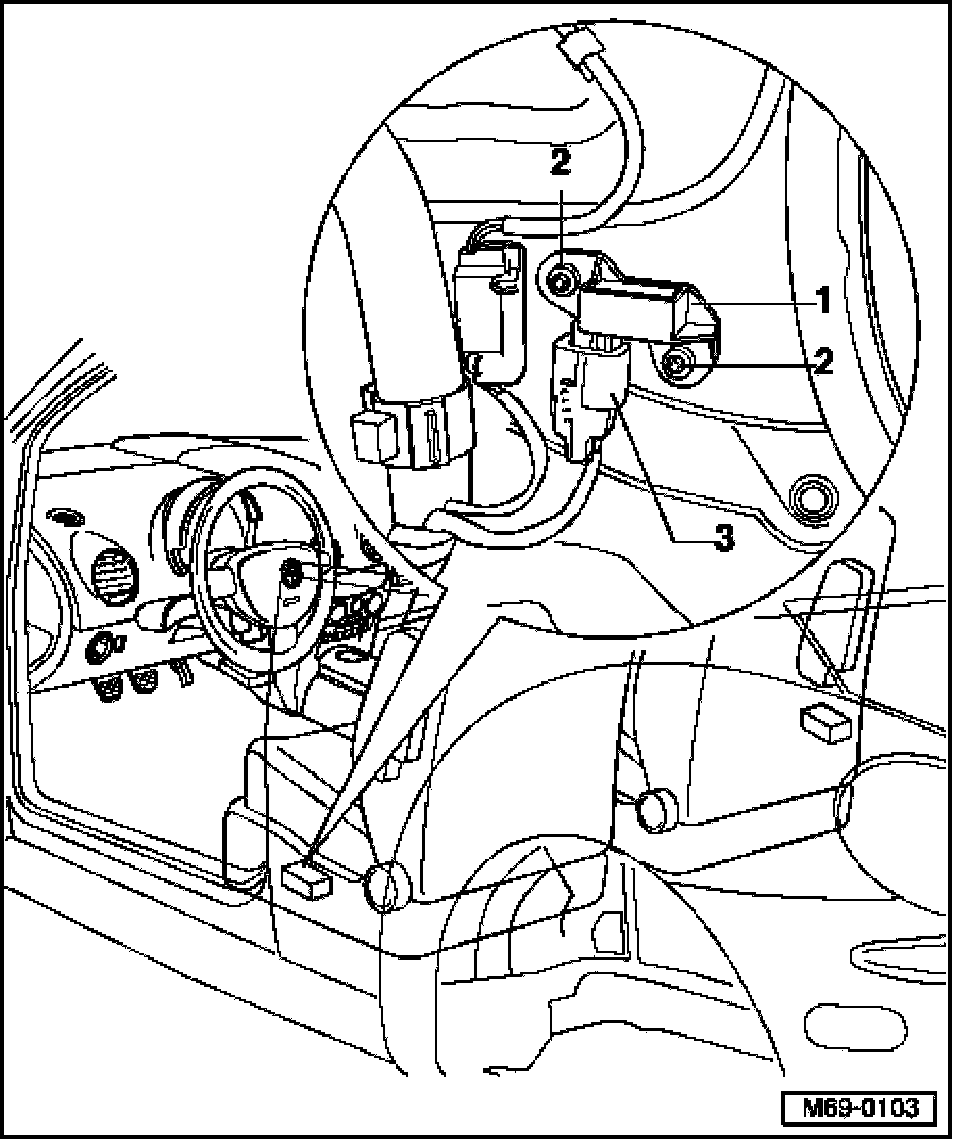

Side Airbag Sensor For Driver's/front Passenger's Sides (Convertible), Assembly Overview







1 Sensor, driver's/front passenger's sides
2 Bolt/screw
- 6 Nm
3 Connector.
