Front Airbag Sensor, Assembly Overview

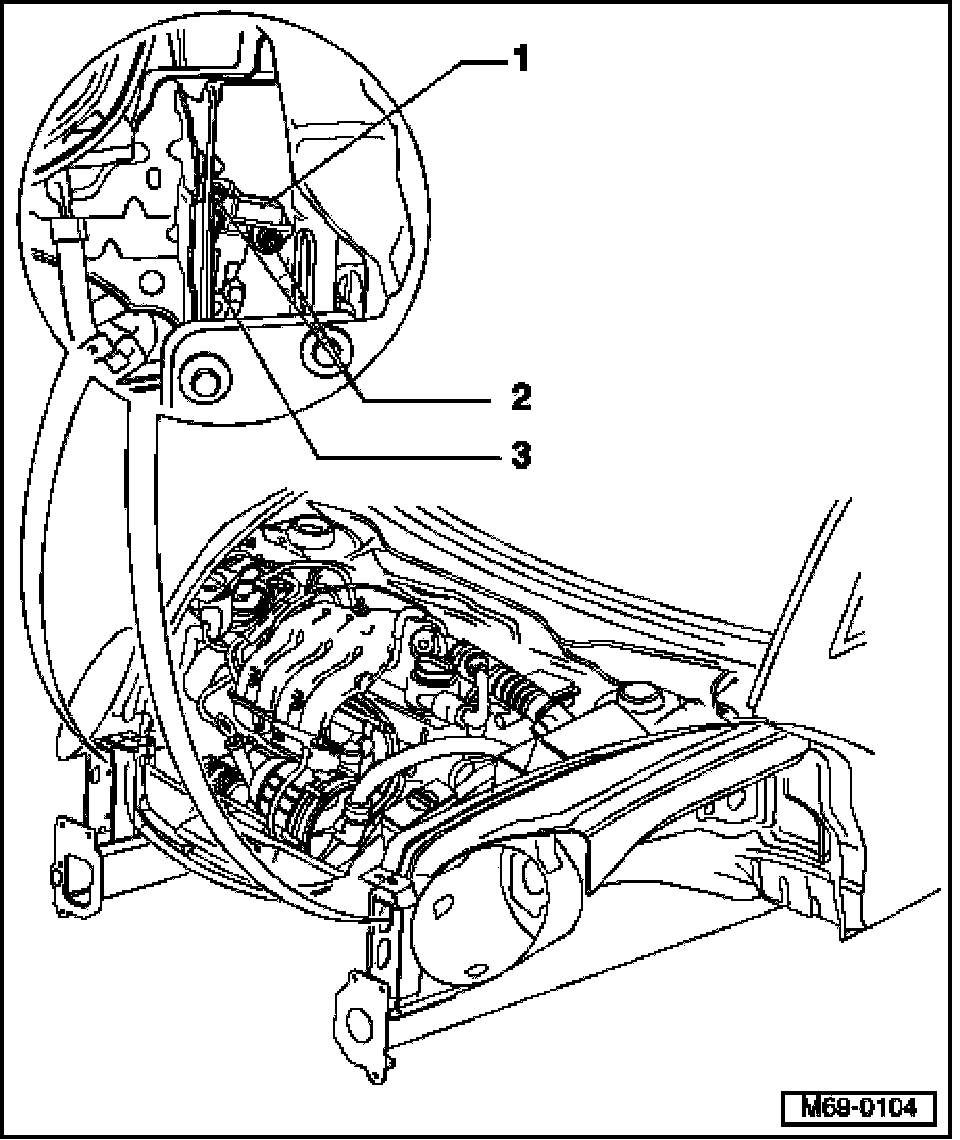

Front Airbag Sensor, Assembly Overview

1 Front left and right sensors
- In front longitudinal member
2 Combi-nut
- 6 Nm
3 Connector
