Rear Seatbelts - Assembly Overview (Convertible)

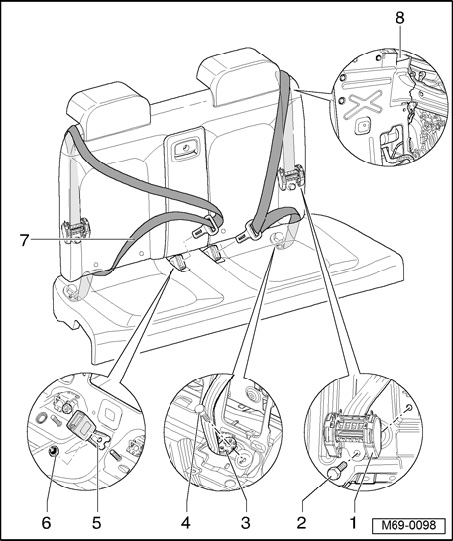

Rear Seatbelts - Assembly Overview (Convertible)







1 - Belt inertia reel
- Retaining tabs determine position of automatic belt retractors
- Removing:
- Remove rear backrest.
- Remove side trim.
- Remove hex bolt - 2 -.
- Remove hex bolt - 4 -.
- Thread seatbelt through belt relay - 8 -.

2 - Hex bolt
- 40 Nm

3 - Fitting
- Guide lug determines position of fitting
- Removing:
- Remove side trim.
- Remove hex bolt - 4 -.

4 - Hex bolt
- 40 Nm

5 - Rear belt latch
6 - Nut
- 40 Nm

7 - Belt
8 - Belt relay
- When installed, seatbelt must be threaded through rear panel from bottom to top
